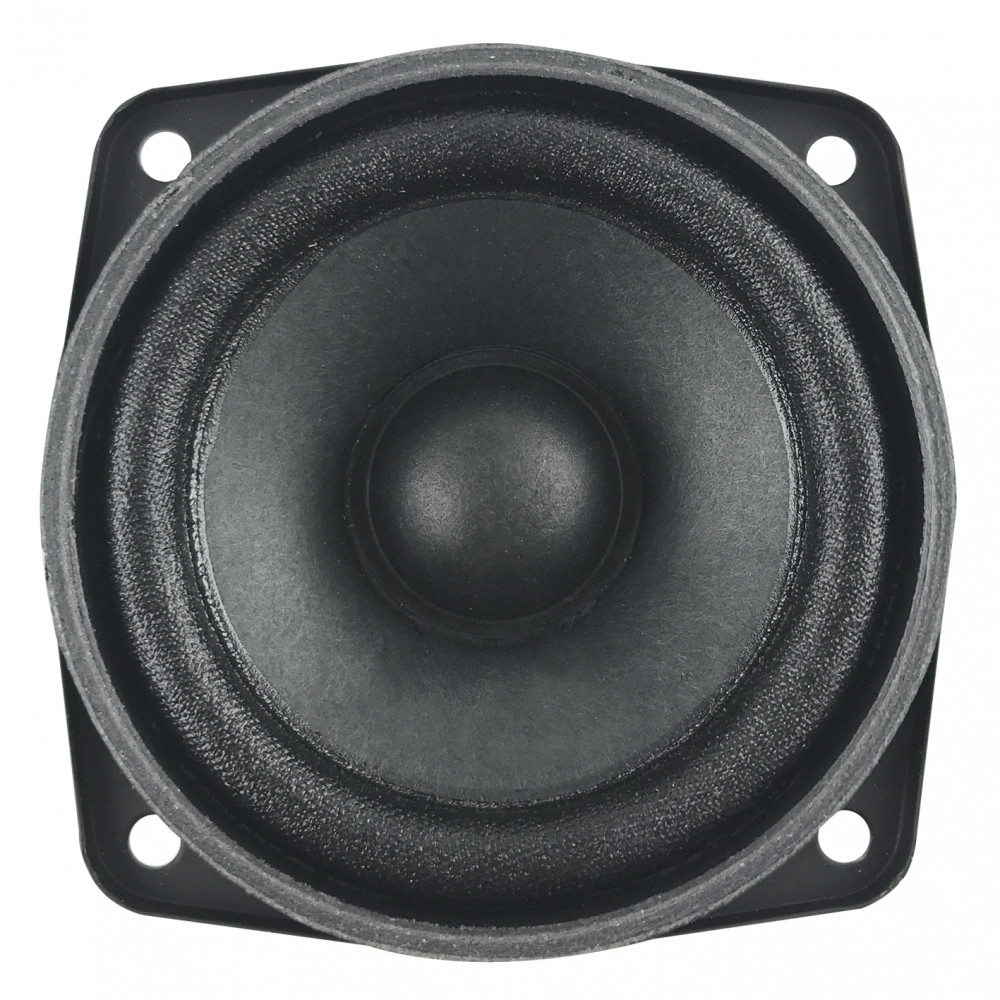

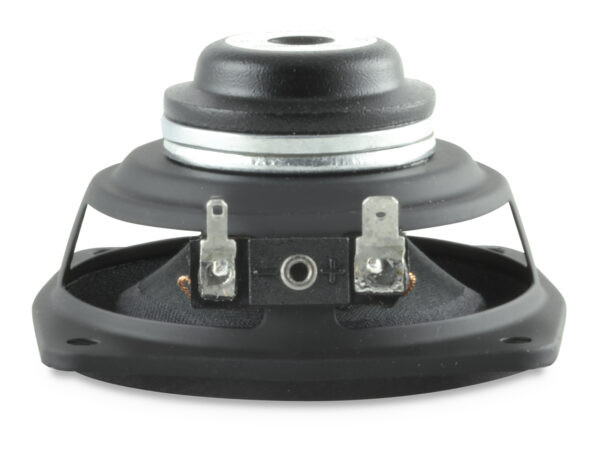

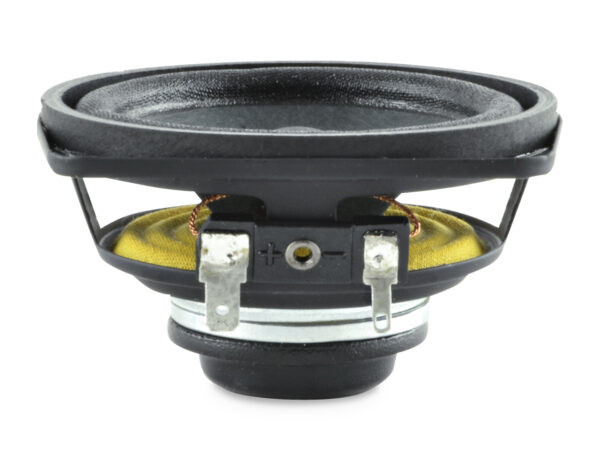

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

SICA 3 L 0,8 SL Full Range

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	80 mm / 3 in
Nominal Impedance	8 Ω
Rated Power AES	20 W
Continuos Program Power	40 W
Sensitivity @ 1W/1m	86.4 dB
Voice Coil Diameter	20 mm (0.8")
Voice Coil Winding Depth	4 mm
Magnetic Gap Depth	3 mm
Flux Density	1.30 T
Magnet Weight	16 g
Net Weight	0.1 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Epotex
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	79 mm
Baffle Cutout Diameter	73 mm
Mounting Holes	4 holes Ø4,5 on Ø84 mm
Total Depth	44.9 mm

Thiele/Small Parameters

Re	5.5 Ω
Qms	4.92
Qts	1.01
Cms	602 µm/N
Vas	0.8 l
X max	+/- 1.5 mm
N	0.18 %
Fs	145.0 Hz
Qes	1.28
Mms	2.0 g
Bxl	2.80 Tm
Sd	30.2 cm²
X var	+/- 2.5 mm
Le (1KHz)	0.11 mH

Info

Impedance, Z

8

Chassis diameter

3-3.5”

Article No.

SIC-Z000900C

Weight

100 g/db
