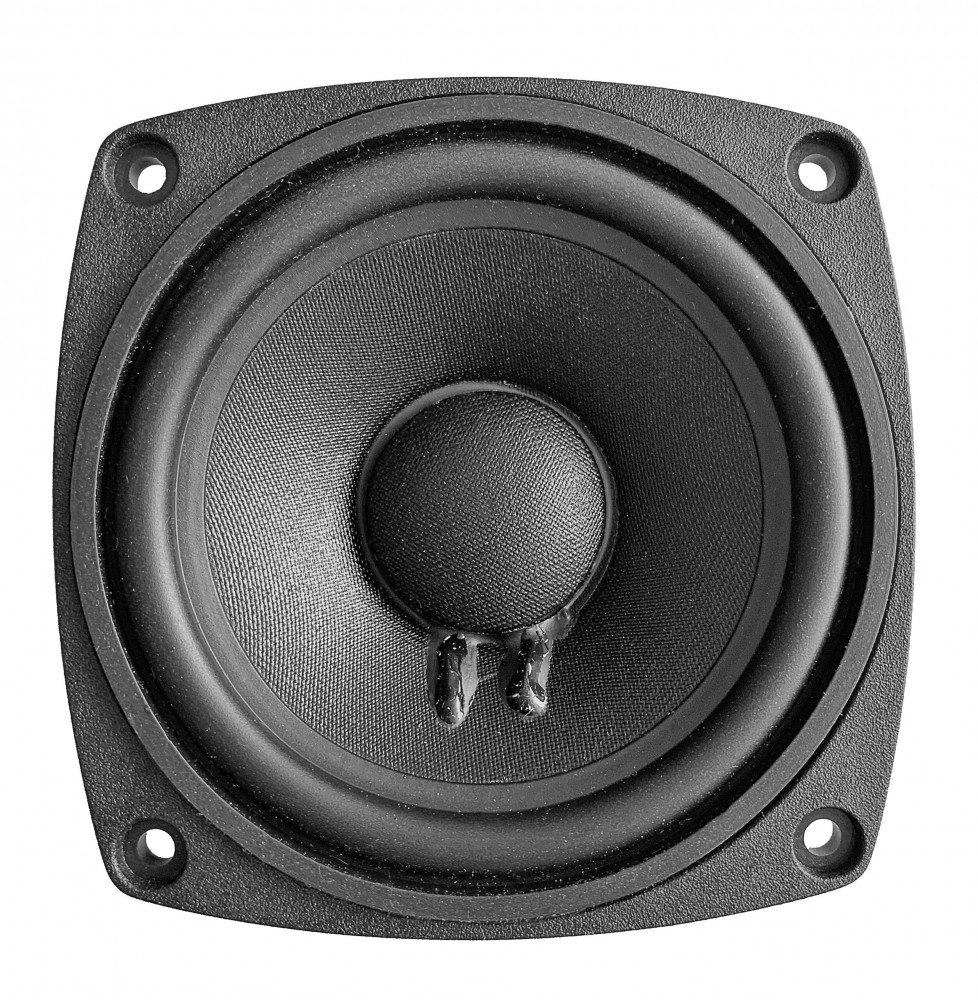

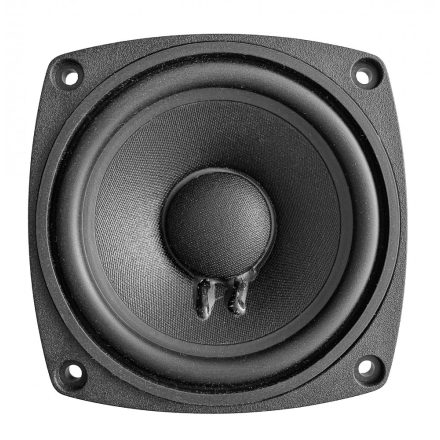

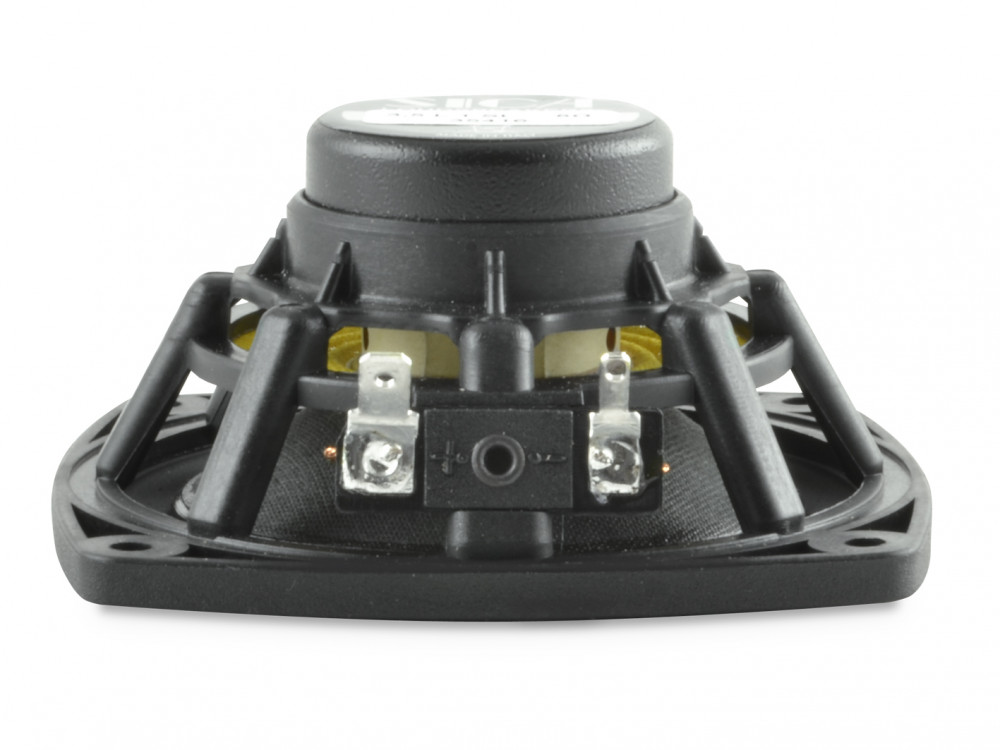

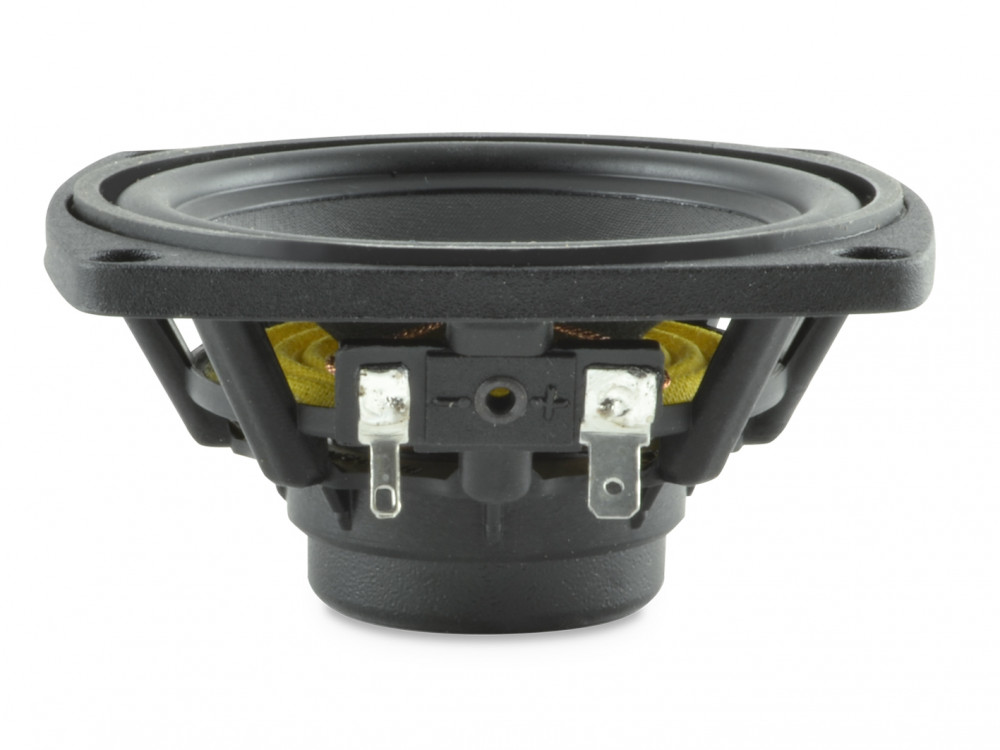

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

SICA 3,5 L 1 SL Full Range

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	88 mm / 3.5 in
Nominal Impedance	8 Ω
Rated Power AES	45 W
Continuos Program Power	90 W
Sensitivity @ 1W/1m	88.6 dB
Voice Coil Diameter	25 mm (1")
Voice Coil Winding Depth	6 mm
Magnetic Gap Depth	4 mm
Flux Density	1.20 T
Magnet Weight	42 g
Net Weight	0.2 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Nylon fiberglass doped
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber
Dust Dome Material	Treated Cloth

Mounting Information

Overall Diameter	88 mm
Baffle Cutout Diameter	81 mm
Mounting Holes	4 holes Ø4 on Ø98 mm
Total Depth	42.2 mm

Thiele/Small Parameters

Re	5.0 Ω
Qms	7.83
Qts	0.57
Cms	658 µm/N
Vas	1.4 l
X max	+/- 1.5 mm
N	0.27 %
Fs	108.0 Hz
Qes	0.61
Mms	3.3 g
Bxl	4.27 Tm
Sd	38.5 cm²
X var	+/- 3.0 mm
Le (1KHz)	0.12 mH

Info

Impedance, Z

8

Chassis diameter

3-3.5”

Article No.

SIC-Z000963C

Weight

200 g/db
