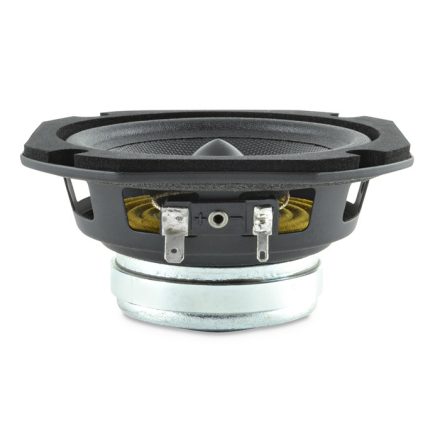

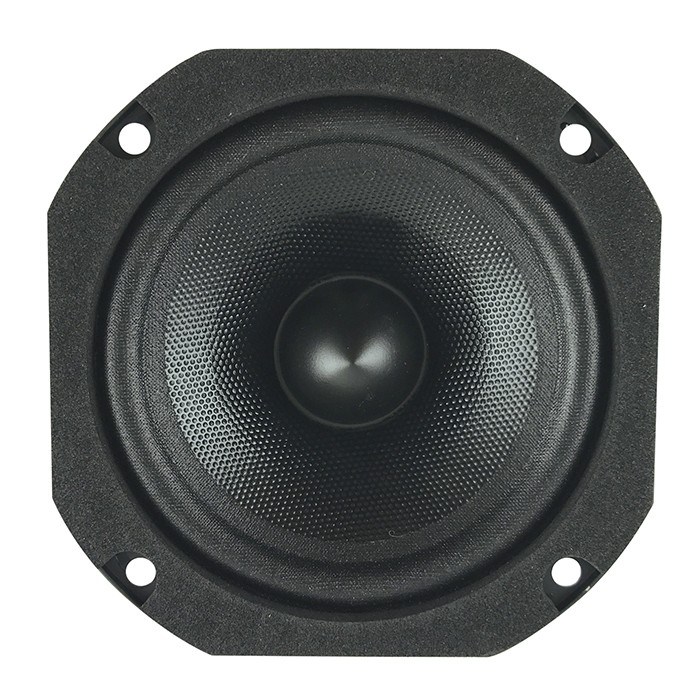

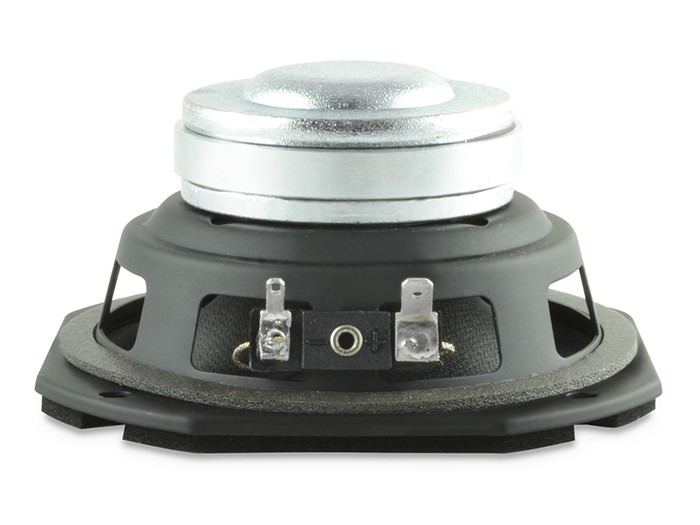

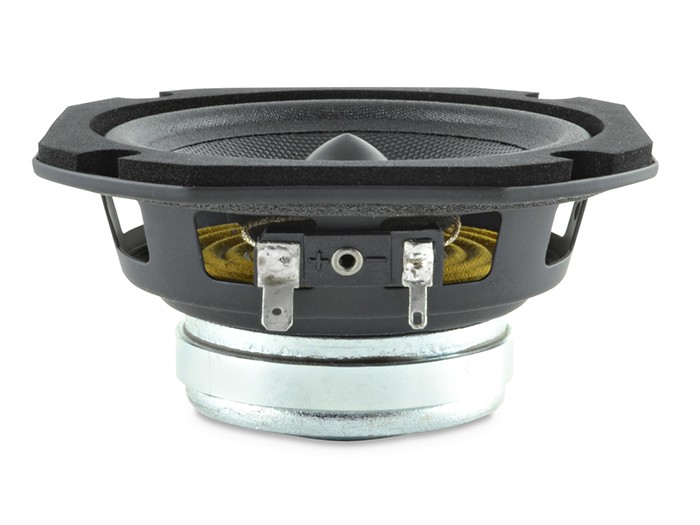

SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
53.58 € excl. VAT

SICA 4 L1 1 SL Full Range

SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
SICA 4 L1 1 SL Full Range
Manufacturer
Sica
Further data
In stock
53.58 € excl. VAT
Details
General Specifications
Nominal Diameter

104 x 104 mm / 4 in
Nominal Impedance

8 Ω
Rated Power AES

70 W
Continuos Program Power

140 W
Sensitivity @ 1W/1m

90.5 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

10 mm
Magnetic Gap Depth

5 mm
Flux Density

1.39 T
Magnet Weight

92 g
Net Weight

0.4 Kg
Constructive Characteristics
Magnet Type

Neodymium
Basket Material

Pressed Sheet Steel
Voice Coil Winding Material

Aluminium
Voice Coil Former Material

Aluminium
Cone Material

Paper
Cone Treatment

Surface Waterproof Treatment
Surround Material

Treated Cloth
Dust Dome Material

Polypropylene ogive
Mounting Information
Overall Diameter

104×104 mm
Baffle Cutout Diameter

90 mm
Mounting Holes

4 holes Ø5 on Ø106 mm
Total Depth

53.8 mm
Thiele/Small Parameters
Re

5.5 Ω
Qms

2.15
Qts

0.36
Cms

440 µm/N
Vas

1.2 l
X max

+/- 2.5 mm
N

0.46 %
Fs

120.0 Hz
Qes

0.44
Mms

4.0 g
Bxl

6.16 Tm
Sd

44.2 cm²
X var

+/- 4.1 mm
Le (1KHz)

0.15 mH
Info
Impedance, Z
8
Chassis diameter
4-4.5”
Article No.
SIC-Z001804C
Weight
400 g/db
Letöltések
Z001804.pdf
