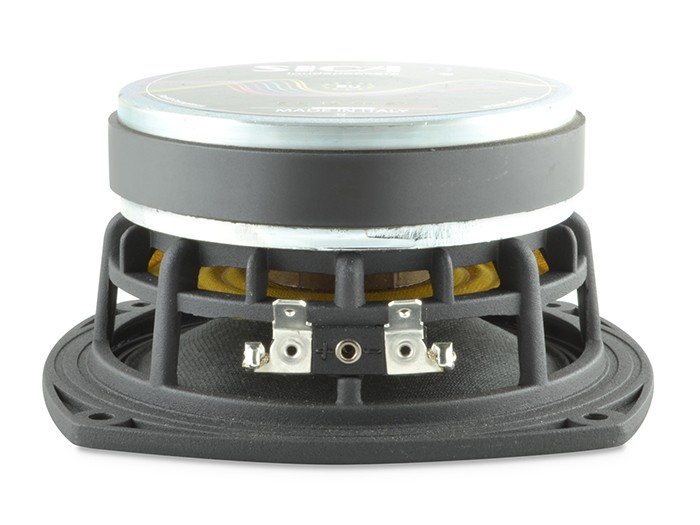

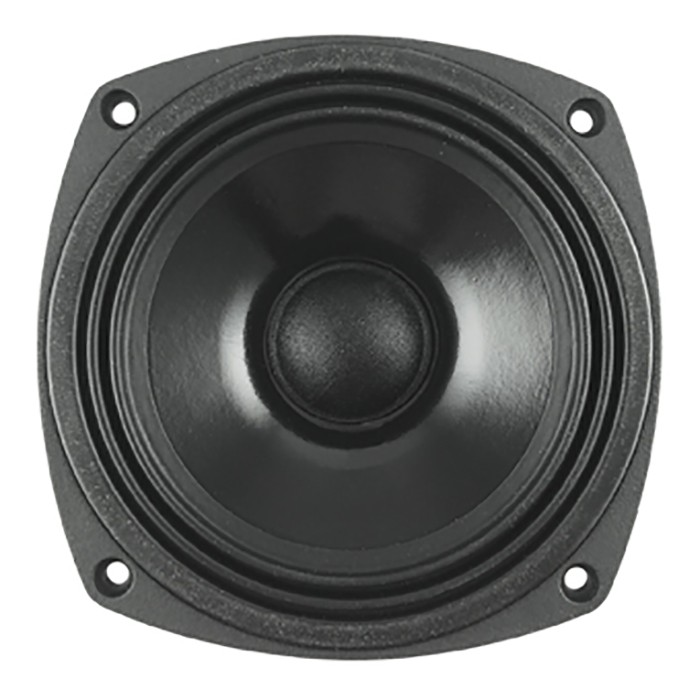

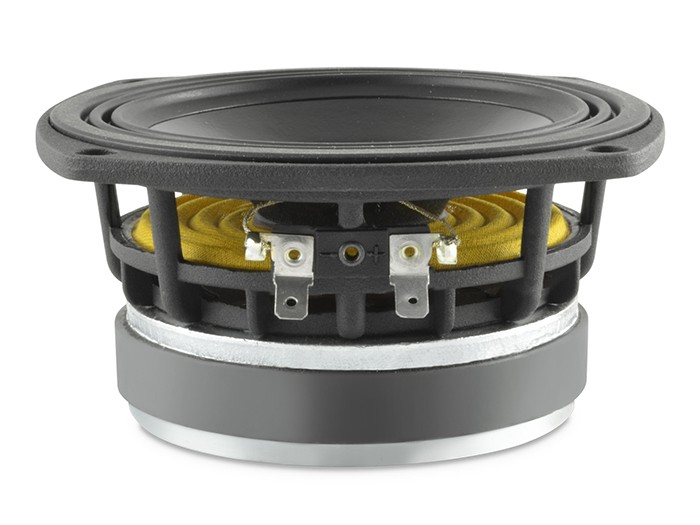

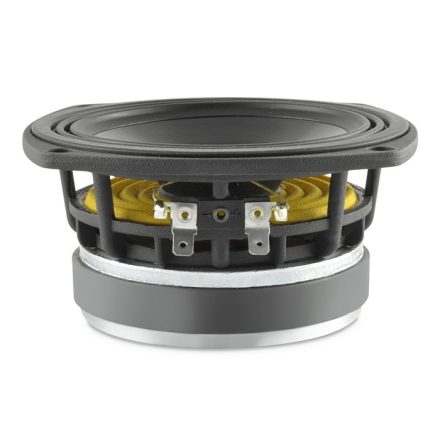

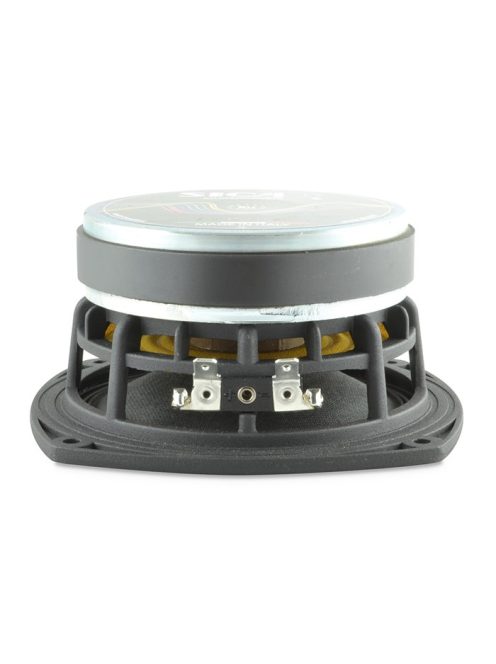

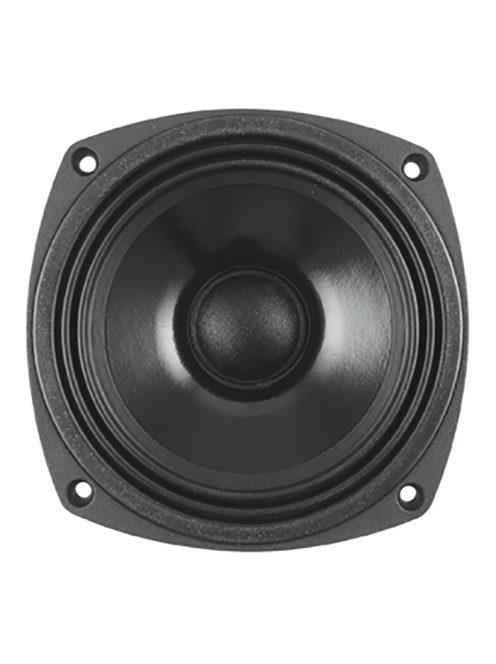

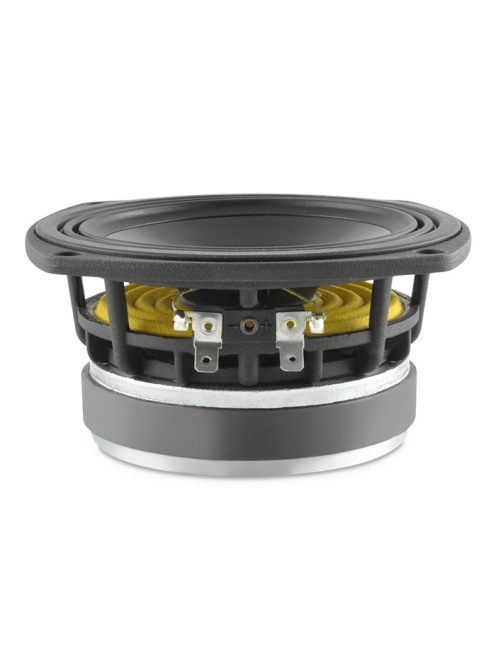

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

SICA 5 F 1,5 CP mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	132 mm / 5 in
Nominal Impedance	8 Ω
Rated Power AES	100 W
Continuos Program Power	200 W
Sensitivity @ 1W/1m	90.3dB
Voice Coil Diameter	38 mm (1.5")
Voice Coil Winding Depth	12 mm
Magnetic Gap Depth	6 mm
Flux Density	1.05 T
Magnet Weight	426 g
Net Weight	1.4 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber
Dust Dome Material	Treated Cloth

Mounting Information

Overall Diameter	132 mm
Baffle Cutout Diameter	113 mm
Mounting Holes	4 holes Ø5 on Ø139 mm
Total Depth	65.5 mm

Thiele/Small Parameters

Re	5.6 Ω
Qms	4.23
Qts	0.30
Cms	782 µm/N
Vas	6.8 l
X max	+/- 3.5 mm
N	0.46 %
Fs	61.0 Hz
Qes	0.33
Mms	8.7 g
Bxl	7.57 Tm
Sd	78.5 cm²
X var	+/- 6.0 mm
Le (1KHz)	0.48 mH

Info

Impedance, Z

8

Chassis diameter

5-5.5”

Article No.

SIC-Z002652C

Weight

1.4 kg/db
