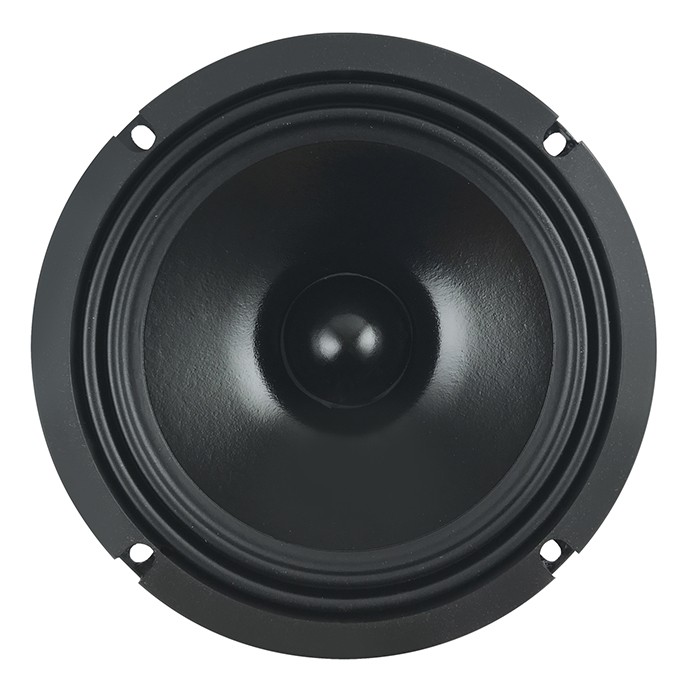

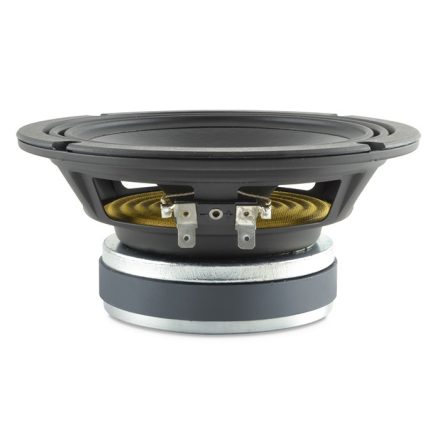

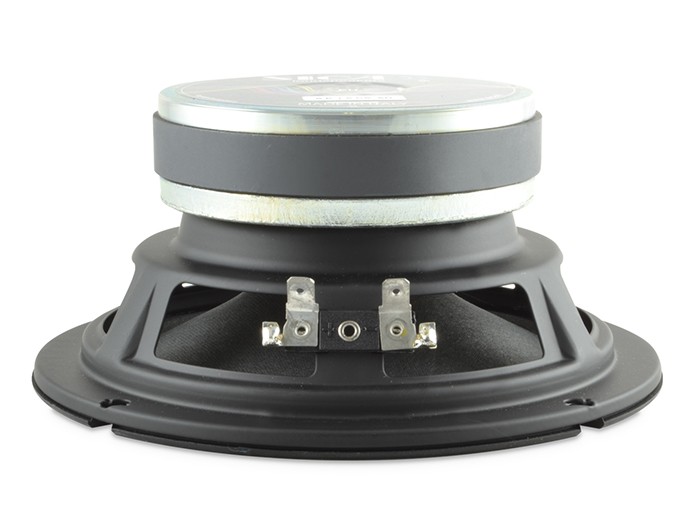

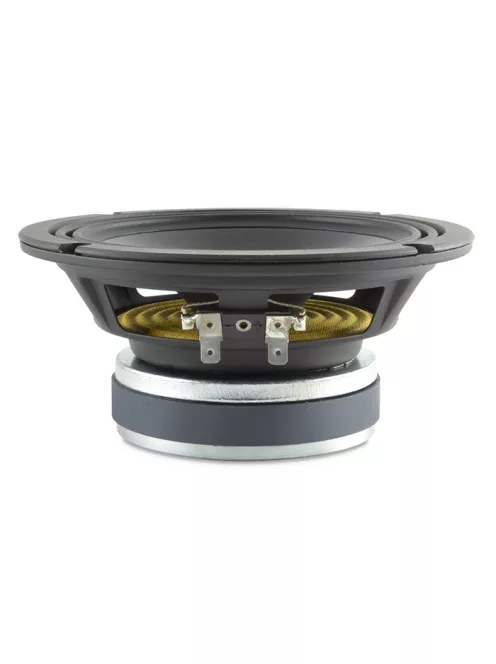

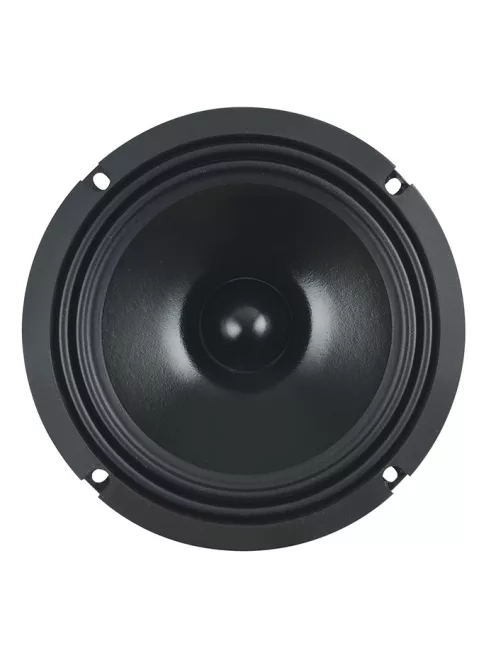

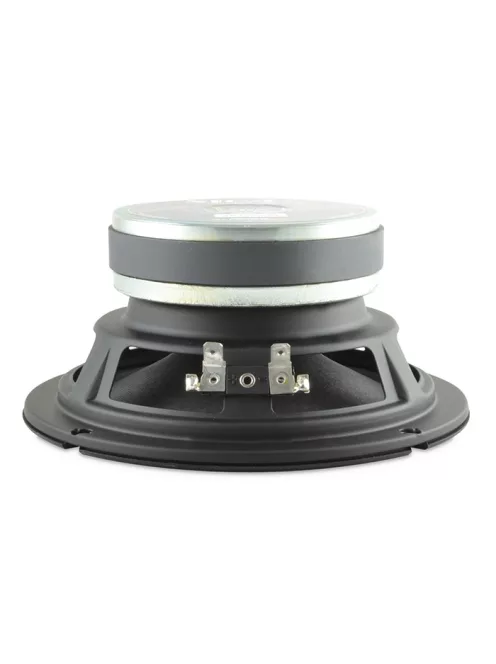

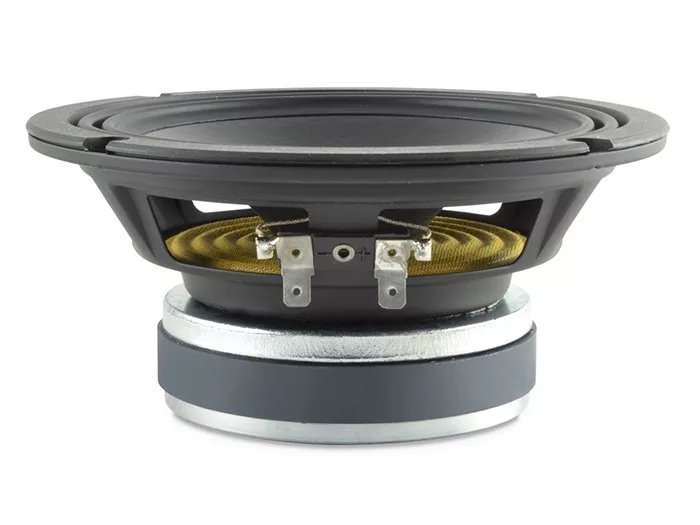

SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
45.92 € excl. VAT

SICA 6 E 1,5 CS mid-woofer 8Ω

SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
SICA 6 E 1,5 CS mid-woofer 8Ω
Manufacturer
Sica
Further data
In stock
45.92 € excl. VAT
Details
General Specifications
Nominal Diameter

164 mm / 6 in
Nominal Impedance

8 Ω
Rated Power AES

100 W
Continuos Program Power

200 W
Sensitivity @ 1W/1m

91.5 dB
Voice Coil Diameter

38 mm (1.5")
Voice Coil Winding Depth

11 mm
Magnetic Gap Depth

8 mm
Flux Density

1.00 T
Magnet Weight

426 g
Net Weight

1.5 Kg
Constructive Characteristics
Magnet Type

Ferrite
Basket Material

Pressed Sheet Steel
Voice Coil Winding Material

Copper
Voice Coil Former Material

Aluminium
Cone Material

Paper
Cone Treatment

Surface Waterproof Treatment
Surround Material

Rubber
Dust Dome Material

Paper Ogive

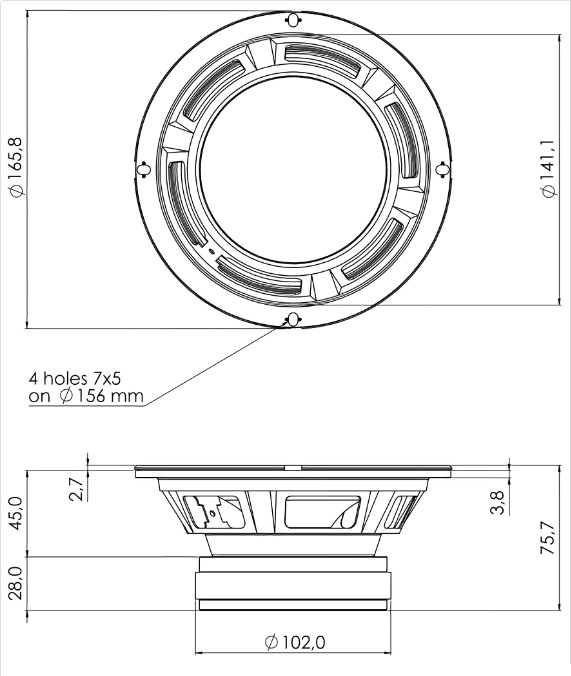

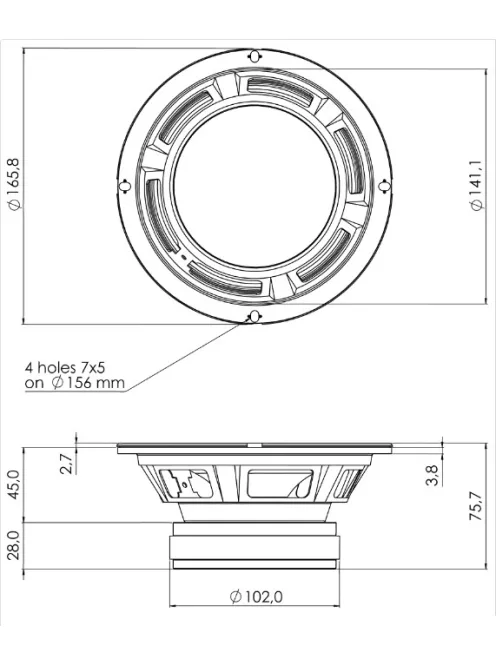

Mounting Information
Overall Diameter

165.8 mm
Baffle Cutout Diameter

142 mm
Mounting Holes

4 holes 5×7 on Ø156 mm
Total Depth

75.7 mm
Thiele/Small Parameters
Re

5.0 Ω
Qms

2.40
Qts

0.38
Cms

529 µm/N
Vas

11.3 l
X max

+/- 2.5 mm
N

0.53 %
Fs

60.0 Hz
Qes

0.45
Mms

13.3 g
Bxl

7.50 Tm
Sd

122.7 cm²
X var

+/- 4.5 mm
Le (1KHz)

0.61 mH
Info
Impedance, Z
8
Chassis diameter
6-6.5”
Article No.
SIC-Z004035C
Weight
1.5 kg/db
