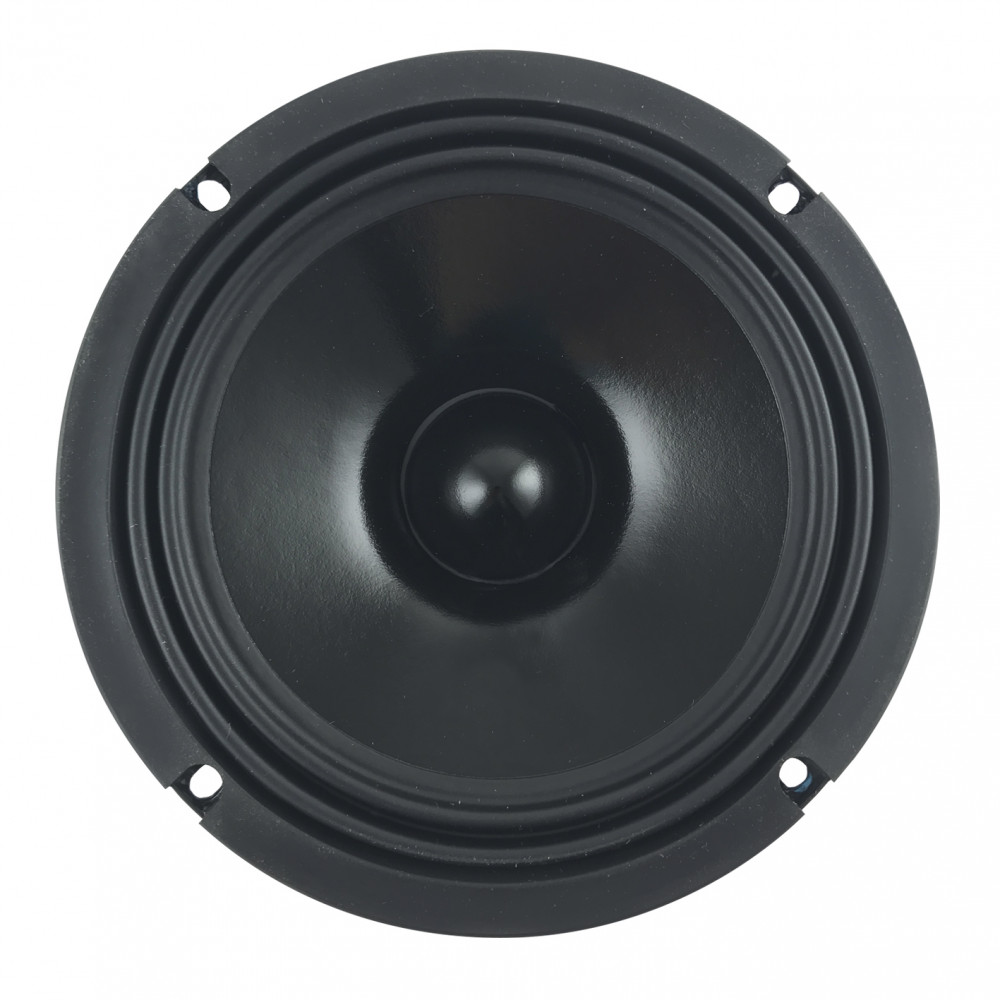

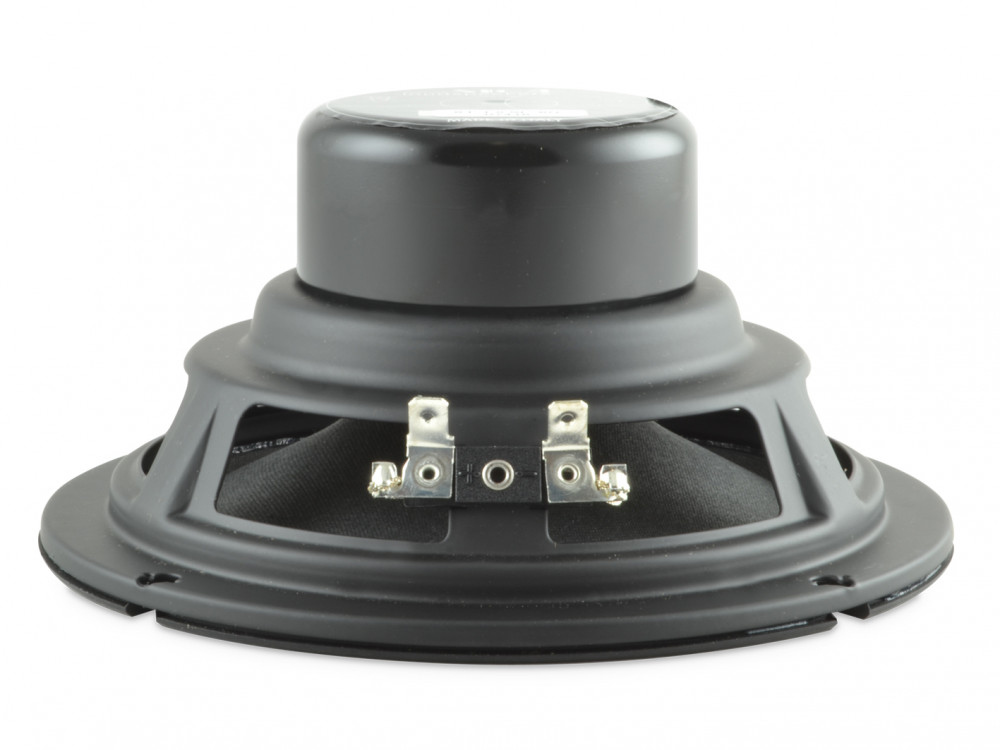

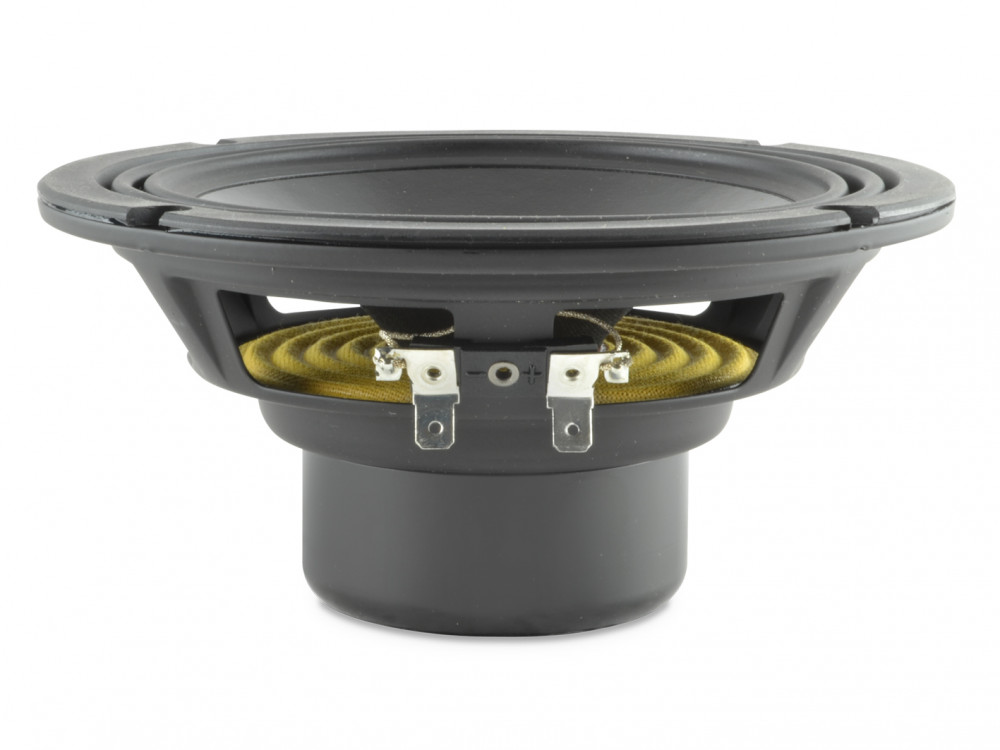

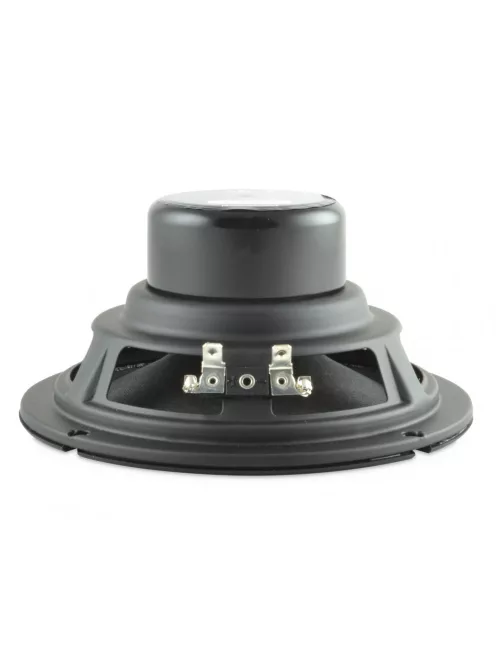

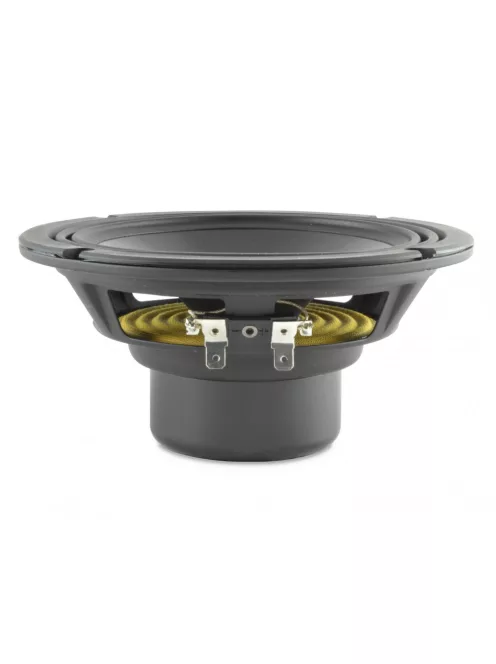

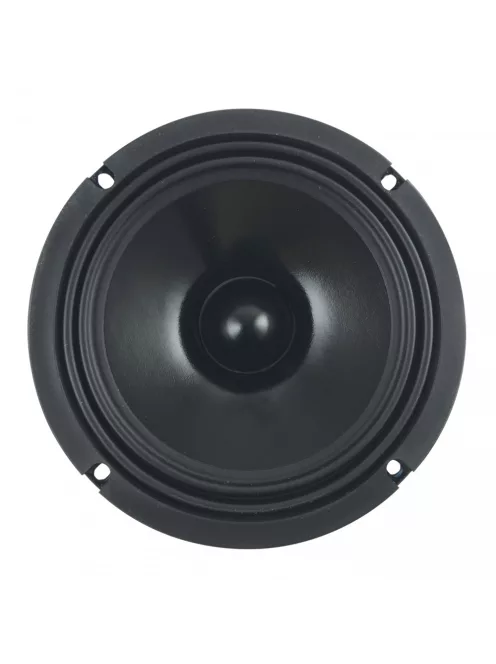

SICA 6 L 1,5 SL mid-woofer

SICA 6 L 1,5 SL mid-woofer

SICA 6 L 1,5 SL mid-woofer

SICA 6 L 1,5 SL mid-woofer

SICA 6 L 1,5 SL mid-woofer

SICA 6 L 1,5 SL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	164 mm / 6 in
Nominal Impedance	8 Ω
Rated Power AES	130 W
Continuos Program Power	260 W
Sensitivity @ 1W/1m	91.0 dB
Voice Coil Diameter	38 mm (1.5")
Voice Coil Winding Depth	11 mm
Magnetic Gap Depth	6 mm
Flux Density	1.14 T
Magnet Weight	98 g
Net Weight	0.9 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Aluminium
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber
Dust Dome Material	Paper Ogive

Mounting Information

Overall Diameter	165.8 mm
Baffle Cutout Diameter	142 mm
Mounting Holes	4 holes 5×7 on Ø156 mm
Total Depth	79.2 mm

Thiele/Small Parameters

Re	5.0 Ω
Qms	2.31
Qts	0.39
Cms	516 µm/N
Vas	11.0 l
X max	+/- 2.5 mm
N	0.47 %
Fs	59.0 Hz
Qes	0.47
Mms	14.1 g
Bxl	7.50 Tm
Sd	122.7 cm²
X var	+/- 3.9 mm
Le (1KHz)	0.48 mH

Info

Impedance, Z

8

Chassis diameter

6-6.5”

Article No.

SIC-Z004059C

Weight

900 g/db
