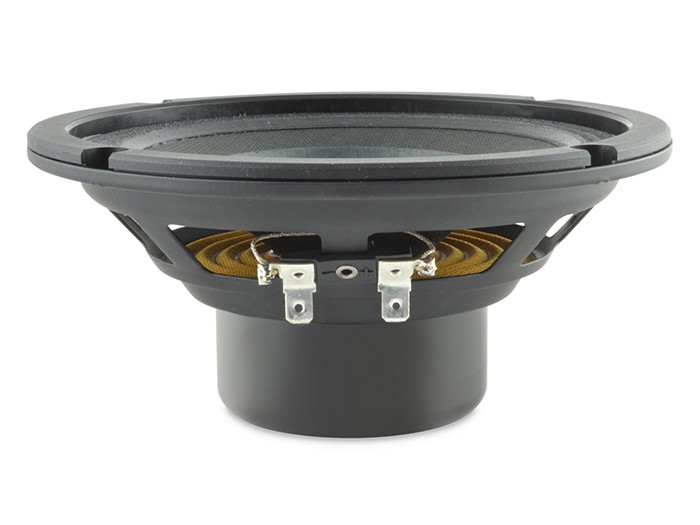

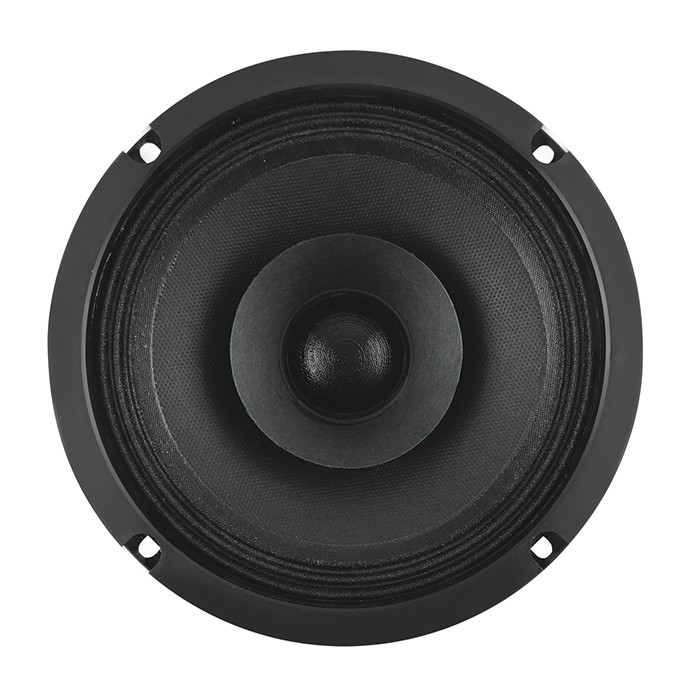

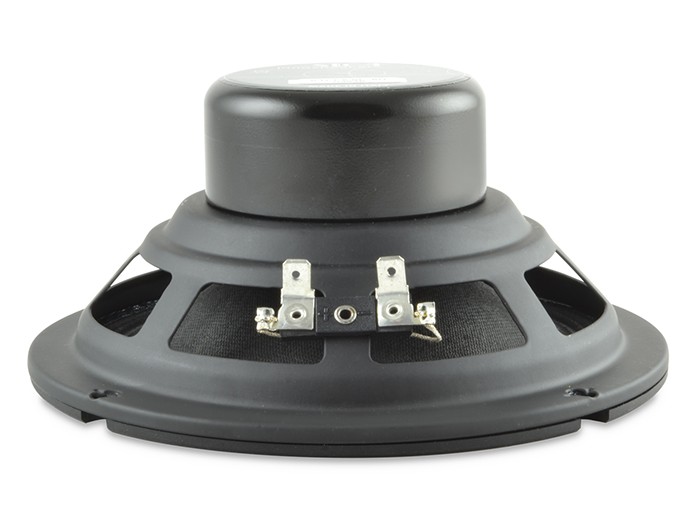

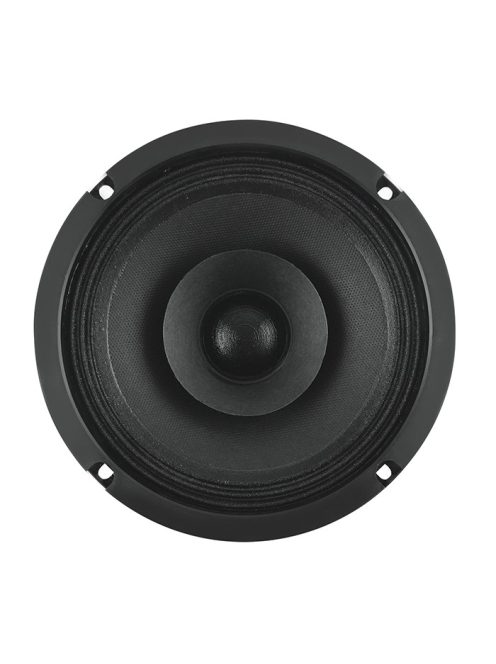

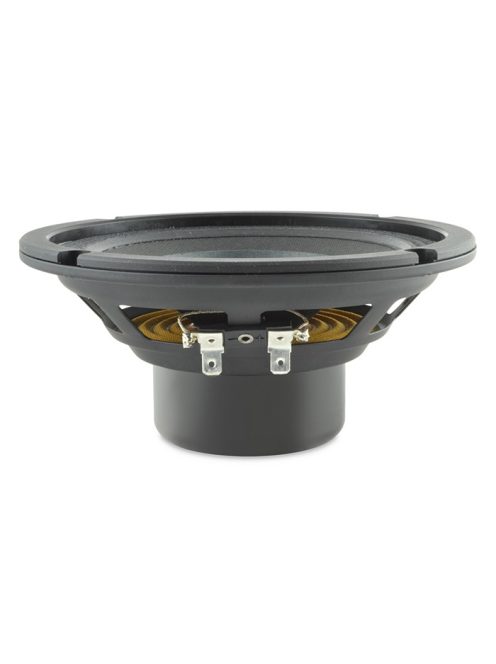

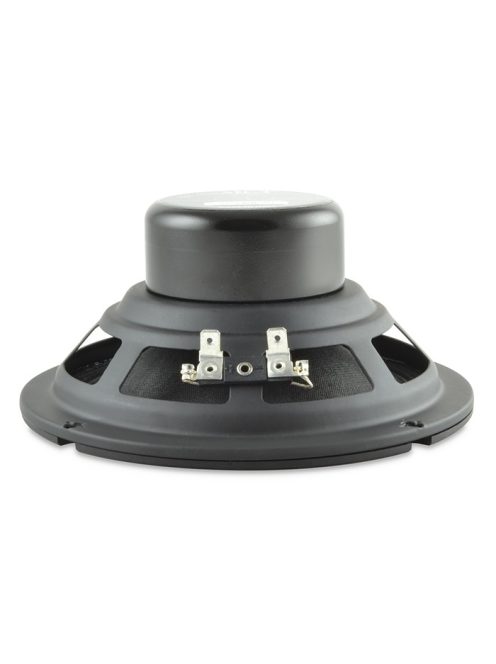

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

SICA 6 D 1,5 SL Full Range

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	165 mm / 6 in
Nominal Impedance	8 Ω
Rated Power AES	130 W
Continuos Program Power	260 W
Sensitivity @ 1W/1m	93.9 dB
Voice Coil Diameter	38 mm (1.5")
Voice Coil Winding Depth	9 mm
Magnetic Gap Depth	6 mm
Flux Density	1.20 T
Magnet Weight	126 g
Net Weight	0.9 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Aluminium
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Treated Cloth

Mounting Information

Overall Diameter	165.5 mm
Baffle Cutout Diameter	143 mm
Mounting Holes	4 holes 5×7 on Ø155 mm
Total Depth	75.6 mm

Thiele/Small Parameters

Re	5.0 Ω
Qms	2.65
Qts	0.46
Cms	187 µm/N
Vas	4.0 l
X max	+/- 1.5 mm
N	0.92 %
Fs	110.0 Hz
Qes	0.55
Mms	11.2 g
Bxl	8.35 Tm
Sd	122.7 cm²
X var	+/- 4.0 mm
Le (1KHz)	0.22 mH

Info

Impedance, Z

8

Chassis diameter

6-6.5”

Article No.

SIC-Z004065C

Weight

900 g/db
