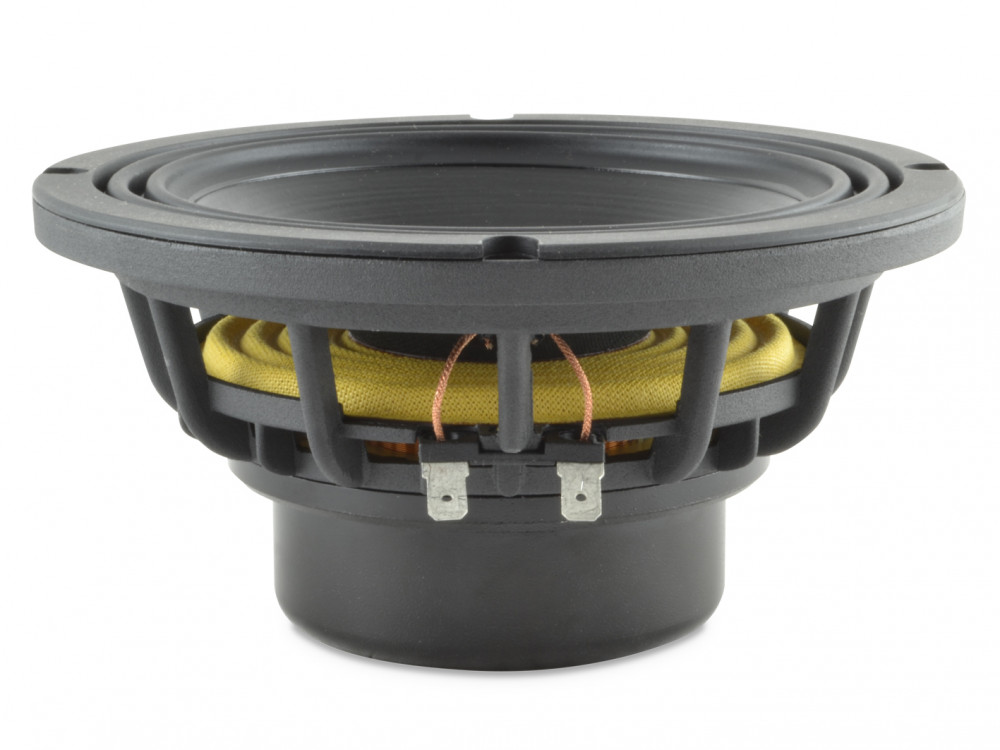

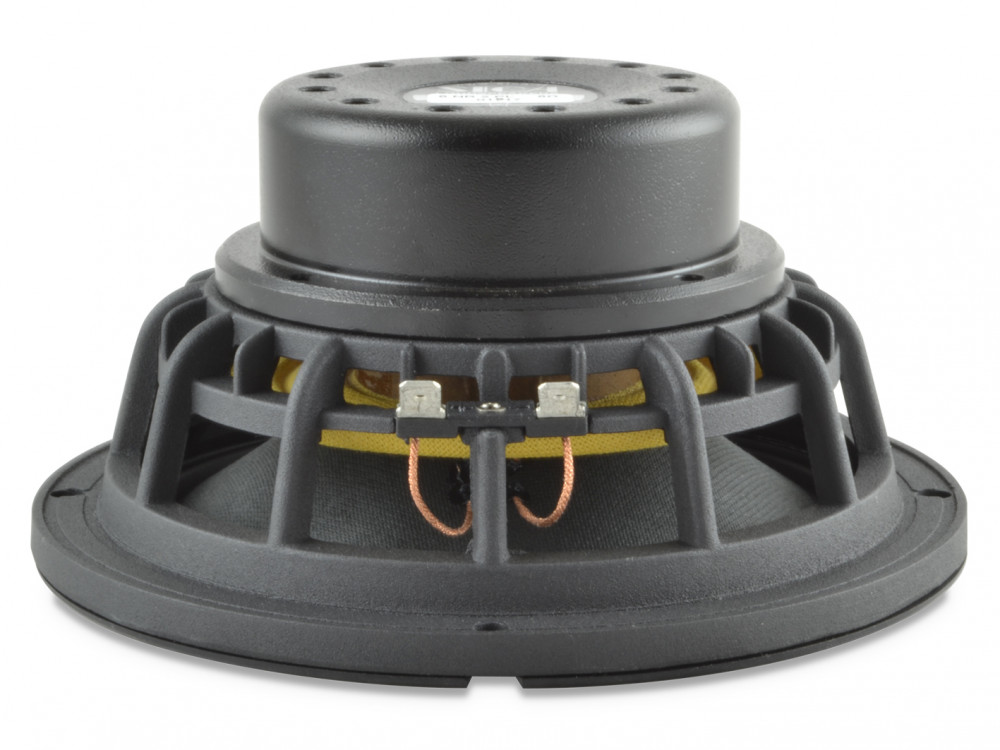

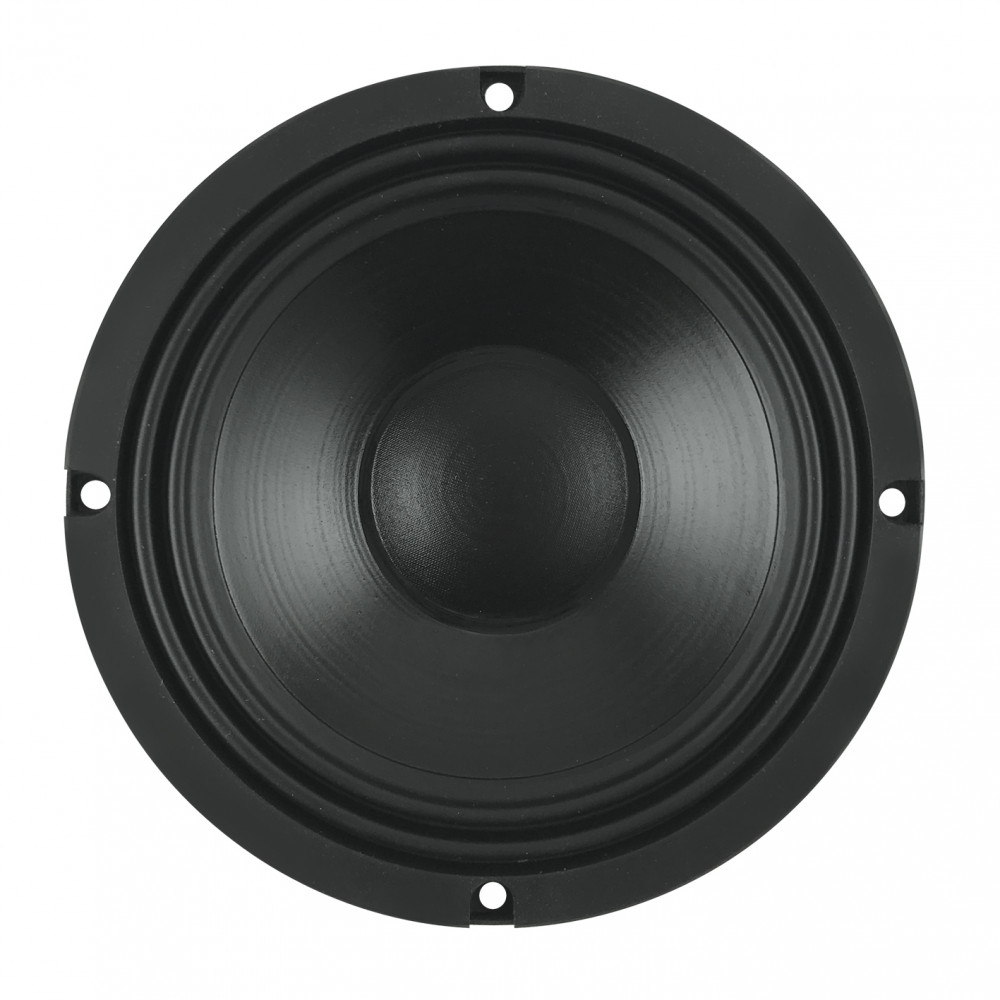

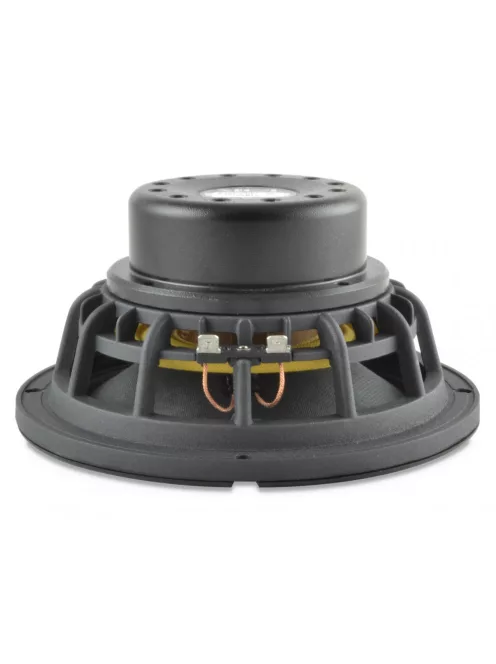

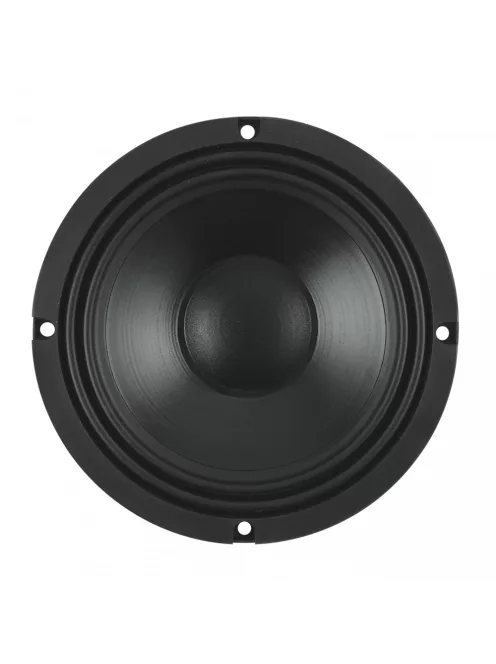

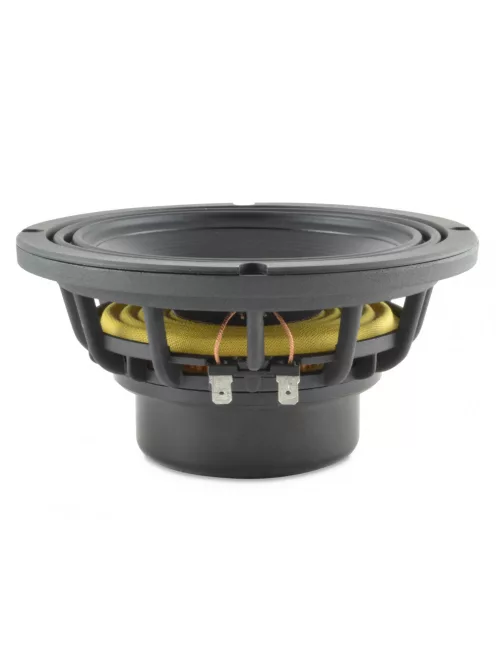

SICA 6 NR 2 PL mid-woofer

SICA 6 NR 2 PL mid-woofer

SICA 6 NR 2 PL mid-woofer

SICA 6 NR 2 PL mid-woofer

SICA 6 NR 2 PL mid-woofer

SICA 6 NR 2 PL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	166 mm / 6 in
Nominal Impedance	8 Ω
Rated Power AES	200 W
Continuos Program Power	400 W
Sensitivity @ 1W/1m	91.4 dB
Voice Coil Diameter	50 mm (2")
Voice Coil Winding Depth	16 mm
Magnetic Gap Depth	8 mm
Flux Density	1.20 T
Magnet Weight	160 g
Net Weight	1.5 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	166 mm
Baffle Cutout Diameter	143 mm
Mounting Holes	4 holes 5×6 on Ø155 mm
Total Depth	82.8 mm

Thiele/Small Parameters

Re	5.6 Ω
Qms	6.05
Qts	0.33
Cms	441 µm/N
Vas	9.4 l
X max	+/- 4.0 mm
N	0.58 %
Fs	60.5 Hz
Qes	0.34
Mms	15.7 g
Bxl	9.86 Tm
Sd	122.7 cm²
X var	+/- 6.5 mm
Le (1KHz)	0.51 mH

Info

Impedance, Z

8

Chassis diameter

6-6.5”

Article No.

SIC-Z004068C

Weight

1.5 kg/db
