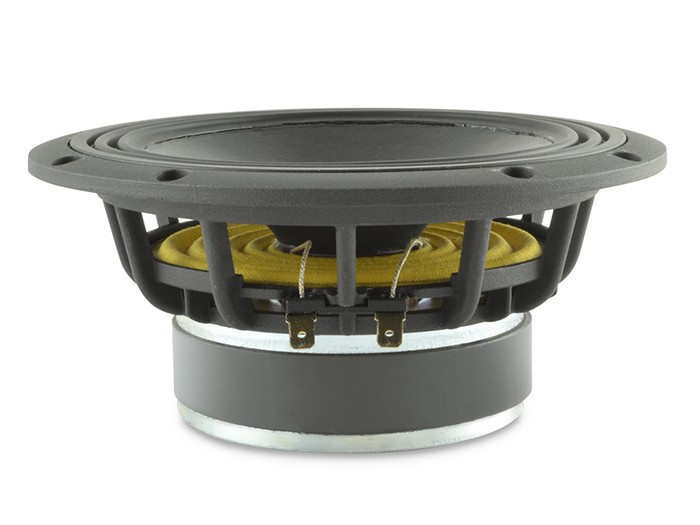

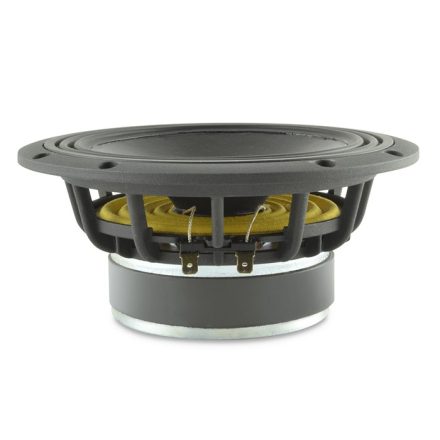

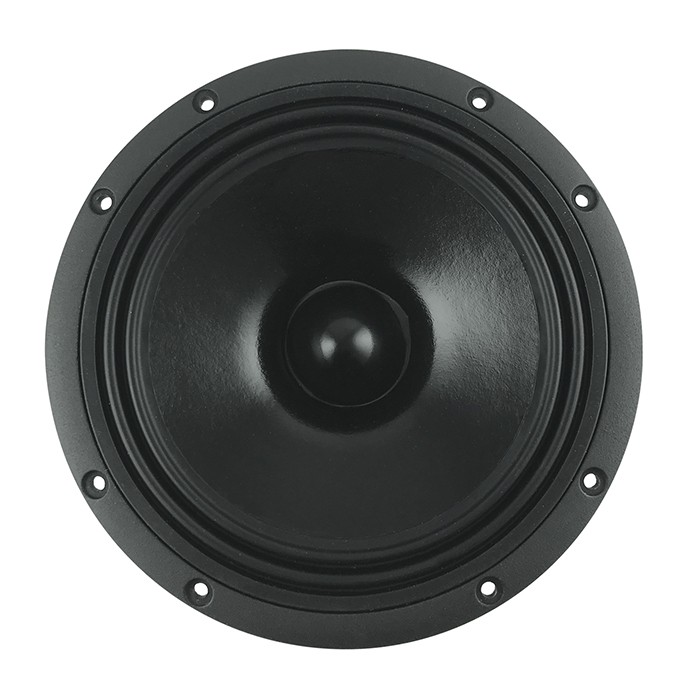

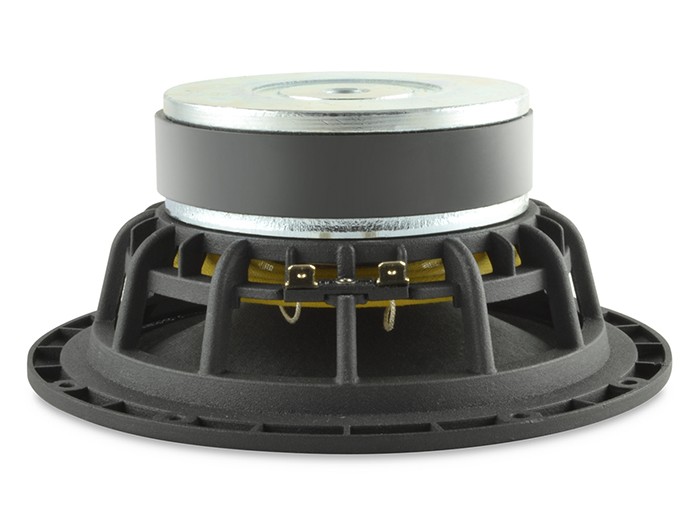

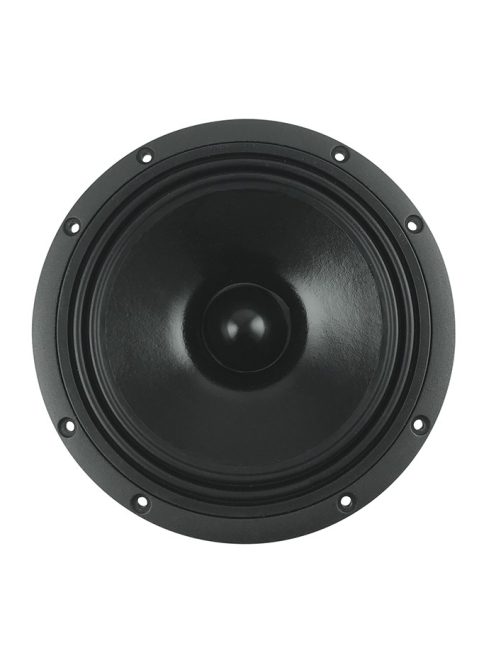

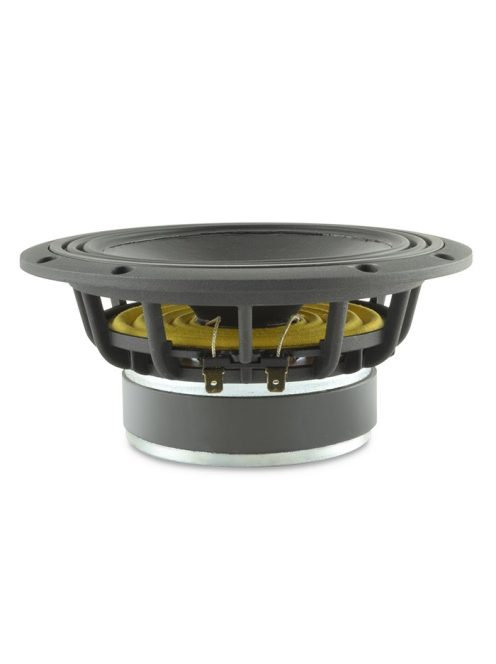

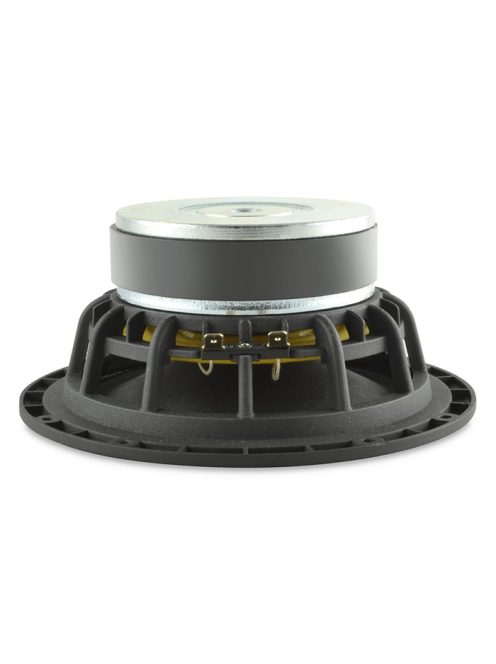

SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
76.98 € excl. VAT

SICA 6,5 H 1,5 CP mid-woofer

SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
SICA 6,5 H 1,5 CP mid-woofer
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Orderable
76.98 € excl. VAT
Details
HIGHLIGHTS
Studio Monitor
Nominal overall diameter 6.5"
Nominal voice coil diameter 1.5"
Magnet material Ferrite
Basket material Aluminium Die-Cast

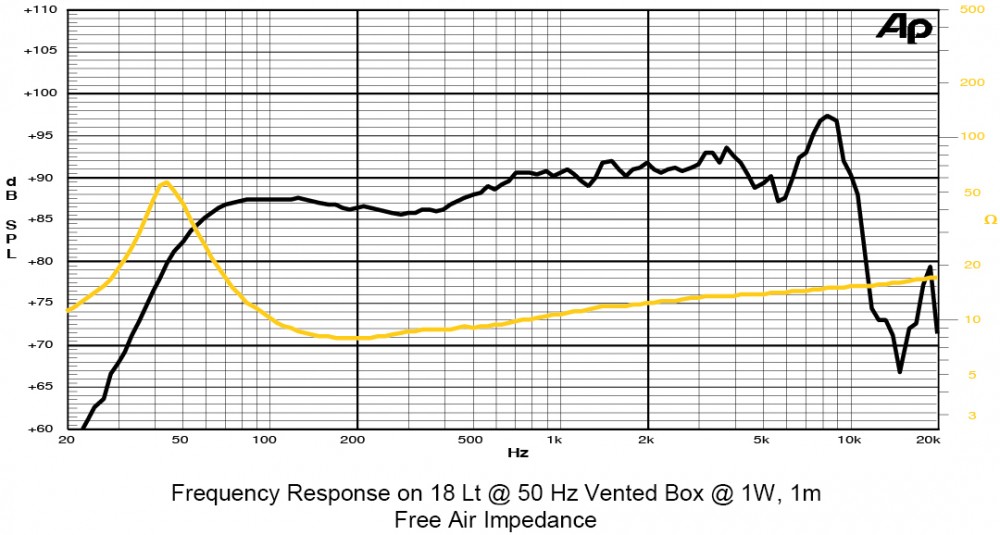

Frequency range 40-4500 Hz
Power 240 W
Sensitivity 89.4 dB
GENERAL SPECIFICATIONS
Nominal Diameter 174 mm / 6.5 in
Nominal Impedence 8 Ω
Rated Power AES (1) 120 W
Continuous Program Power (2) 240 W
Sensitivity @ 1W/1m (3) 89.4 dB
Voice Coil Diameter 38 mm / 1.5 in
Voice Coil Winding Depth 15 mm
Magnetic Gap Depth 6 mm
Flux Density 0.90 T
Magnet Weight 515 g
Net Weight 1.6 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet Ferrite
Basket Material Aluminium Die-Cast
Voice Coil Winding Material Copper
Voice Coil Former Material Kapton
Cone Material Paper
Cone Treatment Surface Waterproof Treatment
Surround Material Rubber
Dust Dome Material Paper Ogive
MOUNTING INFORMATION
Overall Diameter 174 mm
Baffle Cutout Diameter 143 mm
Mounting Holes 8 holes Ø5.5 mm on Ø164.2 mm
Total Depth 77.5 mm
THIELE/SMALL PARAMETERS
Re 6.1 Ω
Qms 5.21
Qts 0.42
Cms 945 µm/N
Vas 20.2 l
X max +/- 6.0 mm
N 0.40 %
Fs 45.4 Hz
Qes 0.46
Mms 13.0 g
Bxl 7.02 Tm
Sd 122.7 cm²
X var +/- 8.5 mm
Le (1KHz) 0.48 mH
Info
Impedance, Z
8
Chassis diameter
6-6.5”
Article No.
SIC-Z004100C
Weight
1.6 kg/db
