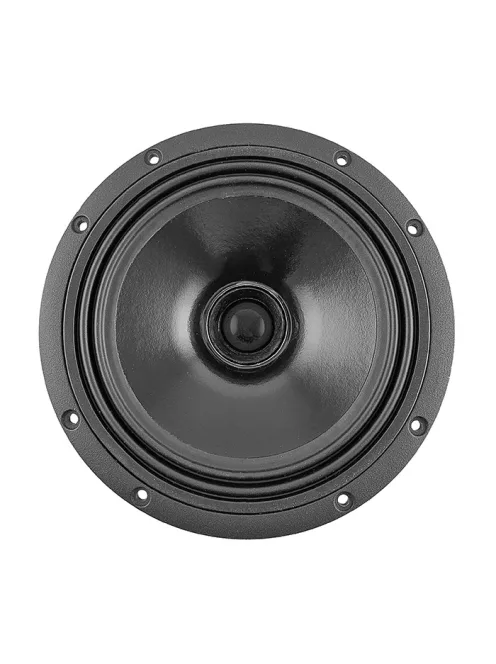

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

SICA 6,5 C 1,5 CP Coaxial 8+8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

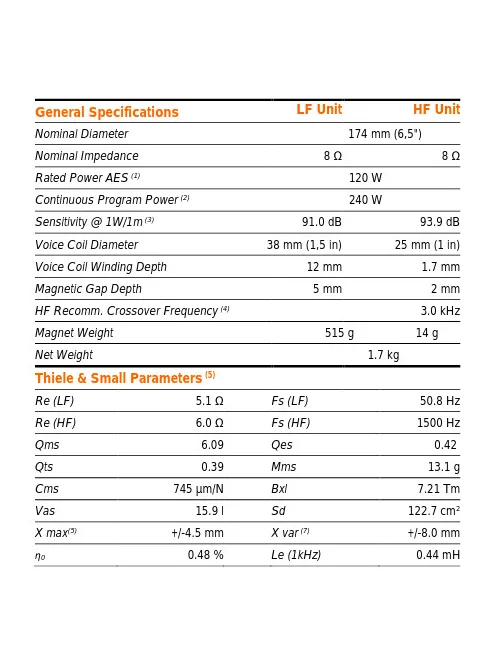

General Specifications

Nominal Diameter	174 mm / 6.5 in
Nominal Impedance LF	8 Ω
Nominal Impedance HF	8 Ω
Sensitivity @ 1W/1m LF	91.0 dB
Sensitivity @ 1W/1m HF	93.9 dB
Voice Coil Diameter LF	38 mm (1.5")
Voice Coil Diameter HF	25 mm (1")
Voice Coil Winding Depth LF	12 mm
Voice Coil Winding Depth HF	1.7 mm
Magnetic Gap Depth LF	5 mm
Magnetic Gap Depth HF	2 mm
HF Recommended Crossover Frequency	3.0 kHz
Magnet Weight LF	515 g
Magnet Weight HF	14 g
Net Weight	1.7 Kg
Rated Power AES	120 W
Continuos Program Power	240 W

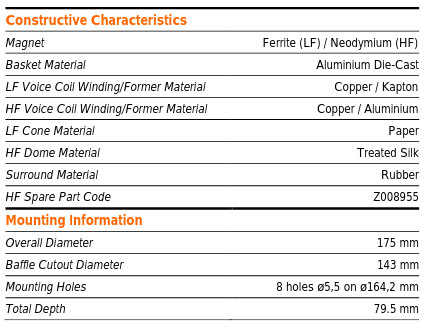

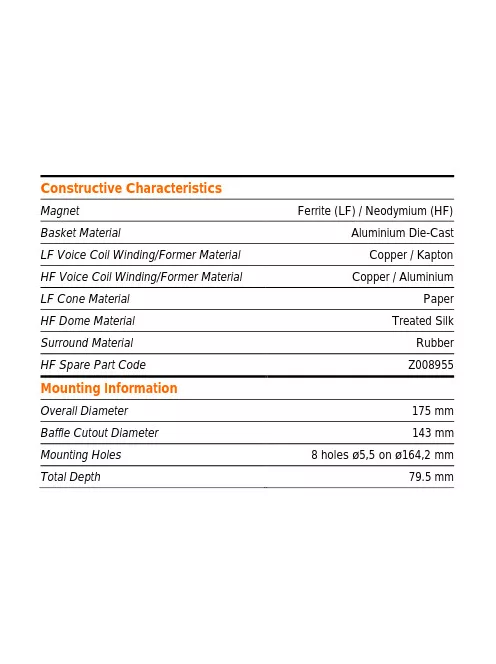

Constructive Characteristics

Magnet Type	Ferrite (LF) Neodymium (HF)
Basket Material	Ferrite (LF) / Neodymium (HF)
Surround Material	Rubber
LF Voice Coil Winding/Former Material	Copper / Kapton
HF Voice Coil Winding/Former Material	Copper / Aluminium
LF Cone Material	Paper
HF Dome Material	Treated Silk
HF Spare Parts Code	Z008955

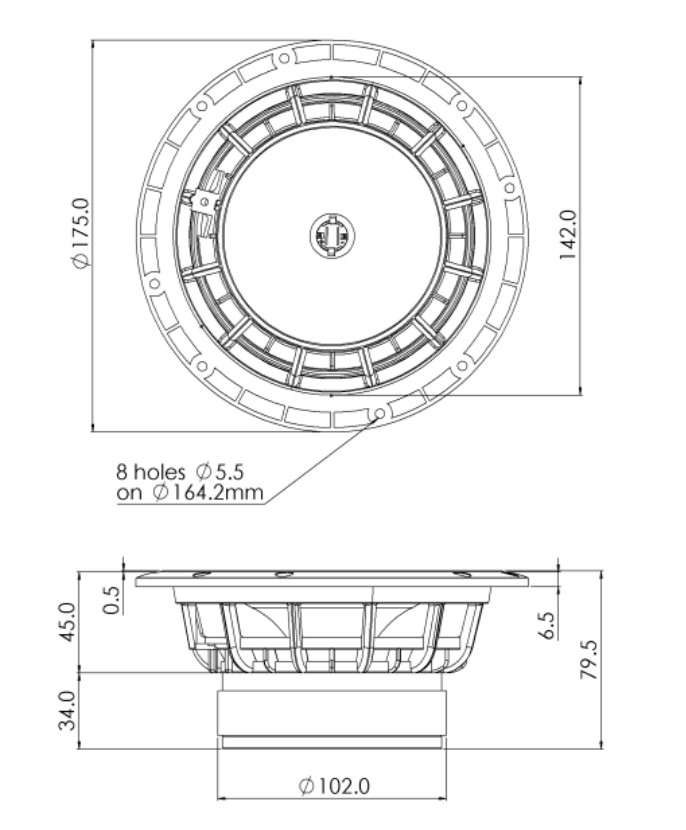

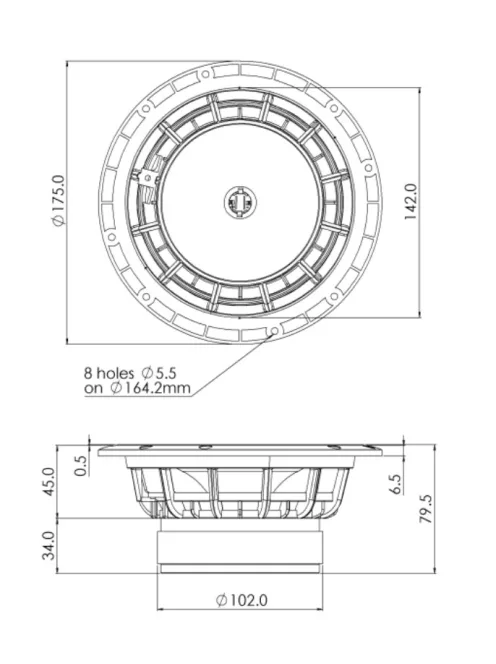

Mounting Information

Overall Diameter	175 mm
Baffle Cutout Diameter	143 mm
Mounting Holes	8 holes Ø5.5 on Ø164.2 mm
Total Depth	79.5 mm

Thiele/Small Parameters

Qms	6.09
Qts	0.39
Cms	745 µm/N
Vas	15.9 l
X max	+/- 4.5 mm
N	0.48 %
Qes	0.42
Mms	13.1 g
Bxl	7.21 Tm
Sd	122.7 cm²
X var	+/- 8.0 mm
Le (1KHz)	0.44 mH
Re (LF)	5.1 Ω
Re (HF)	6.0 Ω
Fs (LF)	50.8 Hz
Fs (HF)	1500 Hz

Info

Impedance, Z

8+8

Article No.

SIC-Z004102C

Weight

1.7 kg/db
