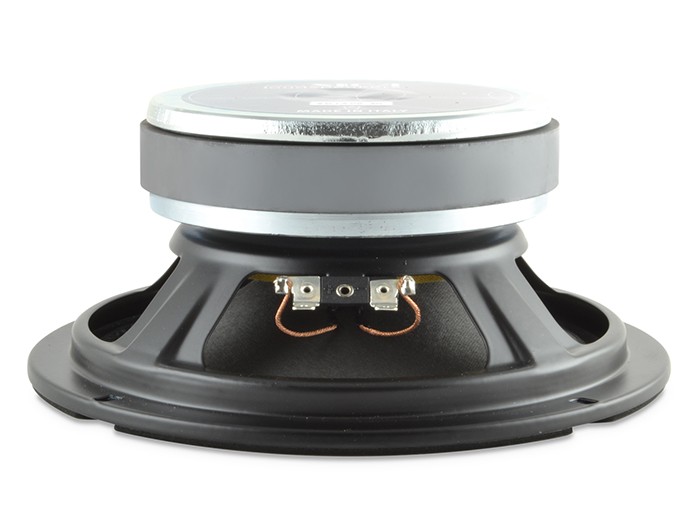

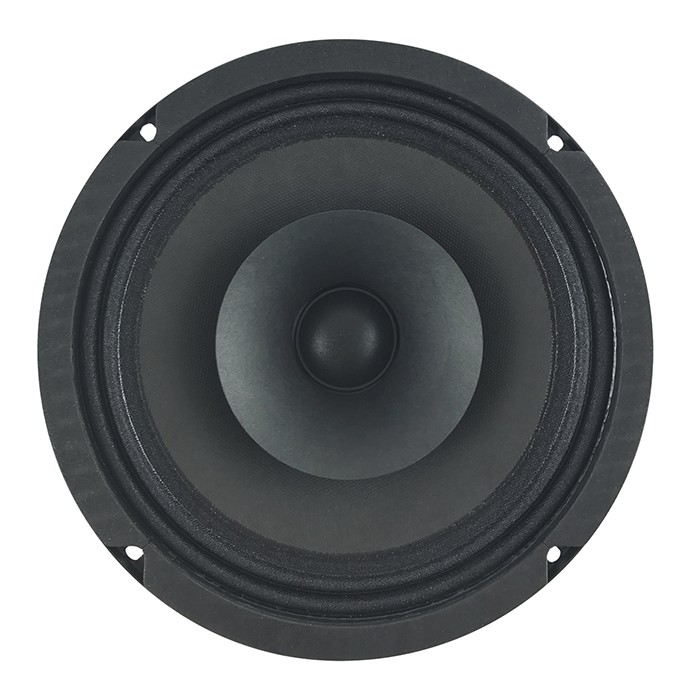

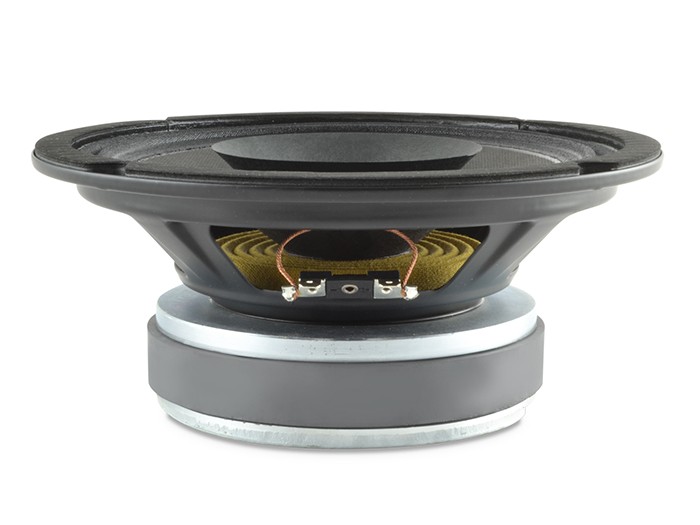

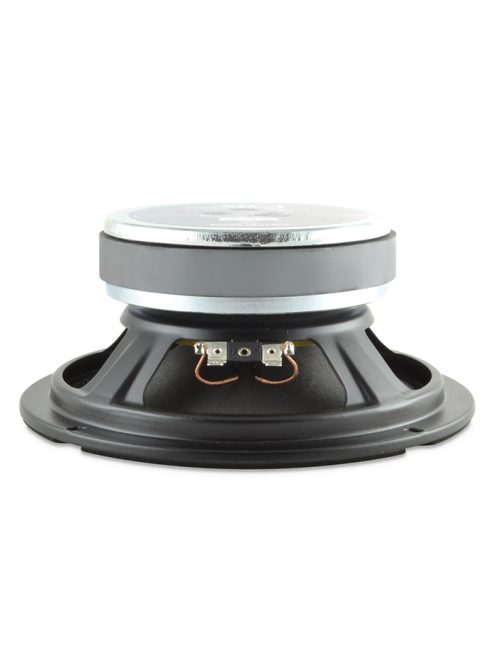

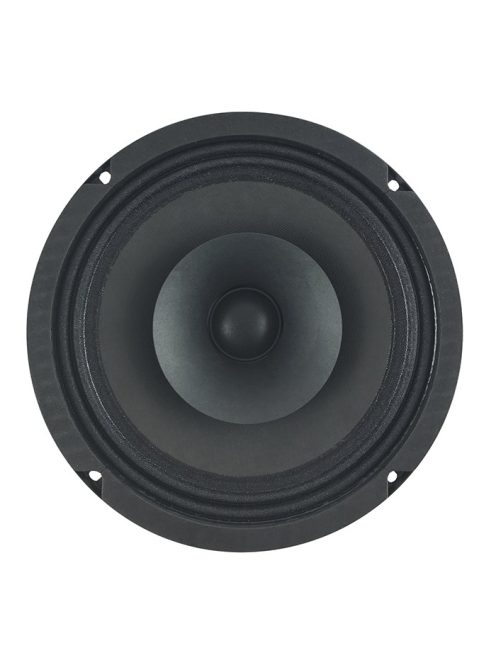

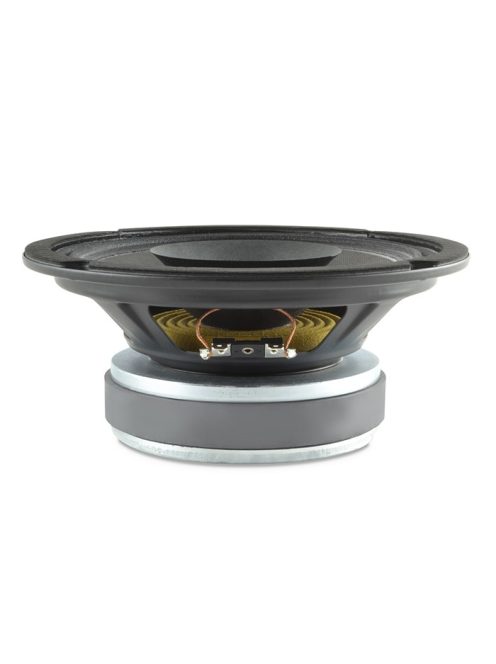

SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
80.36 € excl. VAT

SICA 8 D 1,5 CS Full Range

SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
SICA 8 D 1,5 CS Full Range
Manufacturer
Sica
Further data
In stock
80.36 € excl. VAT
Details
HIGHLIGHTS
Dual Cone
Nominal overall diameter 8"
Nominal voice coil diameter 38 mm
Magnet material Ferrite
Basket material Pressed Sheet Steel
Power 260 W
Sensitivity 95.3 dB
Frequency range 65-15000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter 8 in / 210 mm
Nominal Impedence 8 Ω
Rated Power AES (1) 130 W
Continuous Program Power (2) 260 W
Sensitivity @ 1W/1m (3) 95.3 dB
Voice Coil Diameter 38 mm / 1.5 in
Voice Coil Winding Depth 10 mm
Magnetic Gap Depth 8 mm
Flux Density 1.10 T
Magnet Weight 1100 g
Net Weight 3.1 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet Ferrite
Basket Material Pressed Sheet Steel
Voice Coil Winding Material Copper
Voice Coil Former Material Kapton
Cone Material Paper
Cone Treatment No
Surround Material Treated Cloth
Dust Dome Material Treated Cloth
MOUNTING INFORMATION
Overall Diameter 210 mm
Baffle Cutout Diameter 184 mm
Mounting Holes 4 holes 5x8 mm on Ø197 mm
Total Depth 88.6 mm
THIELE/SMALL PARAMETERS
Re 6.6 Ω
Qms 2.21
Qts 0.30
Cms 392 µm/N
Vas 25.5 l
X max +/- 2.5 mm
N 1.69 %
Fs 62.0 Hz
Qes 0.35
Mms 16.8 g
Bxl 11.18 Tm
Sd 213.8 cm²
X var +/- 4.0 mm
Le 0.35 mH
Info
Impedance, Z
8
Chassis diameter
8”
Article No.
SIC-Z004950C
Weight
3.1 kg/db
Letöltések
Z004950.pdf
