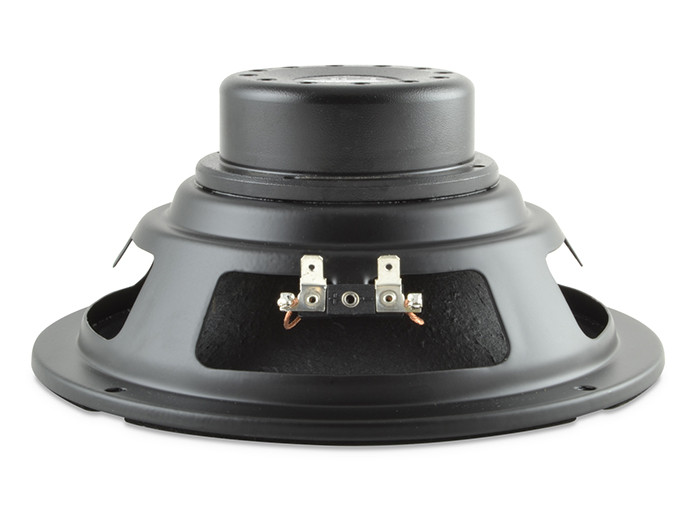

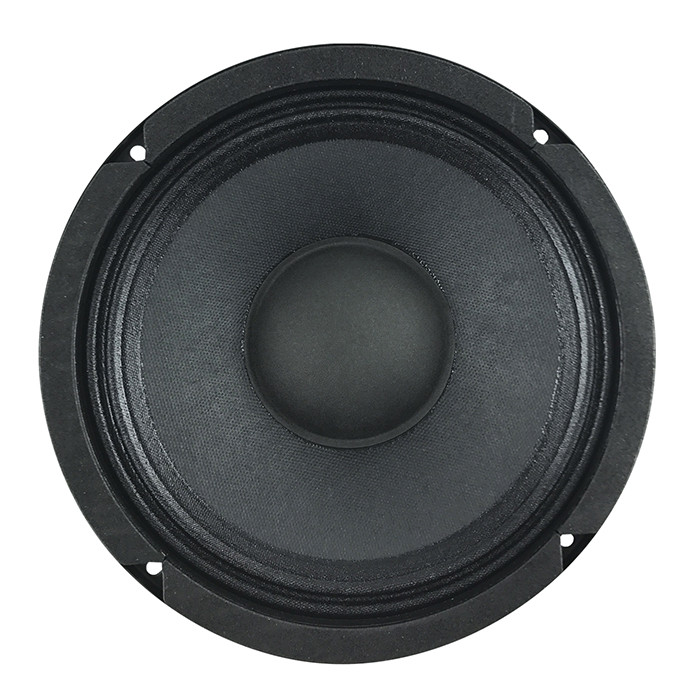

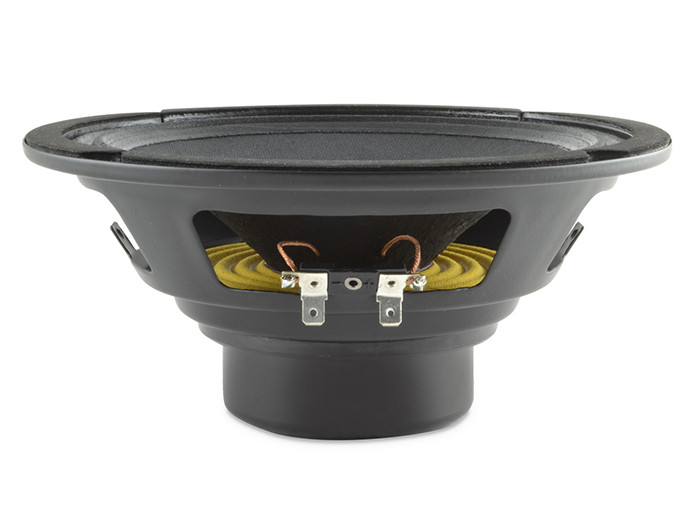

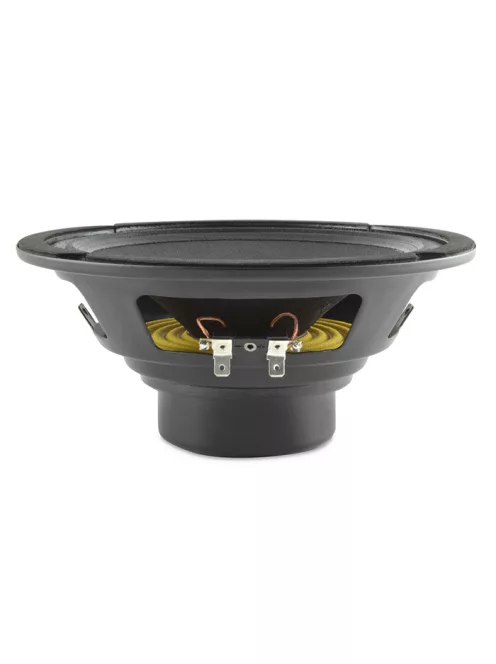

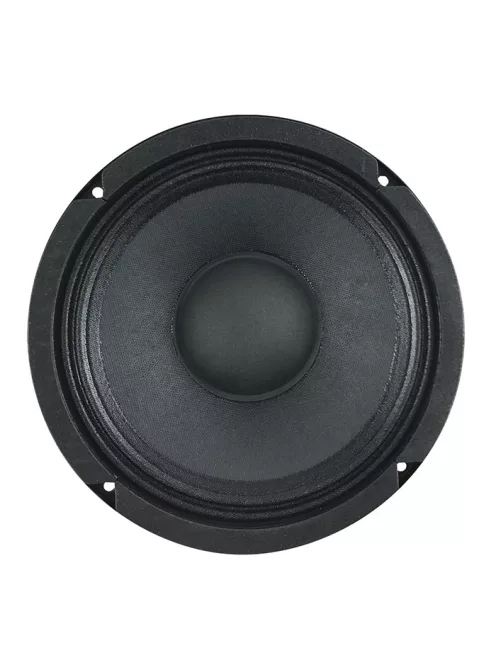

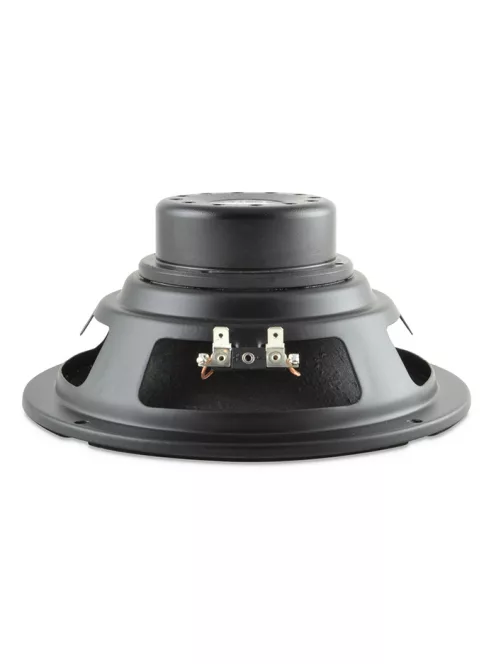

SICA 8 L 2 SL mid-woofer

SICA 8 L 2 SL mid-woofer

SICA 8 L 2 SL mid-woofer

SICA 8 L 2 SL mid-woofer

SICA 8 L 2 SL mid-woofer

SICA 8 L 2 SL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	209 mm / 8 in
Nominal Impedance	8 Ω
Rated Power AES	200 W
Continuos Program Power	400 W
Sensitivity @ 1W/1m	94.5 dB
Voice Coil Diameter	50 mm (2")
Voice Coil Winding Depth	14 mm
Magnetic Gap Depth	8 mm
Flux Density	1.20 T
Magnet Weight	160 g
Net Weight	1.6 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	210 mm
Baffle Cutout Diameter	181 mm
Mounting Holes	4 holes Ø4.5 on Ø198.5 mm
Total Depth	94.5 mm

Thiele/Small Parameters

Re	6.1 Ω
Qms	2.69
Qts	0.32
Cms	280 µm/N
Vas	18.2 l
X max	+/- 3.5 mm
N	1.28 %
Fs	64.0 Hz
Qes	0.36
Mms	22.1 g
Bxl	12.30 Tm
Sd	213.8 cm²
X var	+/- 5.0 mm
Le (1KHz)	0.85 mH

Info

Impedance, Z

8

Chassis diameter

8”

Article No.

SIC-Z005055C

Weight

1.6 kg/db
