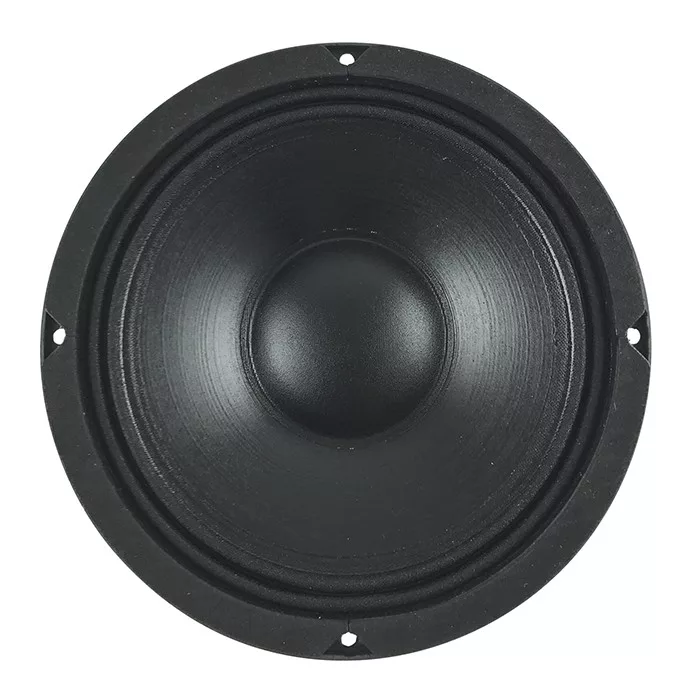

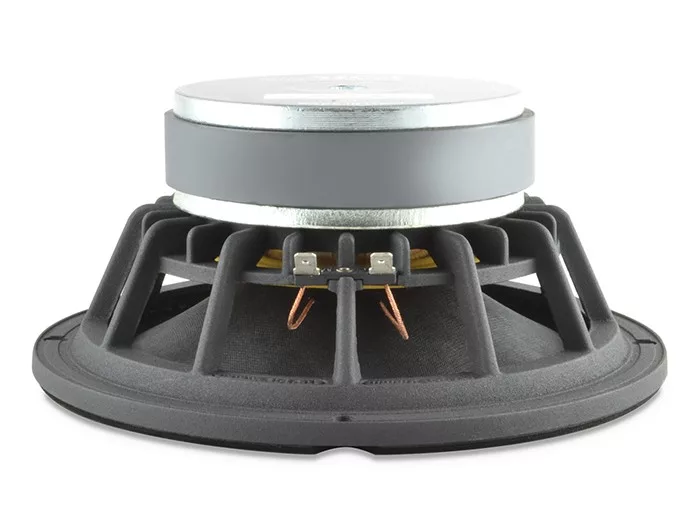

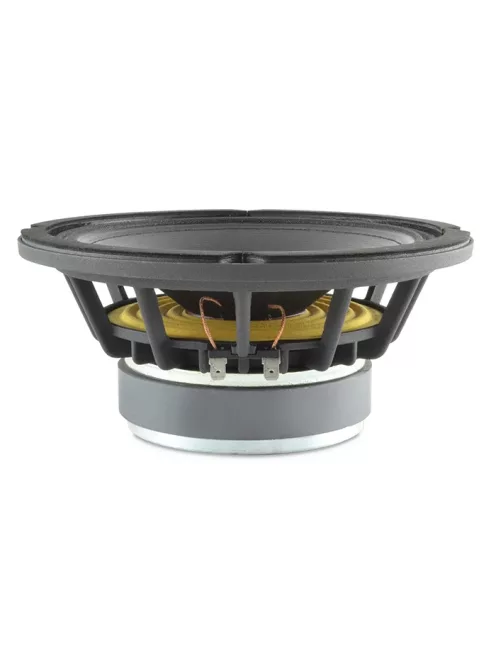

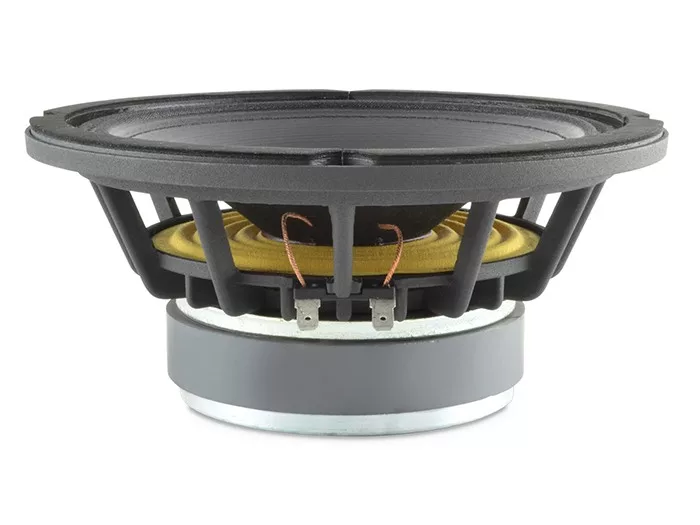

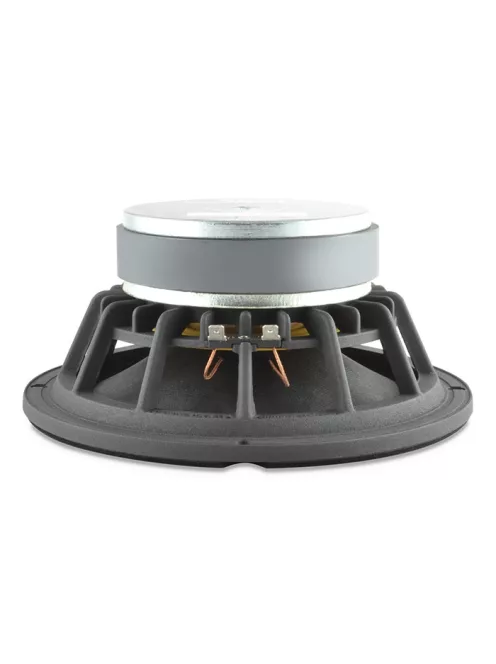

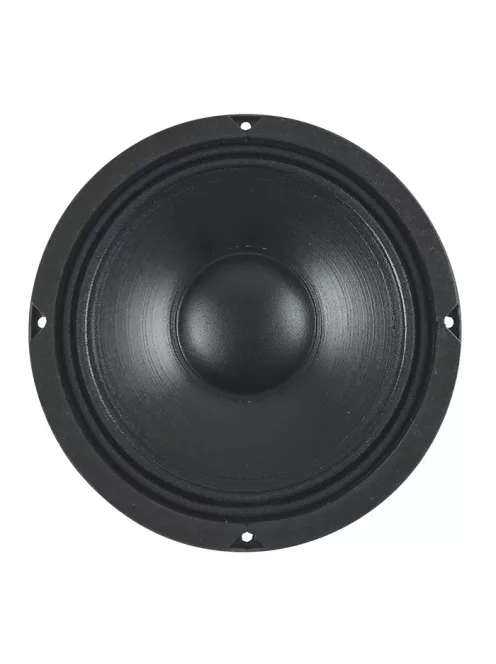

SICA 8 Fe 2 CP mid-woofer 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

HIGHLIGHTS
Professional
Nominal overall diameter	8"
Nominal voice coil diameter	2"
Magnet material	Ferrite
Basket material	Aluminium Die-Cast
Power	400 W
Sensitivity	94.6 dB
Frequency range	65-3000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter	210 mm / 8 in
Nominal Impedence	8 Ω
Rated Power AES (1)	200 W
Continuous Program Power (2)	400 W
Sensitivity @ 1W/1m (3)	94.6 dB
Voice Coil Diameter	50 mm / 2 in
Voice Coil Winding Depth	14 mm
Magnetic Gap Depth	8 mm
Flux Density	1.20 T
Magnet Weight	930 g
Net Weight	2.8 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper
MOUNTING INFORMATION
Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5,5x7,5 on Ø196 mm
Total Depth	93 mm
THIELE/SMALL PARAMETERS
Re	6.1 Ω
Qms	2.27
Qts	0.32
Cms	260 µm/N
Vas	16.9 l
X max	+/- 4.5 mm
N	1.32 %
Fs	67.0 Hz
Qes	0.37
Mms	21.7 g
Bxl	12.27 Tm
Sd	213.8 cm²
X var	+/- 7.0 mm
Le (1KHz)	0.78 mH

Info

Impedance, Z

Chassis diameter

8”

Article No.

SIC-Z005112C

Weight

2.8 kg/db
