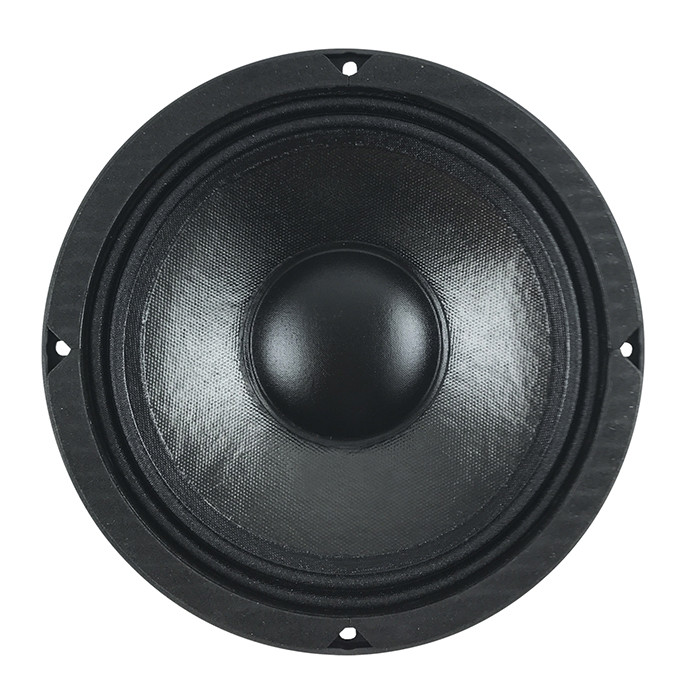

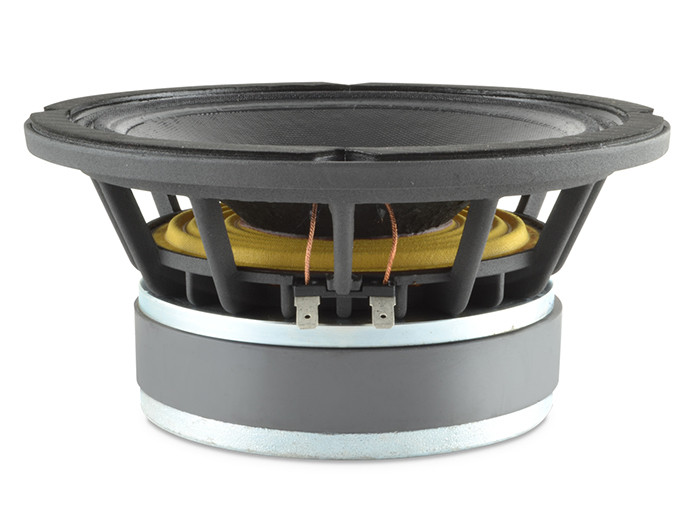

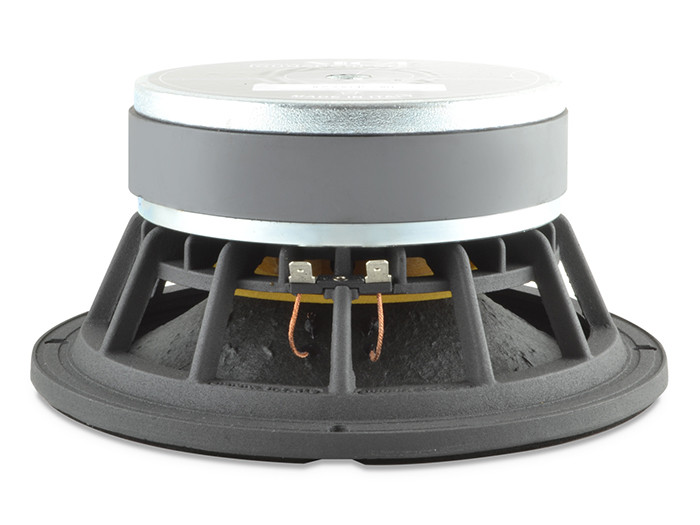

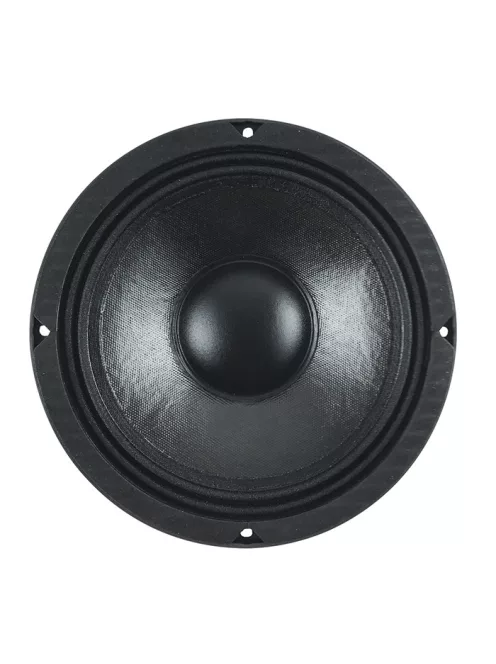

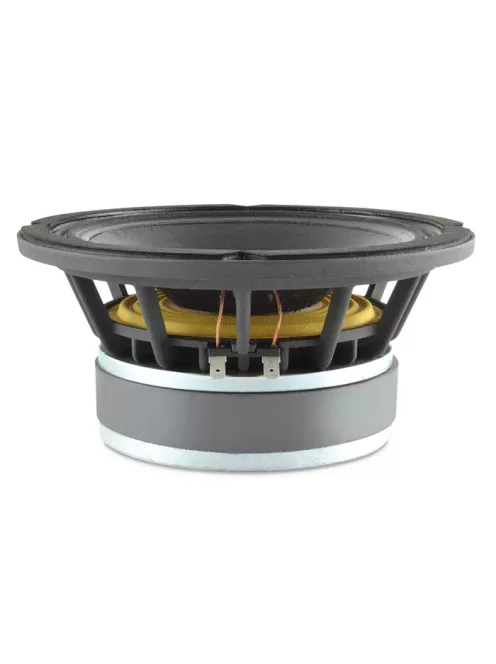

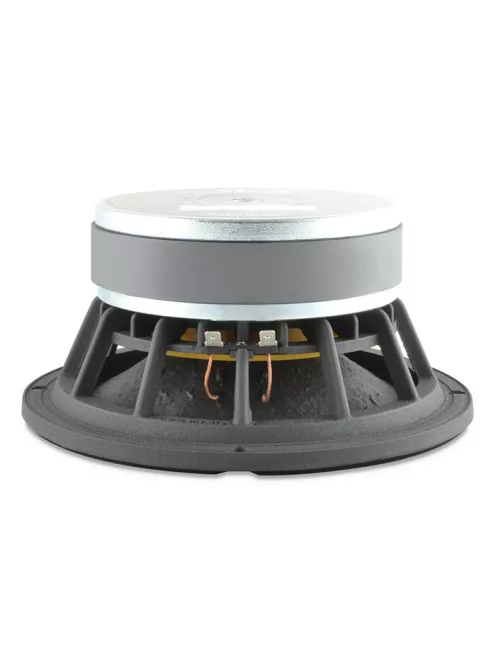

SICA 8 S 2,5 CP mid-woofer

SICA 8 S 2,5 CP mid-woofer

SICA 8 S 2,5 CP mid-woofer

SICA 8 S 2,5 CP mid-woofer

SICA 8 S 2,5 CP mid-woofer

SICA 8 S 2,5 CP mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	210 mm / 8 in
Nominal Impedance	8 Ω
Rated Power AES	300 W
Continuos Program Power	600 W
Sensitivity @ 1W/1m	93.0 dB
Voice Coil Diameter	65 mm (2.5")
Voice Coil Winding Depth	18 mm
Magnetic Gap Depth	8 mm
Flux Density	0.89 T
Magnet Weight	1430 g
Net Weight	4.5 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber, Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5.5×7.5 on Ø196 mm
Total Depth	98 mm

Thiele/Small Parameters

Re	5.1 Ω
Qms	3.44
Qts	0.33
Cms	287 µm/N
Vas	18.6 l
X max	+/- 5.0 mm
N	0.76 %
Fs	54.0 Hz
Qes	0.37
Mms	30.3 g
Bxl	11.90 Tm
Sd	213.8 cm²
X var	+/- 7.0 mm
Le (1KHz)	1.00 mH

Info

Impedance, Z

8

Chassis diameter

8”

Article No.

SIC-Z005205C

Weight

4.5 kg/db
