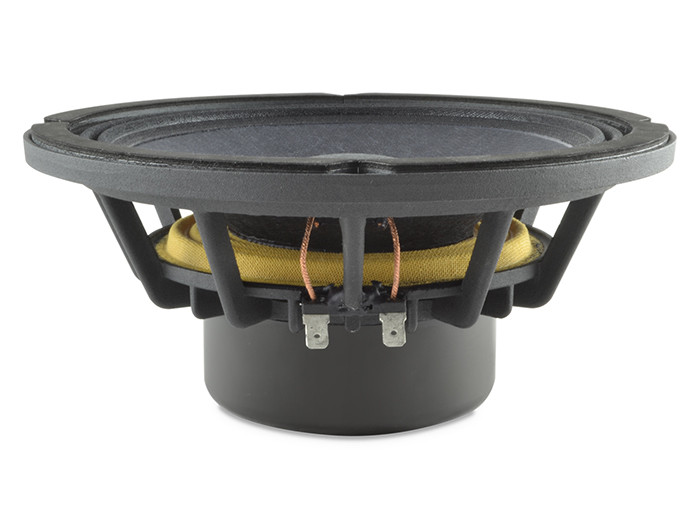

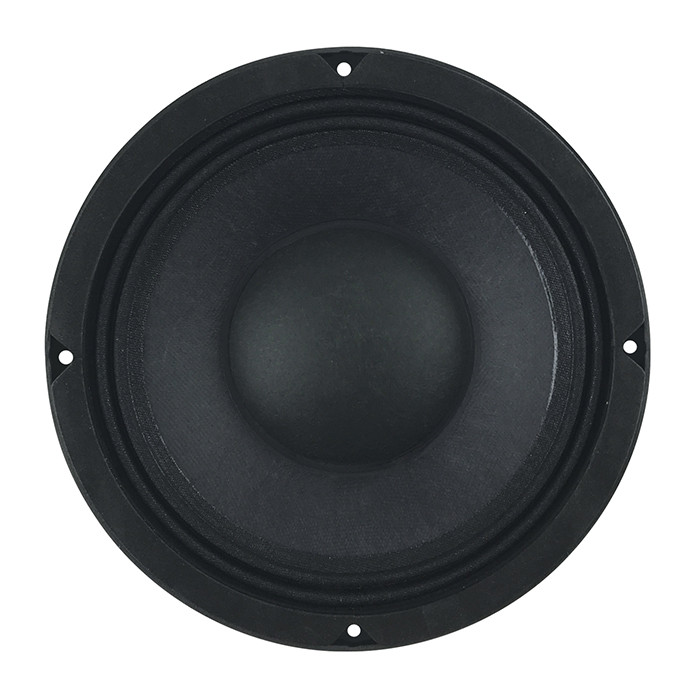

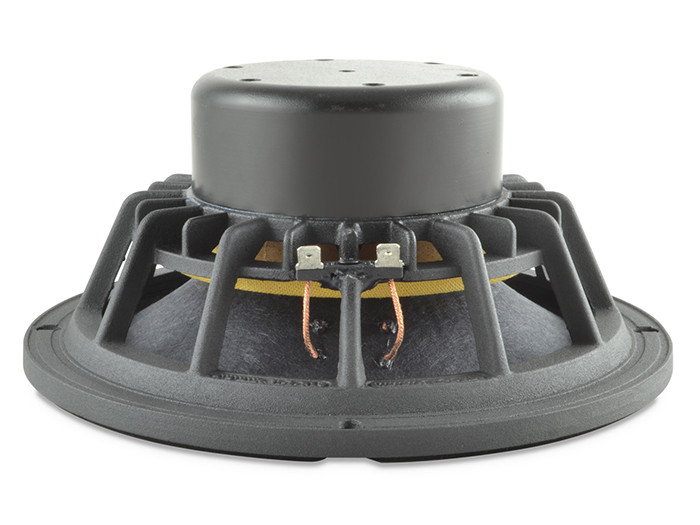

SICA 8 K 3 PL mid-woofer

SICA 8 K 3 PL mid-woofer

SICA 8 K 3 PL mid-woofer

SICA 8 K 3 PL mid-woofer

SICA 8 K 3 PL mid-woofer

SICA 8 K 3 PL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	210 mm / 8 in
Nominal Impedance	8 Ω
Rated Power AES	400 W
Continuos Program Power	800 W
Sensitivity @ 1W/1m	95.1 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	17 mm
Magnetic Gap Depth	10 mm
Flux Density	1.20 T
Magnet Weight	360 g
Net Weight	2.4 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5.5×7.5 on Ø196 mm
Total Depth	93 mm

Thiele/Small Parameters

Re	5.6 Ω
Qms	3.85
Qts	0.25
Cms	188 µm/N
Vas	12.2 l
X max	+/- 5.0 mm
N	1.38 %
Fs	68.1 Hz
Qes	0.27
Mms	29.0 g
Bxl	16.10 Tm
Sd	213.8 cm²
X var	+/- 6.5 mm
Le (1KHz)	0.37 mH

Info

Impedance, Z

8

Chassis diameter

8”

Article No.

SIC-Z005520C

Weight

2.4 kg/db
