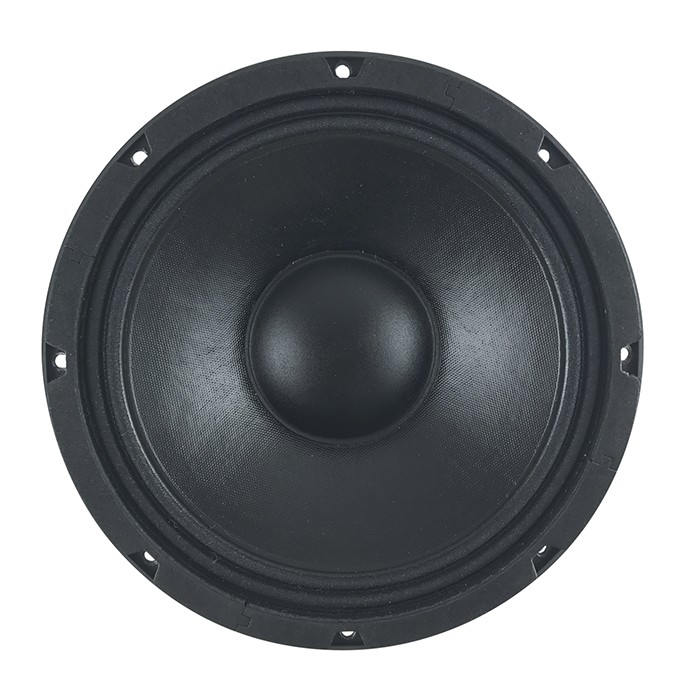

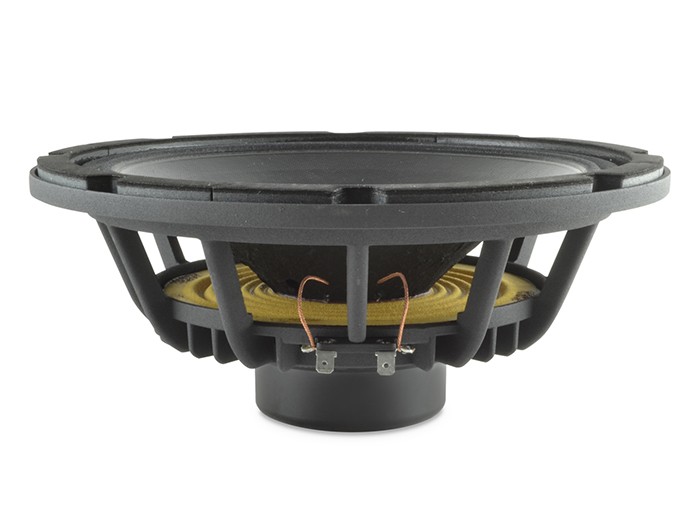

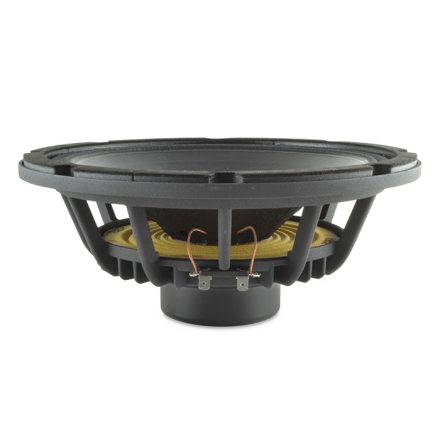

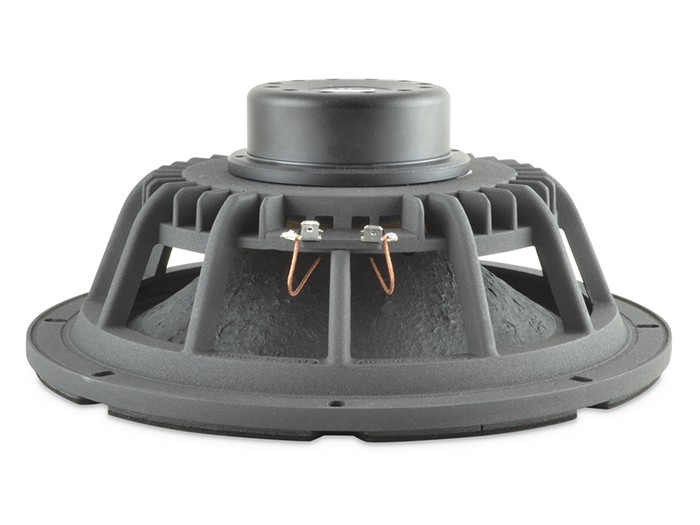

SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
160.95 € excl. VAT

SICA 10 N 2,5 PL mid-woofer

SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
SICA 10 N 2,5 PL mid-woofer
Manufacturer
Sica
Further data
In stock
160.95 € excl. VAT
Details
General Specifications
Nominal Diameter

268 mm / 10 in
Nominal Impedance

8 Ω
Rated Power AES

300 W
Continuos Program Power

600 W
Sensitivity @ 1W/1m

96.6 dB
Voice Coil Diameter

65 mm (2.5")
Voice Coil Winding Depth

12 mm
Magnetic Gap Depth

8 mm
Flux Density

1.22 T
Magnet Weight

220 g
Net Weight

2.2 Kg
Constructive Characteristics
Magnet Type

Neodymium
Basket Material

Aluminium Die-Cast
Voice Coil Winding Material

Aluminium
Voice Coil Former Material

Kapton
Cone Material

Paper
Cone Treatment

Surface Waterproof Treatment
Surround Material

Treated Cloth
Dust Dome Material

Solid Paper
Mounting Information
Overall Diameter

268 mm
Baffle Cutout Diameter

232 mm
Mounting Holes

8 holes 6×9 on Ø247 mm
Total Depth

111.5 mm
Thiele/Small Parameters
Re

5.5 Ω
Qms

4.25
Qts

0.36
Cms

240 µm/N
Vas

40.9 l
X max

+/- 4.5 mm
N

1.87 %
Fs

57.0 Hz
Qes

0.39
Mms

32.5 g
Bxl

12.80 Tm
Sd

346.4 cm²
X var

+/- 7.0 mm
Le (1KHz)

0.50 mH
Info
Impedance, Z
8
Chassis diameter
10”
Article No.
SIC-Z005701C
Weight
2.2 kg/db
