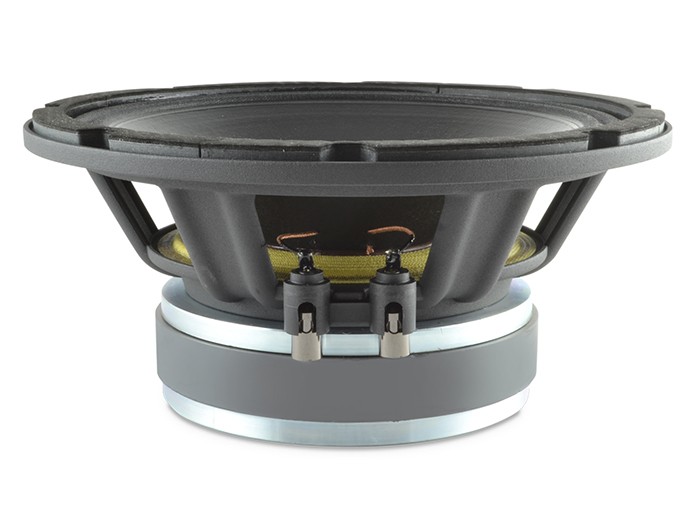

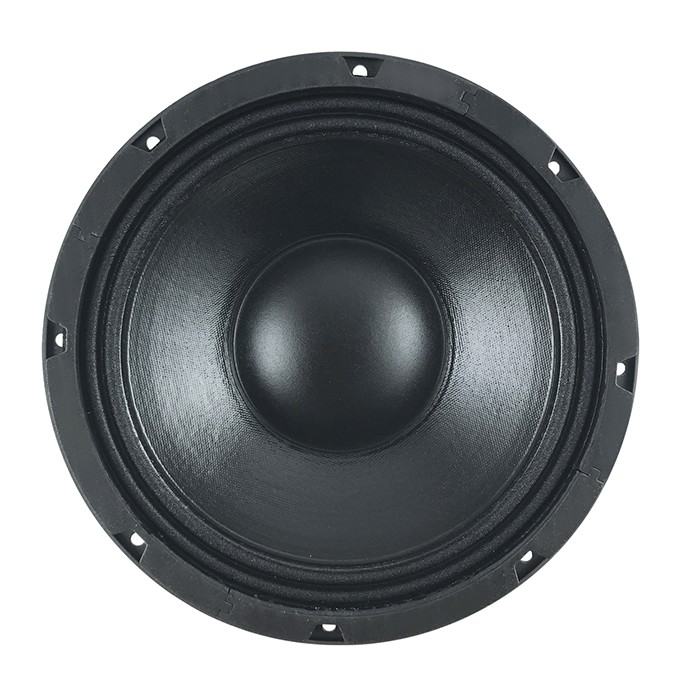

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

SICA 10 Fe 3 CP mid-woofer 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	269 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	450 W
Continuos Program Power	900 W
Sensitivity @ 1W/1m	95.9 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	17 mm
Magnetic Gap Depth	10 mm
Flux Density	1.08 T
Magnet Weight	1790 g
Net Weight	6.6 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	268 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes 6×9 on Ø247 mm
Total Depth	122.5 mm

Thiele/Small Parameters

Re	5.6 Ω
Qms	7.50
Qts	0.31
Cms	226 µm/N
Vas	38.6 l
X max	+/- 5.0 mm
N	1.63 %
Fs	52.0 Hz
Qes	0.32
Mms	41.4 g
Bxl	15.35 Tm
Sd	346.4 cm²
X var	+/- 7.5 mm
Le (1KHz)	0.67 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z005831C

Weight

6.6 kg/db
