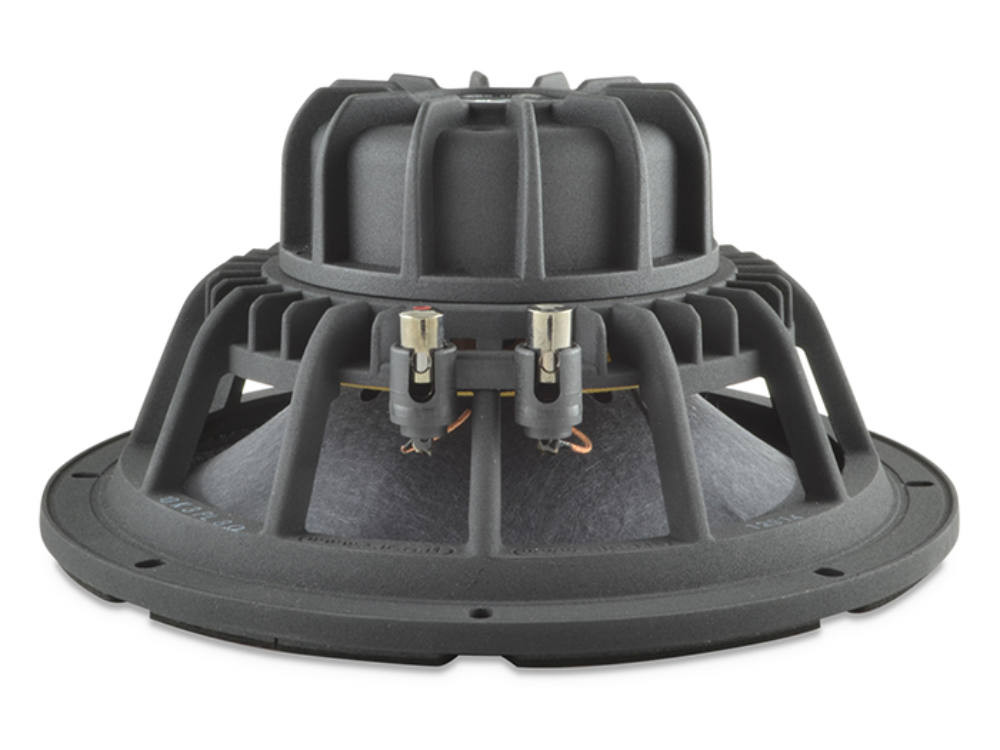

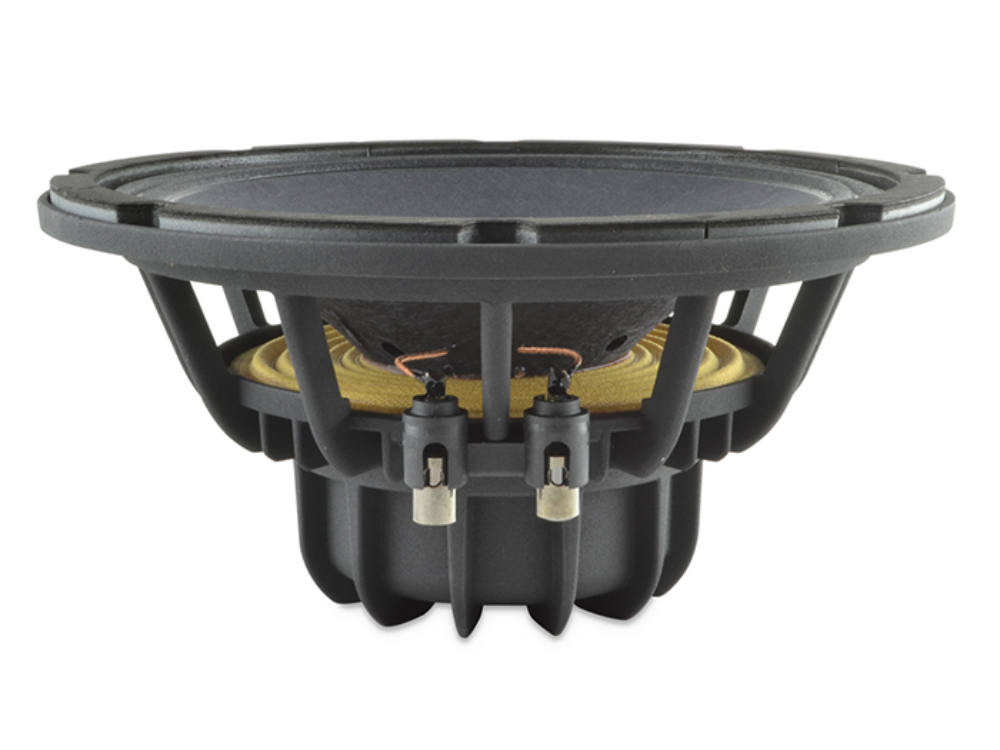

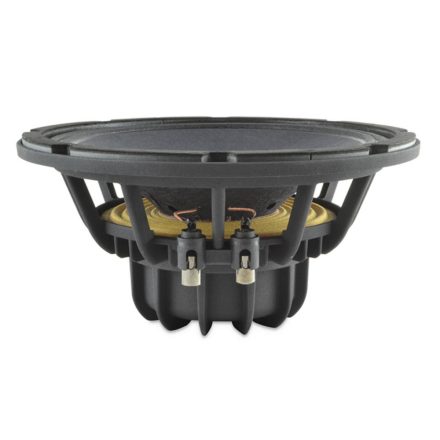

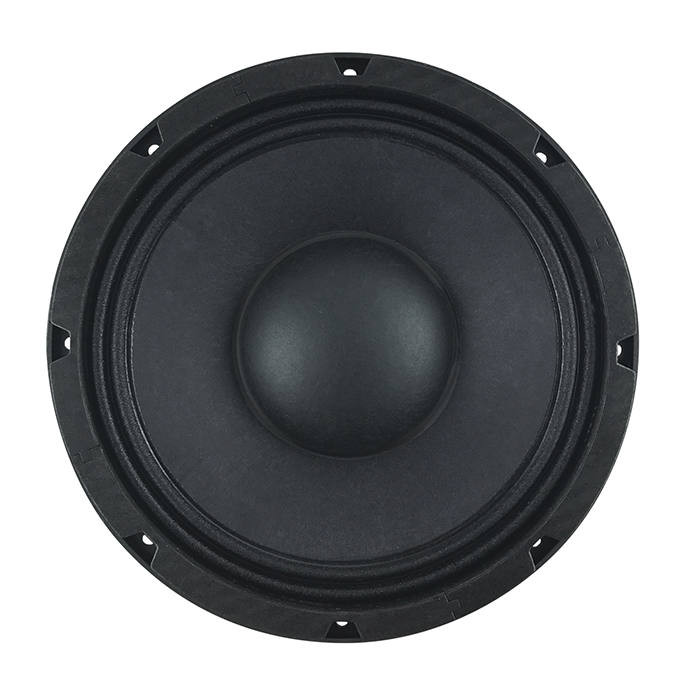

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

SICA 10 K 3 PL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	268 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	400 W
Continuos Program Power	800 W
Sensitivity @ 1W/1m	96.7 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	20 mm
Magnetic Gap Depth	10 mm
Flux Density	1.20 T
Magnet Weight	360 g
Net Weight	2.8 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	268 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes 6×9 on Ø247 mm
Total Depth	128.5 mm

Thiele/Small Parameters

Re	5.2 Ω
Qms	5.02
Qts	0.26
Cms	235 µm/N
Vas	40.0 l
X max	+/- 6.5 mm
N	1.85 %
Fs	50.6 Hz
Qes	0.27
Mms	42.1 g
Bxl	16.05 Tm
Sd	346.4 cm²
X var	+/- 8.5 mm
Le (1KHz)	0.49 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z005840

Weight

2.8 kg/db
