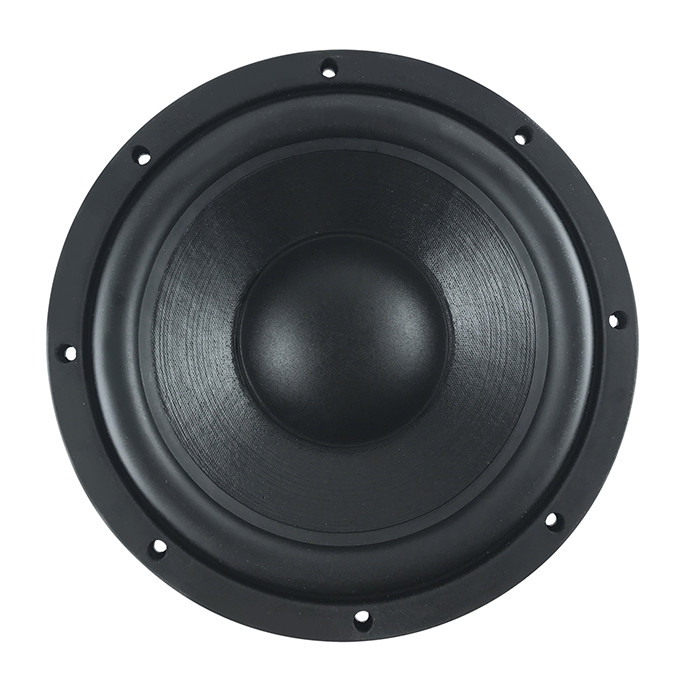

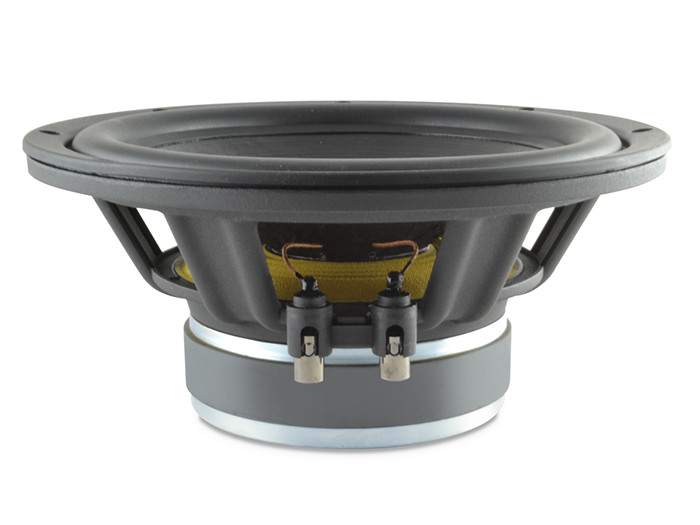

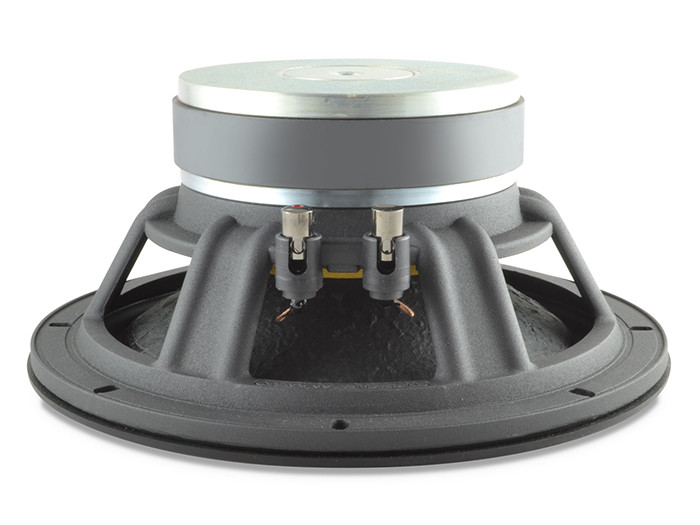

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

SICA 10 SR 2,5 CP Woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	269 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	300 W
Continuos Program Power	600 W
Sensitivity @ 1W/1m	93.0 dB
Voice Coil Diameter	65 mm (2.5")
Voice Coil Winding Depth	18 mm
Magnetic Gap Depth	8 mm
Flux Density	1.05 T
Magnet Weight	1430 g
Net Weight	5.0 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Rubber
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	270 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes Ø6 on Ø252 mm
Total Depth	122 mm

Thiele/Small Parameters

Re	5.2 Ω
Qms	6.35
Qts	0.32
Cms	377 µm/N
Vas	66.7 l
X max	+/- 6.0 mm
N	0.78 %
Fs	34.5 Hz
Qes	0.34
Mms	56.5 g
Bxl	13.70 Tm
Sd	353.0 cm²
X var	+/- 10.0 mm
Le (1KHz)	1.16 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z006013C

Weight

5 kg/db
