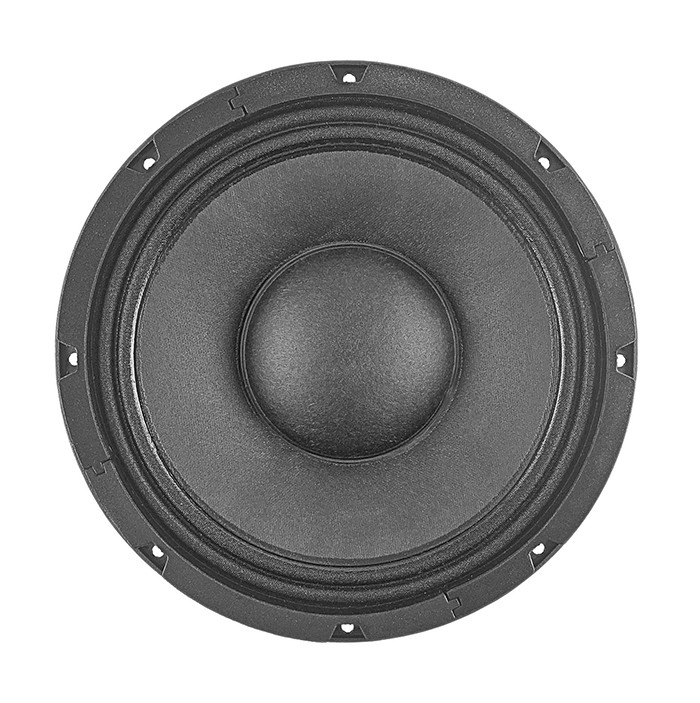

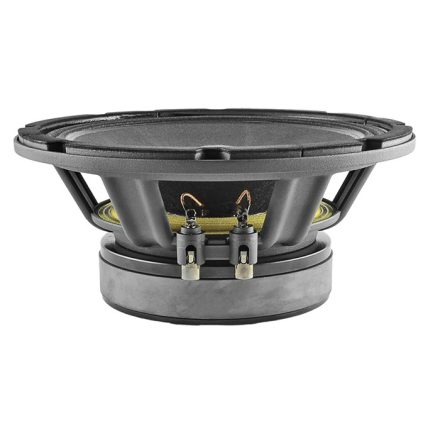

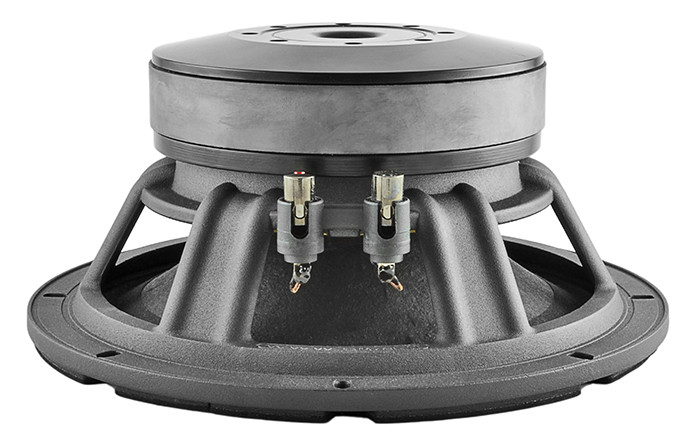

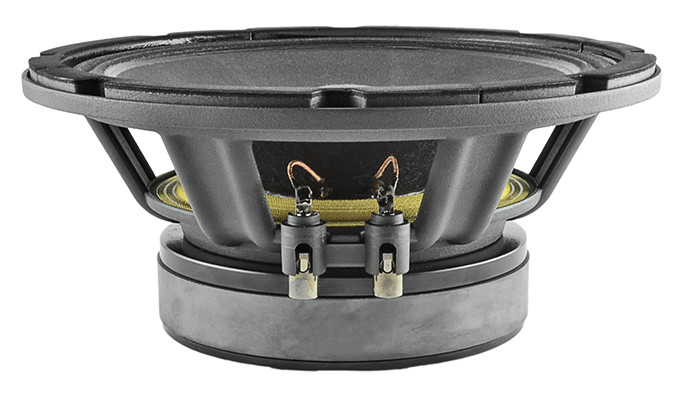

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

SICA 10 S 3 CP Woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	269 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	450 W
Continuos Program Power	900 W
Sensitivity @ 1W/1m	94.0 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	24 mm
Magnetic Gap Depth	10 mm
Flux Density	0.98 T
Magnet Weight	1790 g
Net Weight	6.1 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	268 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes 6×9 on Ø247 mm
Total Depth	122.5 mm

Thiele/Small Parameters

Re	5.1 Ω
Qms	4.83
Qts	0.30
Cms	252 µm/N
Vas	42.8 l
X max	+/- 7.0 mm
N	0.98 %
Fs	42.0 Hz
Qes	0.31
Mms	56.8 g
Bxl	15.58 Tm
Sd	346.4 cm²
X var	+/- 8.5 mm
Le (1KHz)	1.19 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z006017C

Weight

6.5 kg/db
