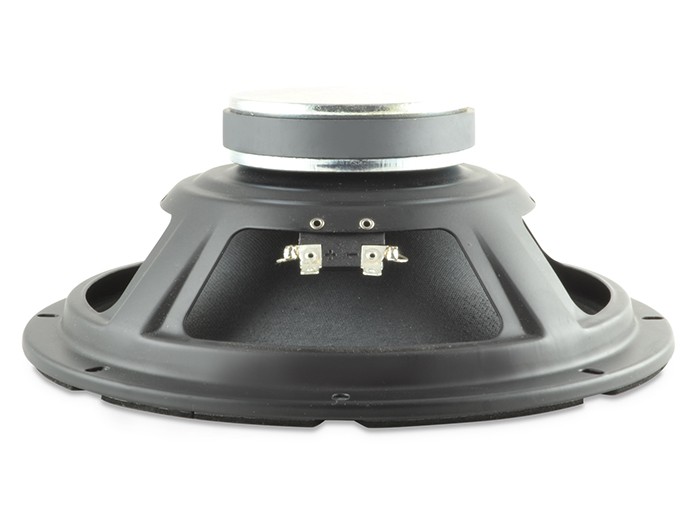

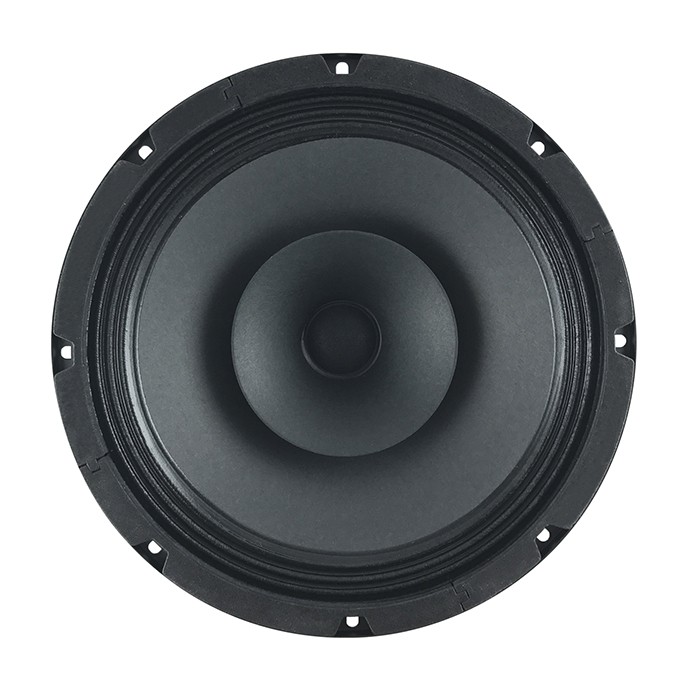

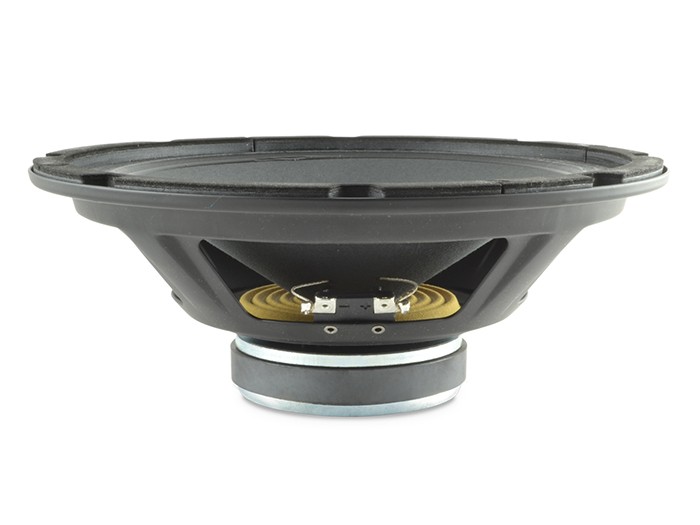

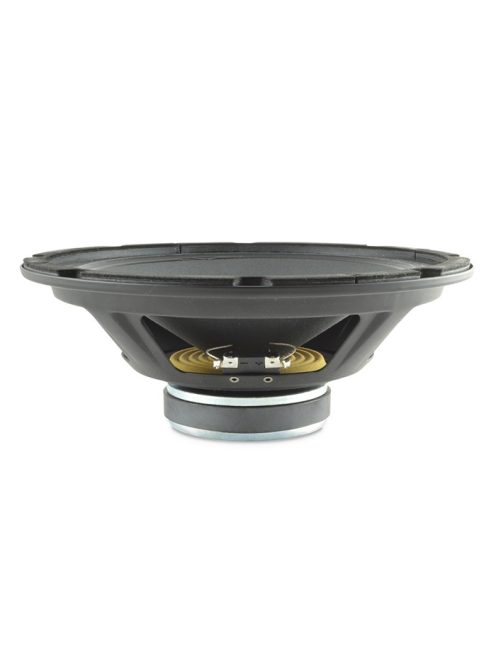

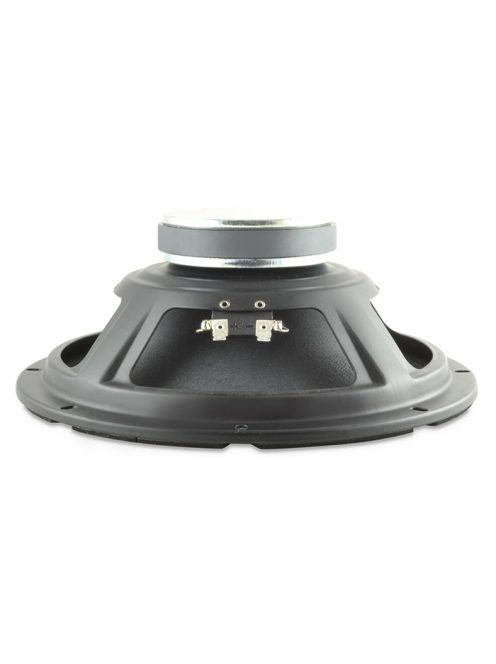

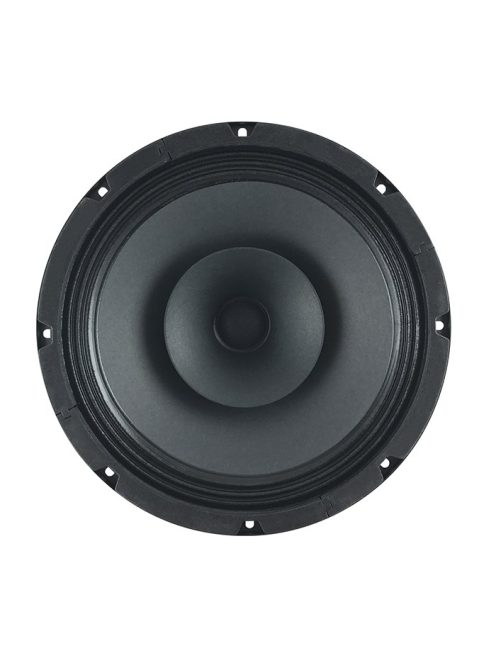

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

SICA 10 D 1,5 CS Full Range

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	266 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	100 W
Continuos Program Power	200 W
Sensitivity @ 1W/1m	93.9 dB
Voice Coil Winding Depth	9 mm
Magnetic Gap Depth	6 mm
Flux Density	0.95 T
Magnet Weight	426 g
Net Weight	1.9 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Paper – Integrated
Dust Dome Material	Non Treated Cloth

Mounting Information

Overall Diameter	266 mm
Baffle Cutout Diameter	237 mm
Mounting Holes	8 holes 5×9 on Ø250 mm
Total Depth	97.4 mm

Thiele/Small Parameters

Re	5.0 Ω
Qms	12.27
Qts	1.12
Cms	242 μm/N
Vas	37.5 l
X max	+/- 2.5 mm
N	0.92 %
Fs	682.0 Hz
Qes	1.23
Mms	22.6 g
Bxl	6.26 Tm
Sd	330.1 cm²
X var	+/- 5.0 mm
Le (1KHz)	0.26 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z006510C

Weight

1.9 kg/db
