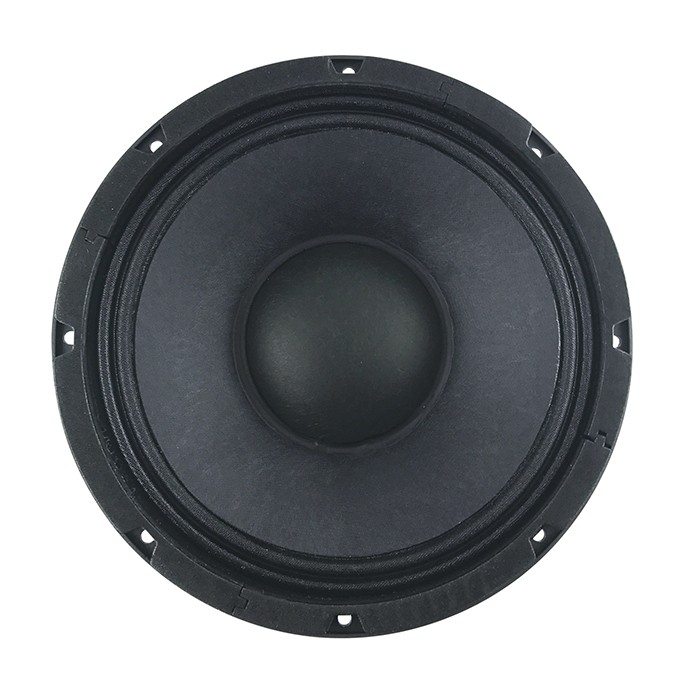

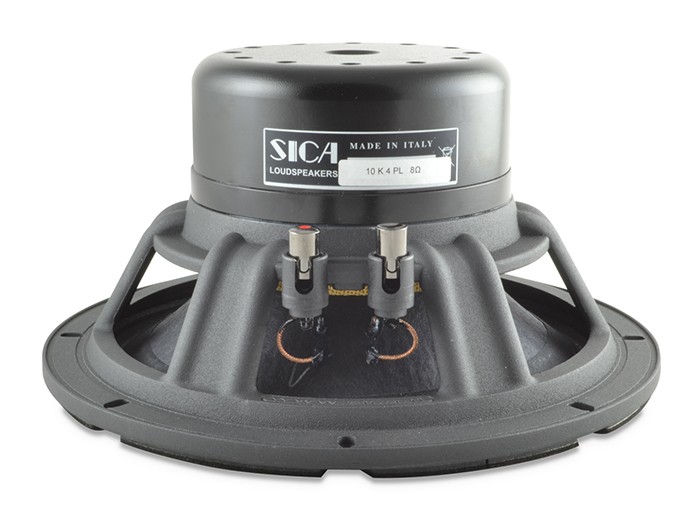

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

SICA 10 K 4 PL mid-woofer 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	269 mm / 10 in
Nominal Impedance	8 Ω
Rated Power AES	800 W
Continuos Program Power	1600 W
Sensitivity @ 1W/1m	95.8 dB
Voice Coil Diameter	100 mm (4")
Voice Coil Winding Depth	19 mm
Magnetic Gap Depth	12 mm
Flux Density	1.10 T
Magnet Weight	536 g
Net Weight	6.3 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	268 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes 6×9 on Ø247 mm
Total Depth	136 mm

Thiele/Small Parameters

Re	6.1 Ω
Qms	8.99
Qts	0.25
Cms	137 µm/N
Vas	23.4 l
X max	+/- 5.0 mm
N	1.75 %
Fs	58.5 Hz
Qes	0.26
Mms	53.9 g
Bxl	21.62 Tm
Sd	346.4 cm²
X var	+/- 7.0 mm
Le (1KHz)	0.40 mH

Info

Impedance, Z

8

Chassis diameter

10”

Article No.

SIC-Z006950C

Weight

6.3 kg/db
