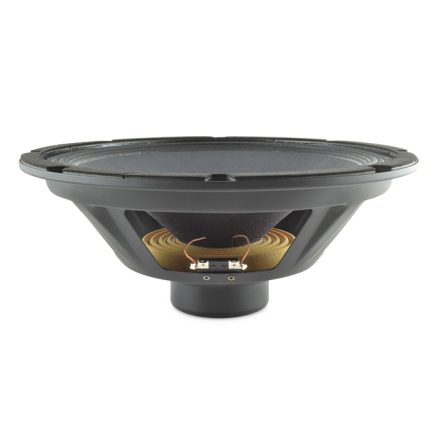

SICA 12 L1 2,5 SL mid-woofer

Name: SICA 12 L1 2,5 SL mid-woofer
Brand: Sica
SKU: SIC-Z007903C
Price: 195.52 EUR
Availability: InStock

Manufacturer

Sica

Further data

In stock

153.95 € excl. VAT

Details

12 L1 2,5 SL	Z007903
HIGHLIGHTS
Professional
Nominal overall diameter	12"
Nominal voice coil diameter	2.5"
Magnet material	Neodymium
Basket material	Pressed Sheet Steel
Power	600 W
Sensitivity	97.3 dB
Frequency range	50-3000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter	318 mm / 12 in
Nominal Impedence	8 Ω
Rated Power AES (1)	300 W
Continuous Program Power (2)	600 W
Sensitivity @ 1W/1m (3)	97.3 dB
Voice Coil Diameter	65 mm / 2.5 in
Voice Coil Winding Depth	14 mm
Magnetic Gap Depth	8 mm
Flux Density	1.15 T
Magnet Weight	220 g
Net Weight	2.3 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper
MOUNTING INFORMATION
Overall Diameter	318 mm
Baffle Cutout Diameter	287mm
Mounting Holes	8 holes 5x9 on Ø300 mm
Total Depth	130.2 mm
THIELE/SMALL PARAMETERS
Re	5.5 Ω
Qms	7.50
Qts	0.36
Cms	239 µm/N
Vas	81.8 l
X max	+/- 3.7 mm
N	2.21 %
Fs	47.5 Hz
Qes	0.38
Mms	47.0 g
Bxl	14.20 Tm
Sd	490.9 cm²
X var	+/- 6.0 mm
Le (1KHz)	0.75 mH

Info

Impedance, Z

Chassis diameter

12”

Article No.

SIC-Z007903C

Weight

2.3 kg/db

Letöltések

Z007903.pdf
