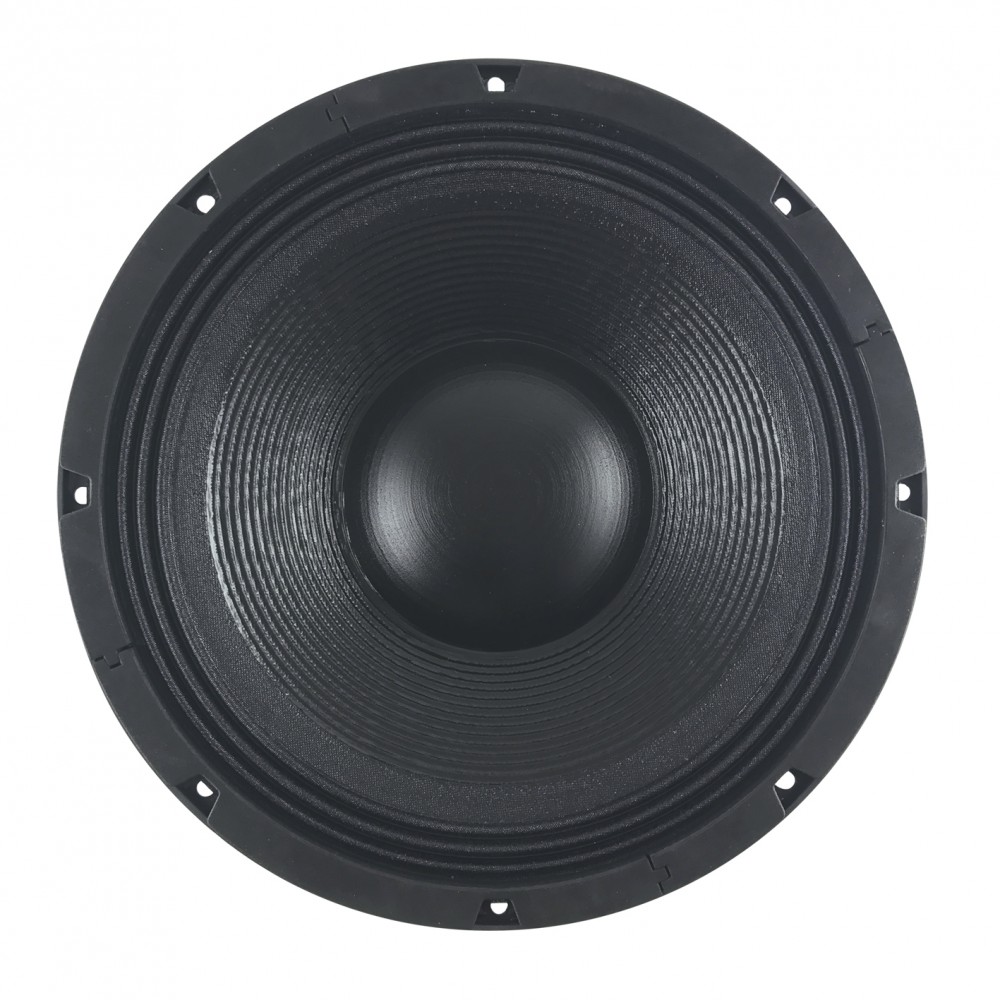

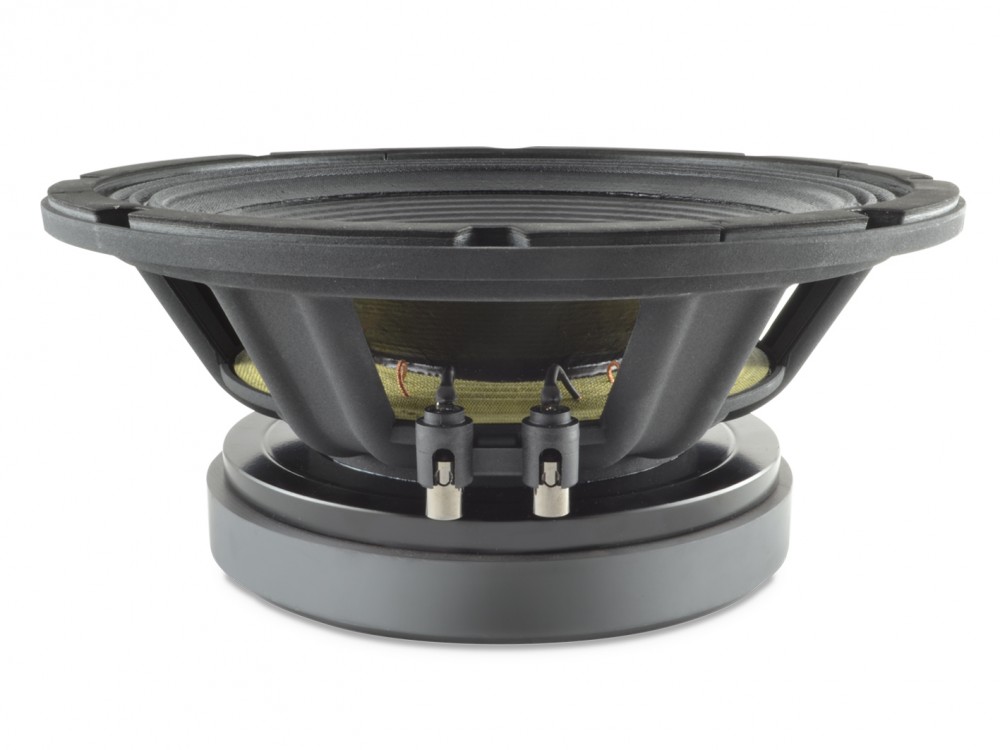

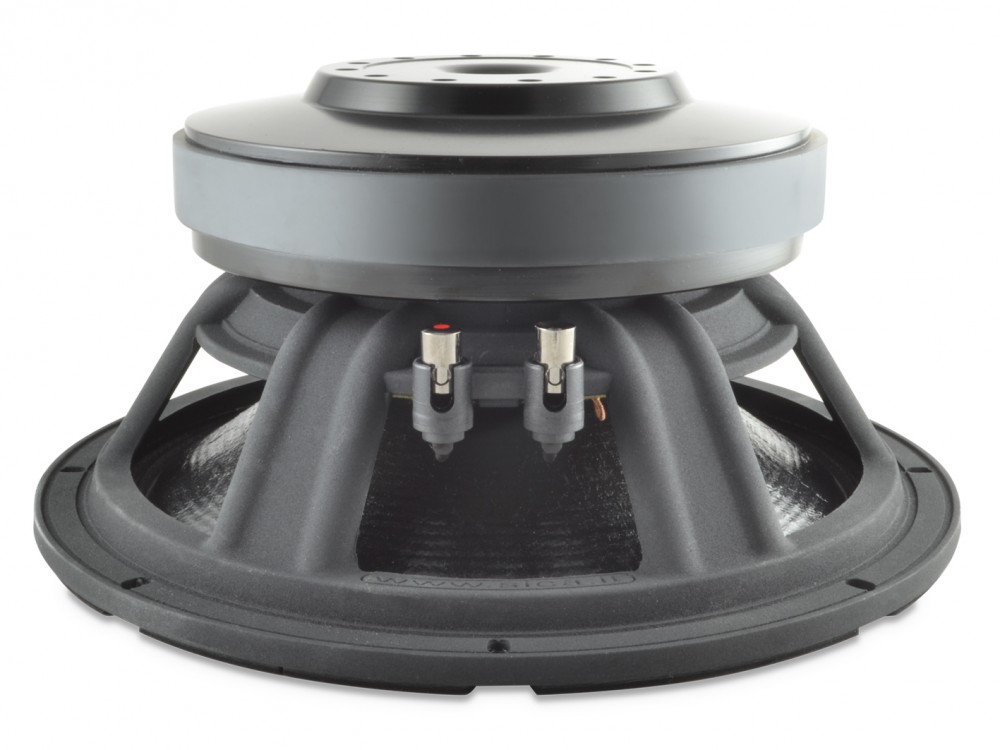

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

SICA 12 PFS 4 Woofer 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	321 mm / 12 in
Nominal Impedance	8 Ω
Rated Power AES	1000 W
Continuos Program Power	2000 W
Sensitivity @ 1W/1m	94.8 dB
Voice Coil Diameter	100 mm (4")
Voice Coil Winding Depth	27 mm
Magnetic Gap Depth	12 mm
Flux Density	1.08 T
Magnet Weight	3300 g
Net Weight	11.5 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Total Waterproof Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	320 mm
Baffle Cutout Diameter	284 mm
Mounting Holes	8 holes 6×9 on Ø301 mm
Total Depth	153.3 mm

Thiele/Small Parameters

Re	5.2 Ω
Qms	4.60
Qts	0.26
Cms	139 µm/N
Vas	55.6 l
X max	+/- 9.0 mm
N	1.18 %
Fs	39.0 Hz
Qes	0.27
Mms	120.0 g
Bxl	23.88 Tm
Sd	530.9 cm²
X var	+/- 10.0 mm
Le (1KHz)	1.76 mH

Info

Impedance, Z

8

Chassis diameter

12”

Article No.

SIC-Z007954C

Weight

11.5 kg/db
