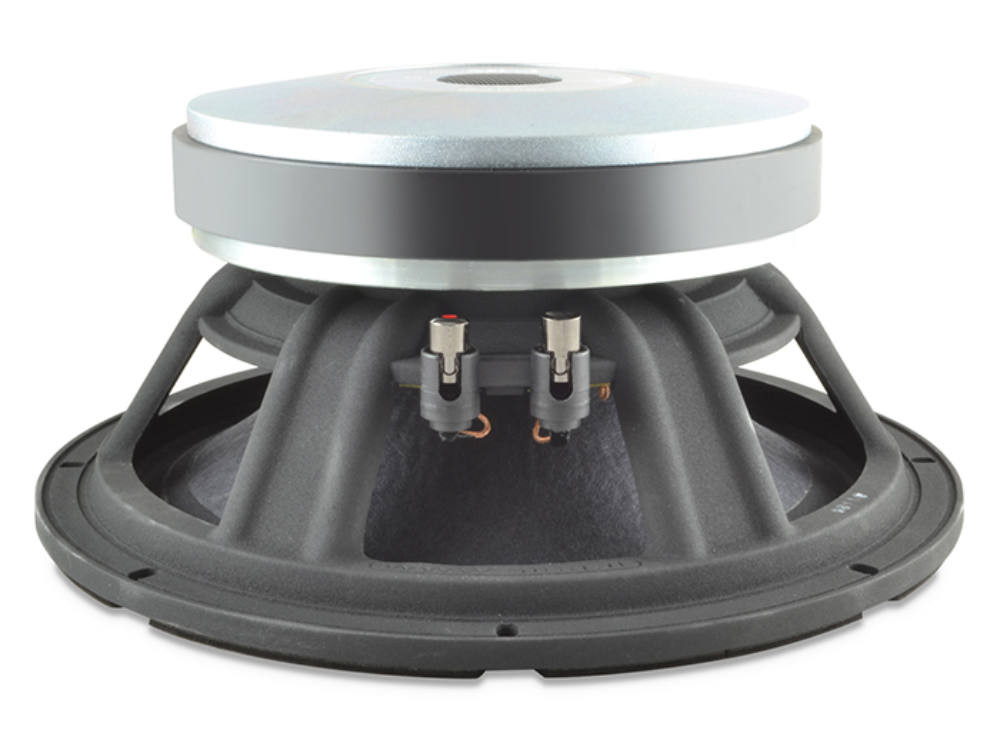

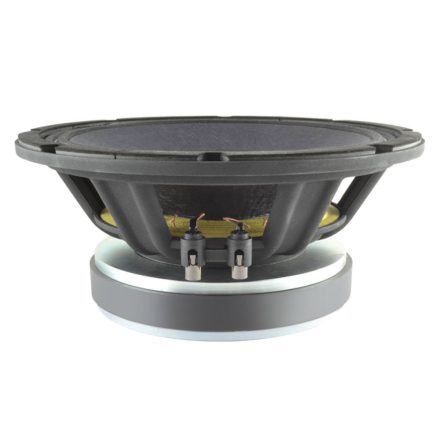

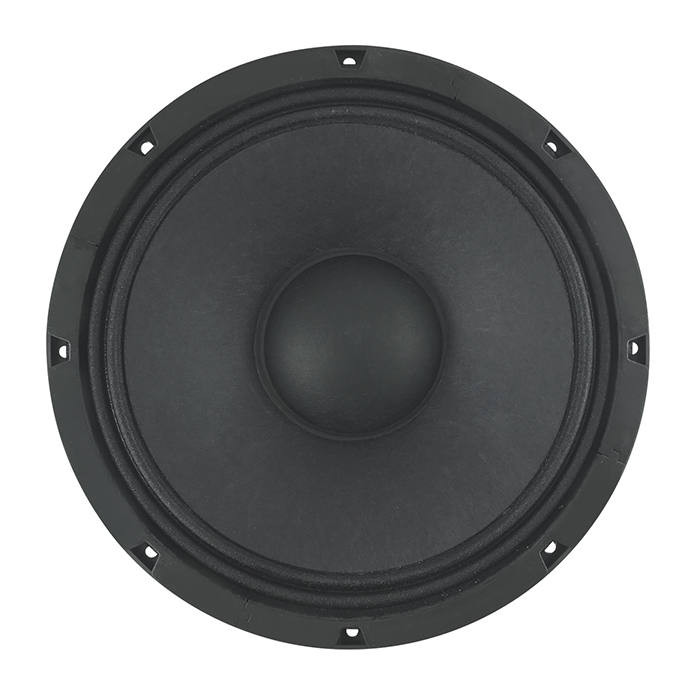

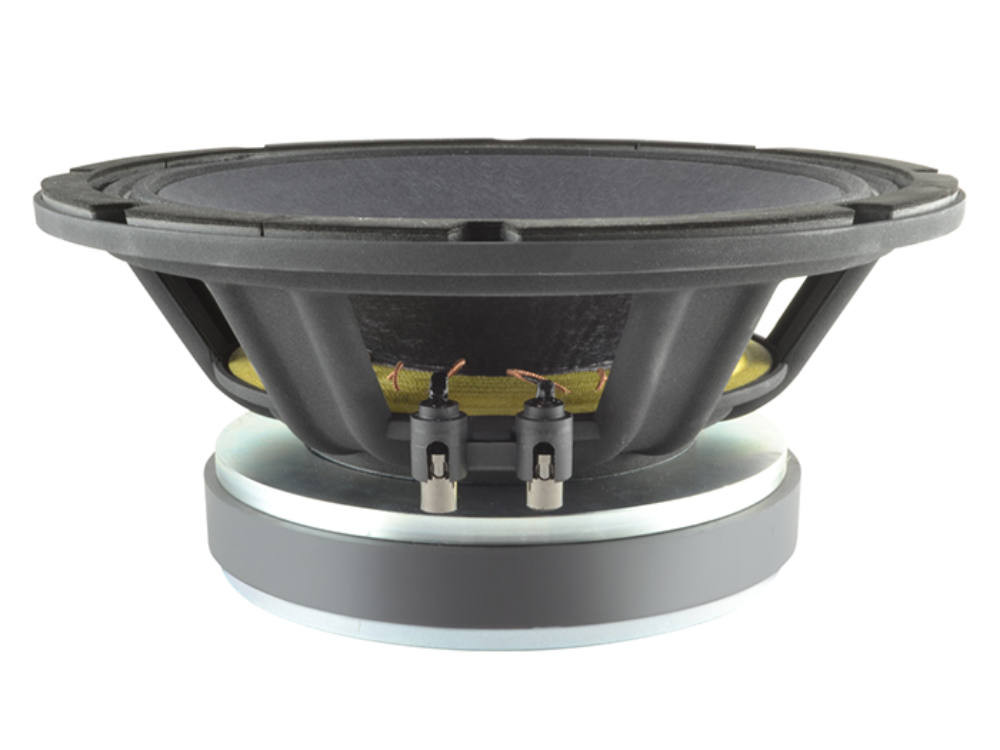

SICA 12 F 4 CP mid-woofer

SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
SICA 12 F 4 CP mid-woofer
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Orderable
Details
HIGHLIGHTS
Professional
Nominal overall diameter 12”
Nominal voice coil diameter 4"
Magnet material Ferrite
Basket material Aluminium Die-Cast
Power 1400 W
Sensitivity 97.8 dB

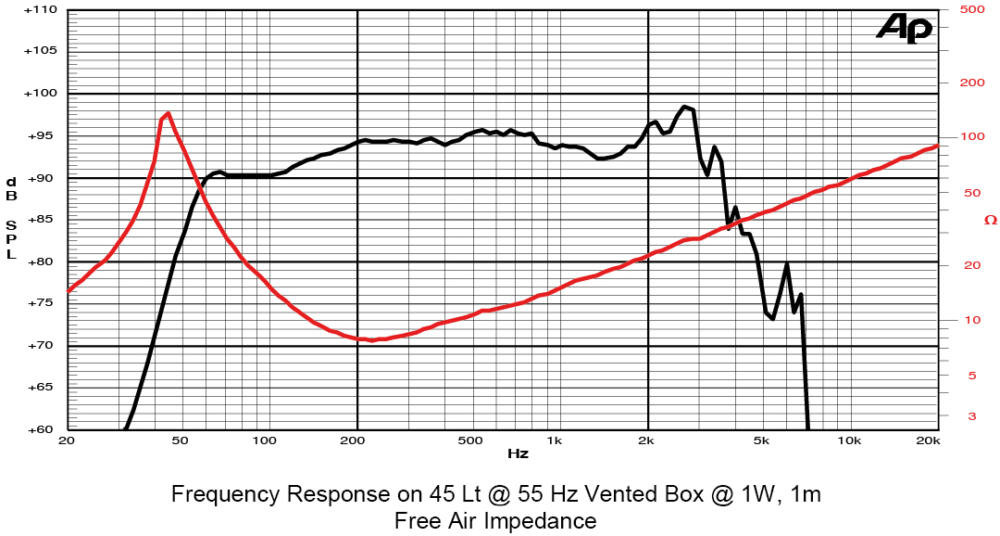

Frequency range 45-3000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter: 320 mm / 12 in
Nominal Impedence 8 Ω
Rated Power AES (1) 700 Watt
Continuous Program Power (2) 1400 W
Sensitivity @ 1W/1m (3) 97.8 dB
Voice Coil Diameter 100 mm / 4 in
Voice Coil Winding Depth 18 mm
Magnetic Gap Depth 10 mm
Flux Density 1.31 T
Magnet Weight 3300 g
Net Weight 11.7 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet Ferrite
Basket Material Aluminium Die-Cast
Voice Coil Winding Material Copper
Voice Coil Former Material Kapton
Cone Material Paper
Cone Treatment Humidity Resistant Pulp
Surround Material Treated Cloth
Dust Dome Material Solid Paper
MOUNTING INFORMATION
Overall Diameter 320 mm
Baffle Cutout Diameter 284 mm
Mounting Holes 8 holes 6x9 on Ø301 mm
Total Depth 147.3 mm
THIELE/SMALL PARAMETERS
Re 5.2 Ω
Qms 6.24
Qts 0.20
Cms 130 µm/N
Vas 52.0 l
X max +/- 6.0 mm
N 2.38 %
Fs 46.0 Hz
Qes 0.21
Mms 92.1 g
Bxl 26.01 Tm
Sd 530.9 cm²
X var +/- 10.0 mm
Le (1KHz) 1.33 mH
Info
Impedance, Z
8
Chassis diameter
12”
Article No.
SIC-Z008019
Weight
11.7 kg/db
Letöltések
Z008019.pdf
