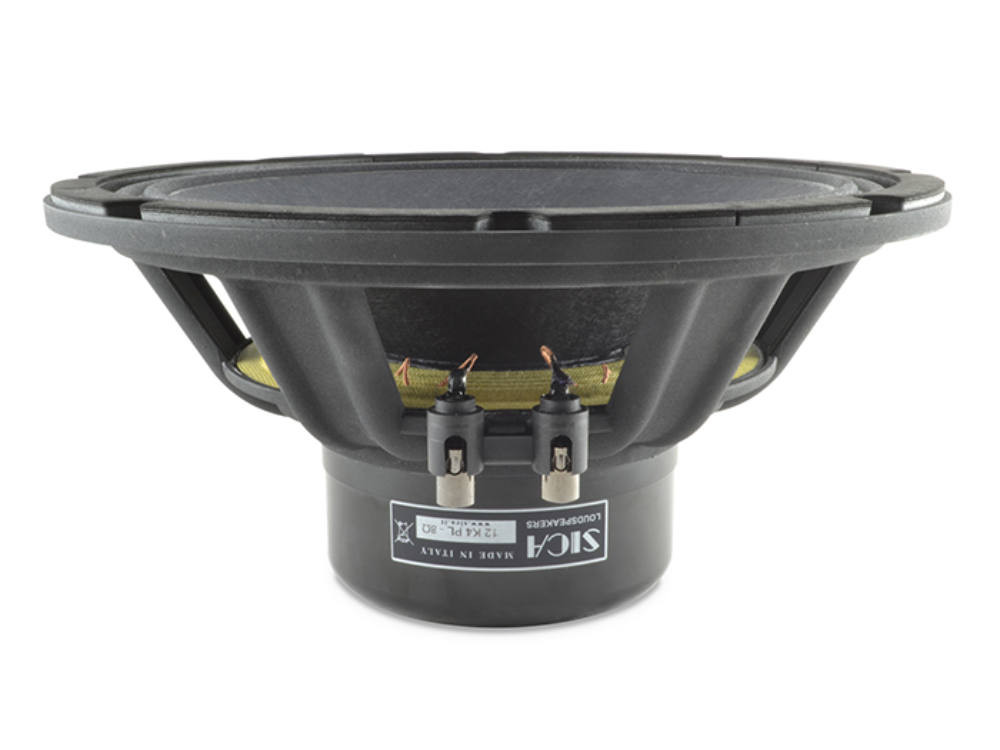

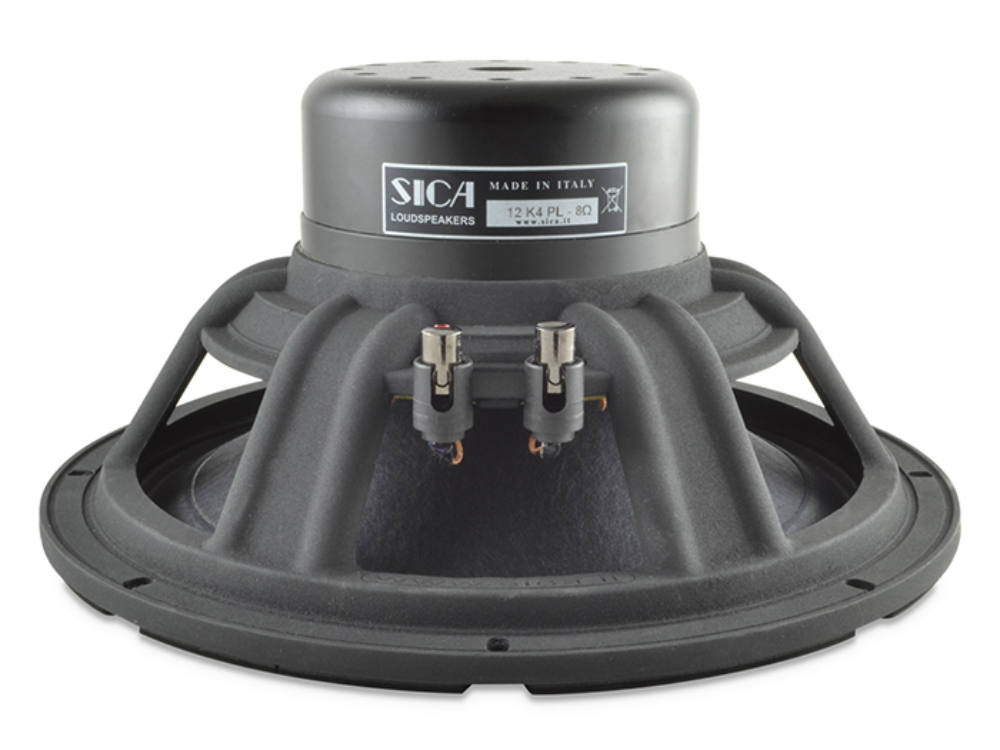

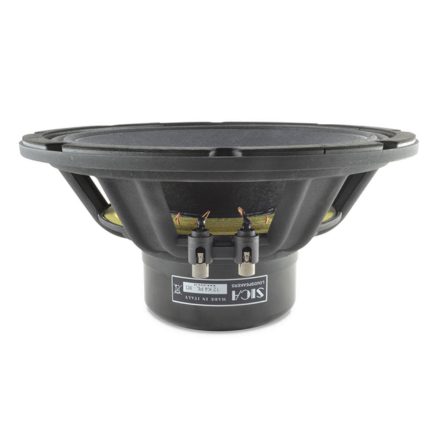

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

SICA 12 K 4 PL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

12 K 4 PL	Z008020
HIGHLIGHTS
Professional
Nominal overall diameter	12"
Nominal voice coil diameter	4"
Magnet material	Neodymium
Basket material	Aluminium Die-Cast
Power	2000 W
Sensitivity	97.1 dB
Frequency range	50-3000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter	320 mm / 12 in
Nominal Impedence	8 Ω
Rated Power AES (1)	1000 W
Continuous Program Power (2)	2000 W
Sensitivity @ 1W/1m (3)	97.1 dB
Voice Coil Diameter	100 mm / 4 in
Voice Coil Winding Depth	21 mm
Magnetic Gap Depth	12 mm
Flux Density	1.10 T
Magnet Weight	536 g
Net Weight	6.6 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper
MOUNTING INFORMATION
Overall Diameter	320 mm
Baffle Cutout Diameter	284 mm
Mounting Holes	8 holes 6x9 on Ø301 mm
Total Depth	154.8 mm
THIELE/SMALL PARAMETERS
Re	5.2 Ω
Qms	4.41
Qts	0.24
Cms	115 µm/N
Vas	46.3 l
X max	+/- 7.0 mm
N	1.99 %
Fs	48.0 Hz
Qes	0.25
Mms	93.6 g
Bxl	24.70 Tm
Sd	530.9 cm²
X var	+/- 9.0 mm
Le (1KHz)	0.74 mH

Info

Impedance, Z

8

Chassis diameter

12”

Article No.

SIC-Z008020

Weight

6.6 kg/db

Letöltések

Z008020.pdf
