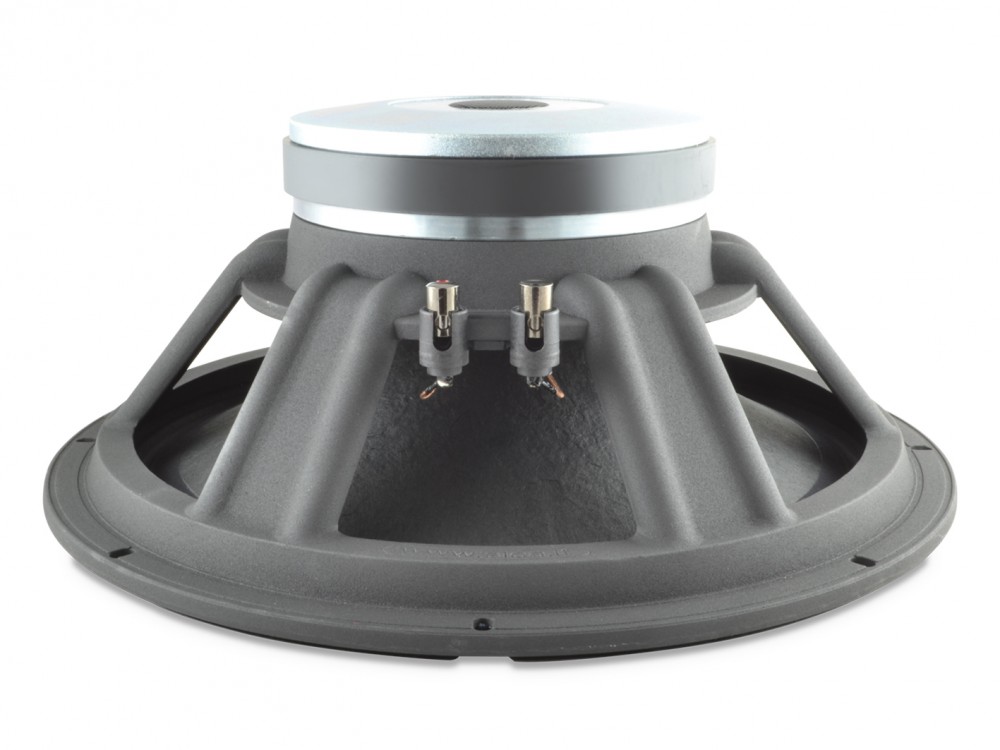

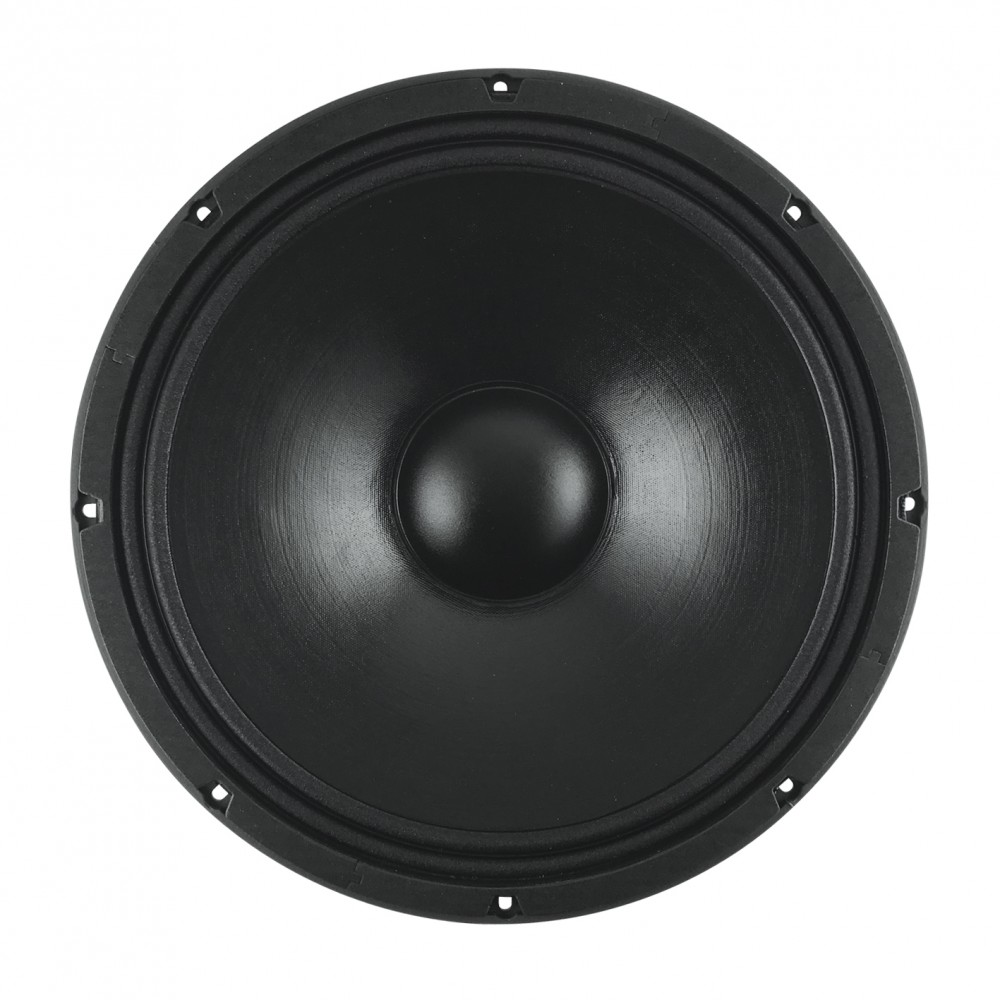

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

SICA 15 Fe 3 CP mid-woofer 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	388 mm / 15 in, 389 mm / 15 in
Nominal Impedance	8 Ω
Rated Power AES	400 W
Continuos Program Power	800 W
Sensitivity @ 1W/1m	99.4 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	17 mm
Magnetic Gap Depth	10 mm
Flux Density	1.18 T
Magnet Weight	1800 g
Net Weight	8.1 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Surface Waterproof Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	388 mm
Baffle Cutout Diameter	355 mm
Mounting Holes	8 holes 6×9 on Ø371 mm
Total Depth	161.0 mm

Thiele/Small Parameters

Re	5.2 Ω
Qms	9.52
Qts	0.33
Cms	164 µm/N
Vas	170.4 l
X max	+/- 5.5 mm
N	3.42 %
Fs	40.2 Hz
Qes	0.34
Mms	91 g
Bxl	19.10 Tm
Sd	855.3 cm²
X var	+/- 10.0 mm
Le (1KHz)	1.22 mH

Info

Impedance, Z

8

Chassis diameter

15”

Article No.

SIC-Z008308C

Weight

8.1 kg/db
