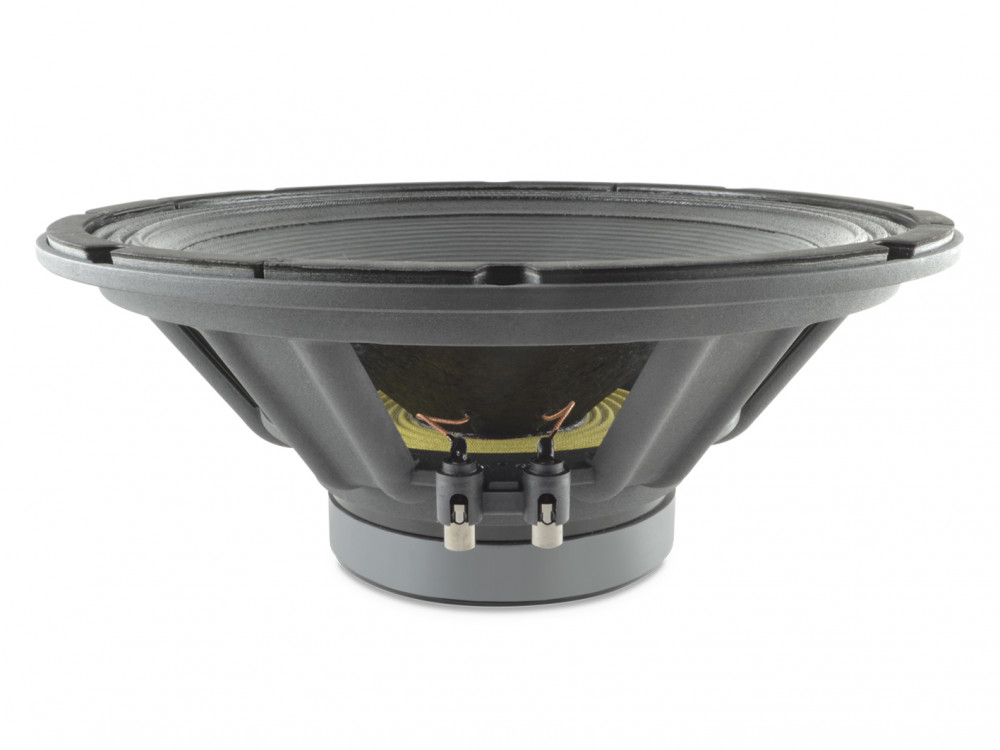

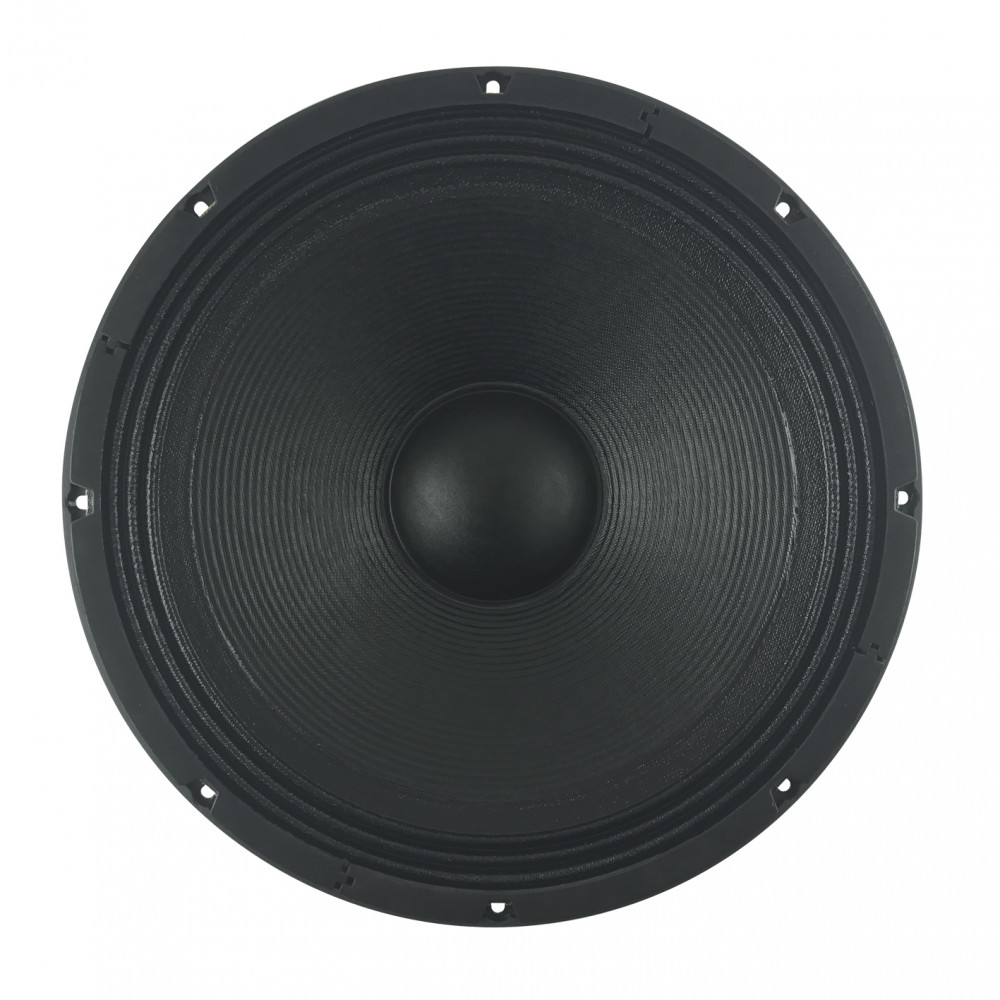

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

SICA 15 PFS 3 Woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	389 mm / 15 in
Nominal Impedance	8 Ω
Rated Power AES	500 W
Continuos Program Power	1000 W
Sensitivity @ 1W/1m	95.9 dB
Voice Coil Diameter	75 mm (3")
Voice Coil Winding Depth	24 mm
Magnetic Gap Depth	10 mm
Flux Density	1.08 T
Magnet Weight	1790 g
Net Weight	7.7 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	Total Waterproof Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	388 mm
Baffle Cutout Diameter	355 mm
Mounting Holes	8 holes 6×9 on Ø371 mm
Total Depth	163.0 mm

Thiele/Small Parameters

Re	5.1 Ω
Qms	3.24
Qts	0.45
Cms	130 µm/N
Vas	135.5 l
X max	+/- 7.0 mm
N	1.49 %
Fs	39.0 Hz
Qes	0.52
Mms	127.7 g
Bxl	17.50 Tm
Sd	855.3 cm²
X var	+/- 9.0 mm
Le (1KHz)	1.36 mH

Info

Impedance, Z

8

Chassis diameter

15”

Article No.

SIC-Z008314C

Weight

7.7 kg/db
