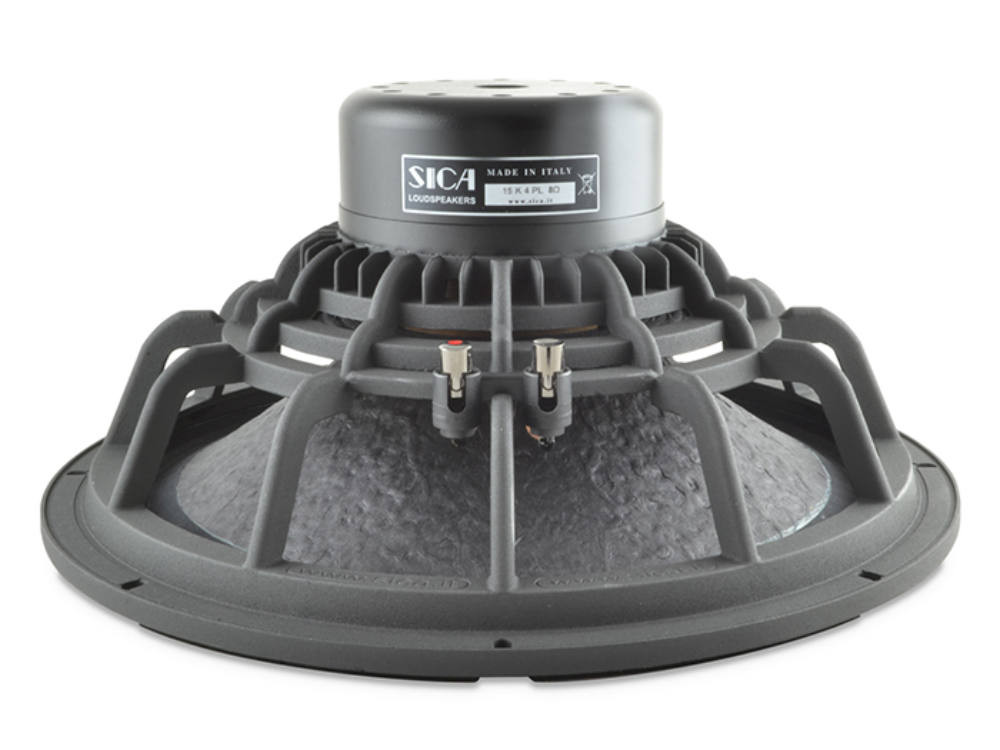

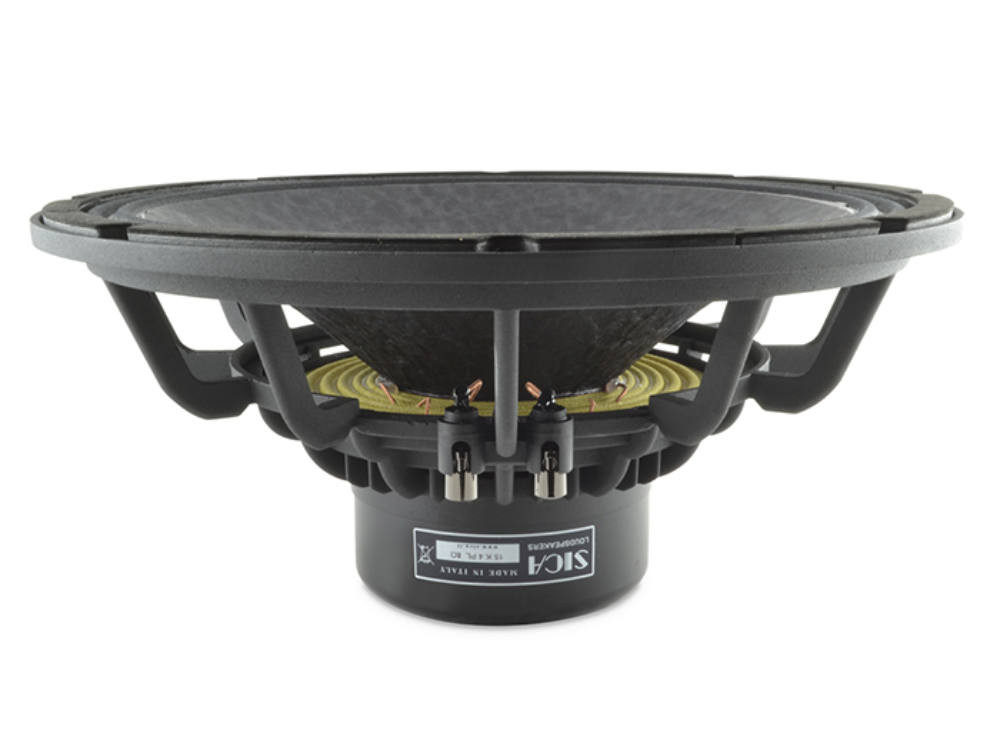

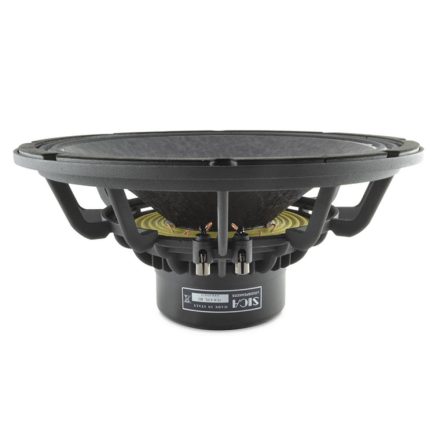

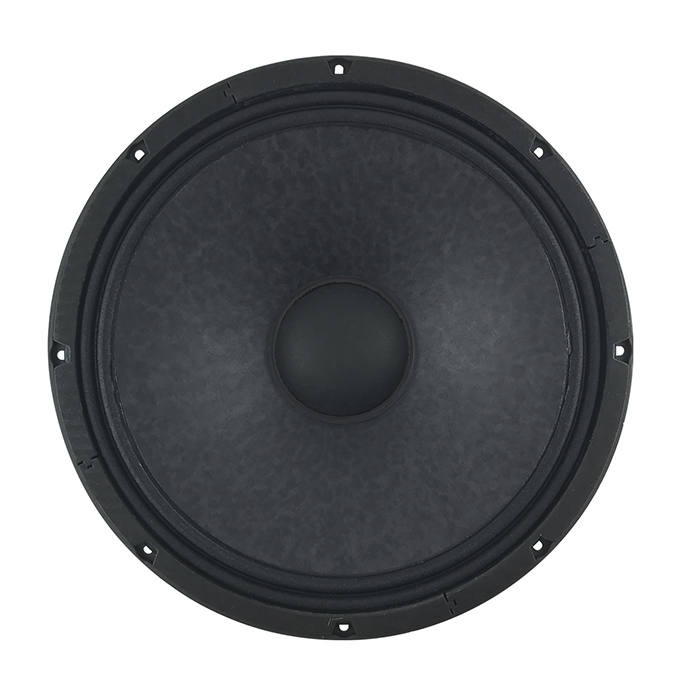

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

SICA 15 K 4 PL mid-woofer

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

Nominal Diameter	388 mm / 15 in
Nominal Impedance	8 Ω
Rated Power AES	1200 W
Continuos Program Power	2400 W
Sensitivity @ 1W/1m	99.2 dB
Voice Coil Diameter	100 mm (4")
Voice Coil Winding Depth	21 mm
Magnetic Gap Depth	12 mm
Flux Density	1.23 T
Magnet Weight	536 g
Net Weight	7.0 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Humidity Resistant Pulp
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	388 mm
Baffle Cutout Diameter	355 mm
Mounting Holes	8 holes 6×9 on Ø371 mm
Total Depth	176.8 mm

Thiele/Small Parameters

Re	5.2 Ω
Qms	13.80
Qts	0.29
Cms	109 µm/N
Vas	105.0 l
X max	+/- 6.5 mm
N	3.27 %
Fs	45.2 Hz
Qes	0.30
Mms	118 g
Bxl	24.20 Tm
Sd	855.3 cm²
X var	+/- 10.5 mm
Le (1KHz)	0.84 mH

Info

Impedance, Z

8

Chassis diameter

15”

Article No.

SIC-Z008339

Weight

5 kg/db
