SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
14.21 € excl. VAT

SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω

SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
SICA LP 38x50.18/N5 TW Dome Tweeter 8Ω
Manufacturer
Sica
Further data
In stock
14.21 € excl. VAT
Details
General Specifications
TW Nominal Diameter

38×50 mm
Nominal Impedance

8 Ω
Rated Power AES

12 W
Continuos Program Power

24 W
Rated Noise Power

50 W
Sensitivity @ 1W/1m

91.1 dB
Voice Coil Diameter

18 mm (0.7")
Voice Coil Winding Depth

1.7 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.10 T
DC Resistance

5.8 Ω
Resonance Frequency

2.2 kHz
Magnet Weight

5 g
Net Weight

0.03 Kg
Recommended Crossover Frequency

4.5 kHz
Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Copper
Voice Coil Former Material

Epotex
Ferrofluid in Air Gap

Yes
Diaphragm

Treated Silk
Flange

Nylon Fiberglass Doped
Spare Part Code

–

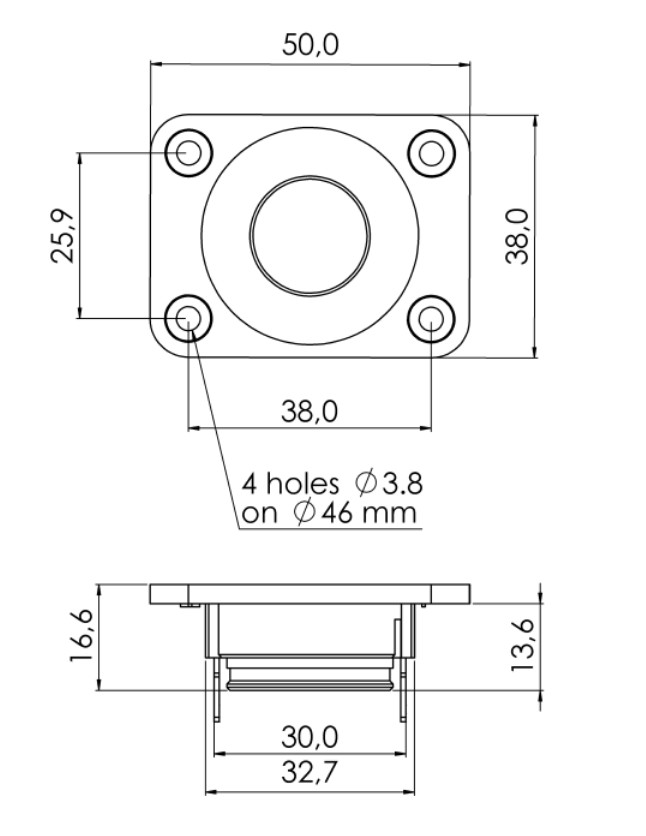

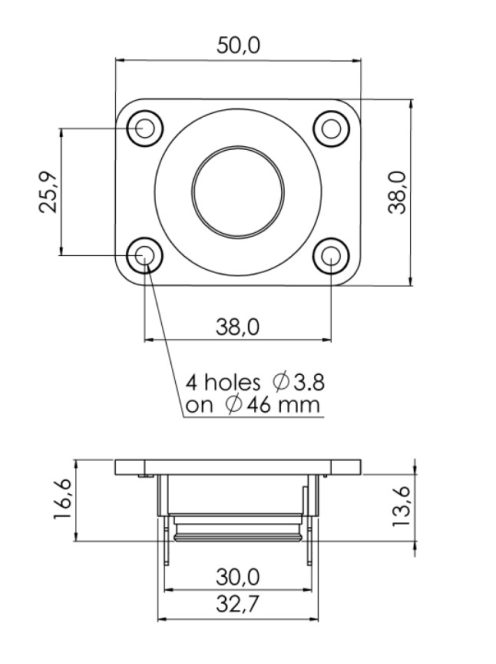

Mounting Information
Overall Diameter

38×50 mm
Baffle Cutout Diameter

34 mm
Mounting Holes

4 holes Ø3.8 on Ø46 mm
Total Depth

16.6 mm
Info
Impedance, Z
8
Article No.
SIC-Z008701
Weight
30 g/db
