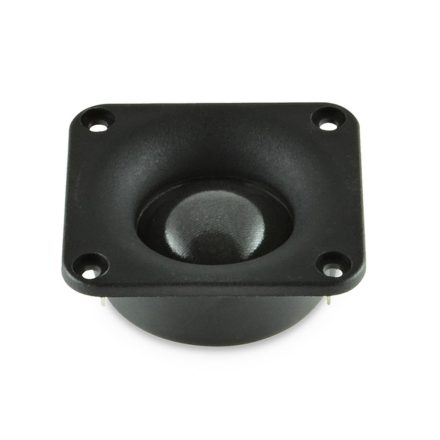

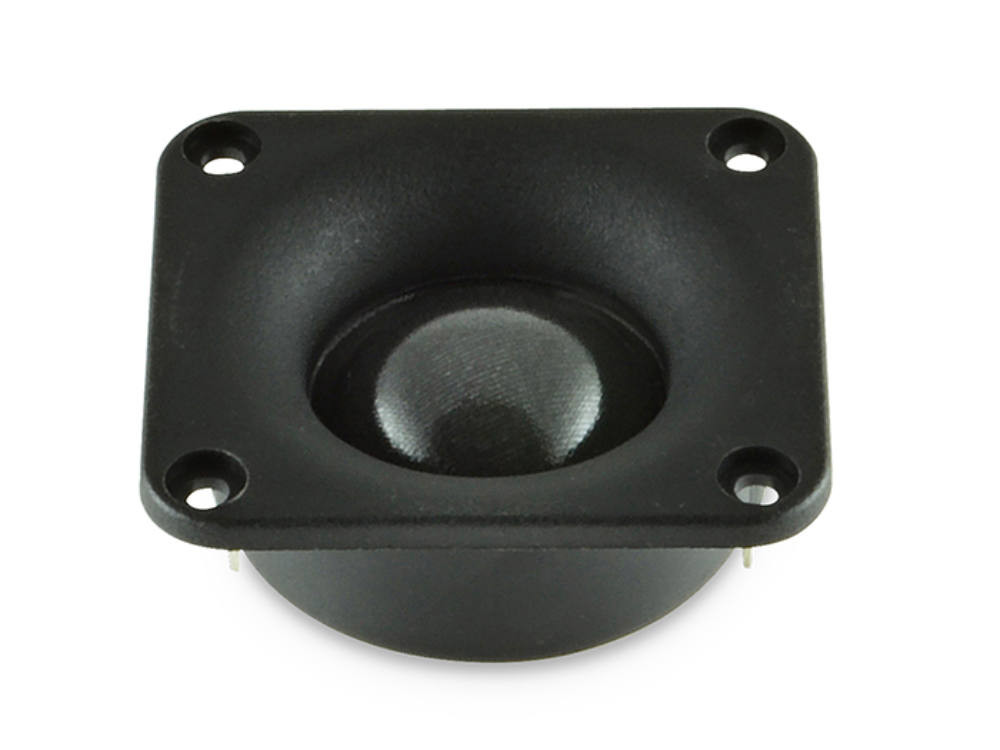

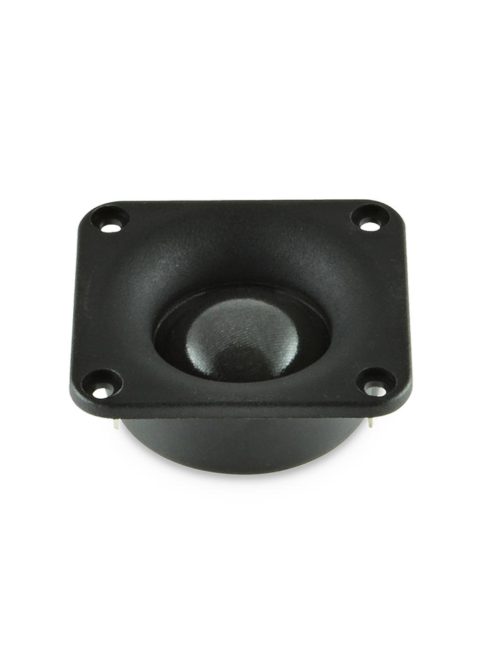

SICA LP 53x58.28/N20 TW Dome Tweeter

SICA LP 53x58.28/N20 TW Dome Tweeter
SICA LP 53x58.28/N20 TW Dome Tweeter
SICA LP 53x58.28/N20 TW Dome Tweeter
SICA LP 53x58.28/N20 TW Dome Tweeter
SICA LP 53x58.28/N20 TW Dome Tweeter
SICA LP 53x58.28/N20 TW Dome Tweeter
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Orderable
Details
General Specifications
TW Nominal Diameter

53×58 mm
Nominal Impedance

8 Ω
Rated Power AES

20 W
Continuos Program Power

40 W
Rated Noise Power

80 W
Sensitivity @ 1W/1m

95.8 dB
Voice Coil Diameter

28 mm (1.1")
Voice Coil Winding Depth

2.7 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.37 T
DC Resistance

6.0 Ω
Resonance Frequency

1.5 KHz
Magnet Weight

20 g
Net Weight

0.08 Kg
Recommended Crossover Frequency

2.5 Khz
Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Aluminium
Ferrofluid in Air Gap

Yes
Diaphragm

Treated Silk
Flange

Nylon Fiberglass Doped
Spare Part Code

–
Mounting Information
Overall Diameter

53×58 mm
Baffle Cutout Diameter

49 mm
Mounting Holes

4 holes Ø3.8 on Ø62.3 mm
Total Depth

23.9 mm
Info
Impedance, Z
8
Article No.
SIC-Z008985
Weight
80 g/db
