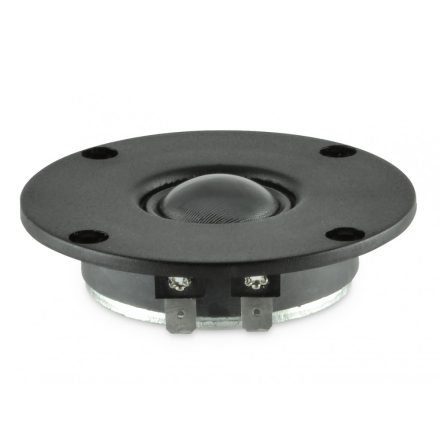

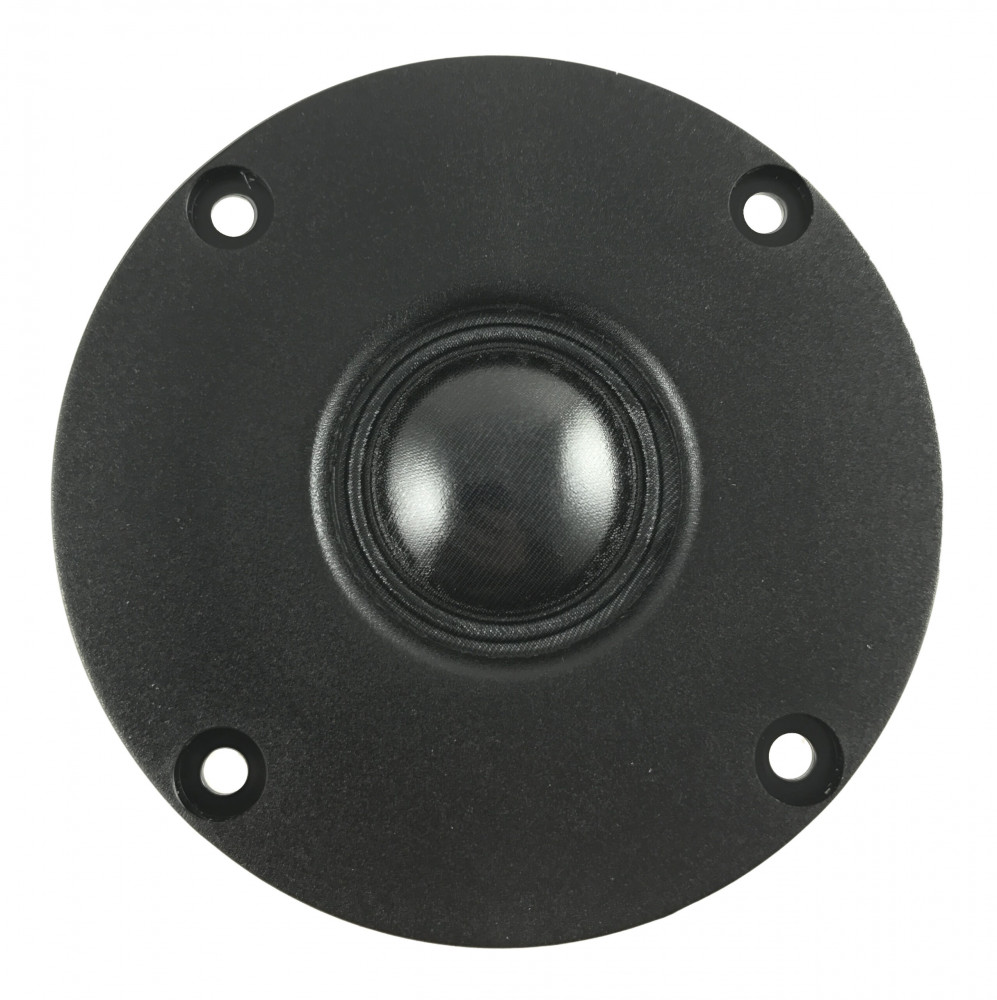

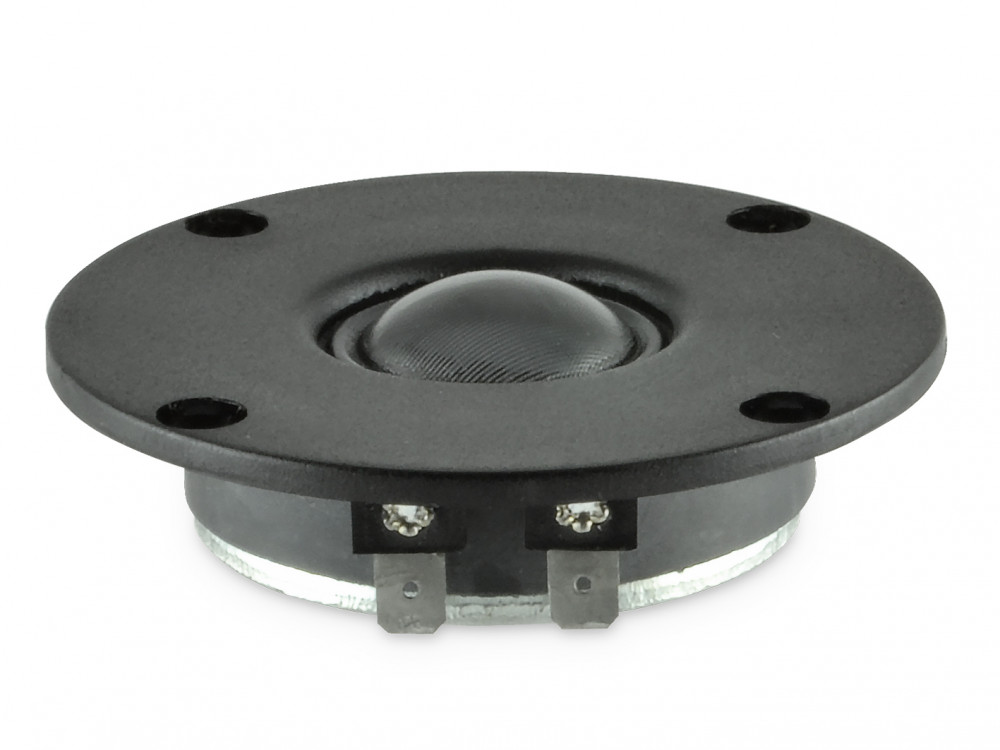

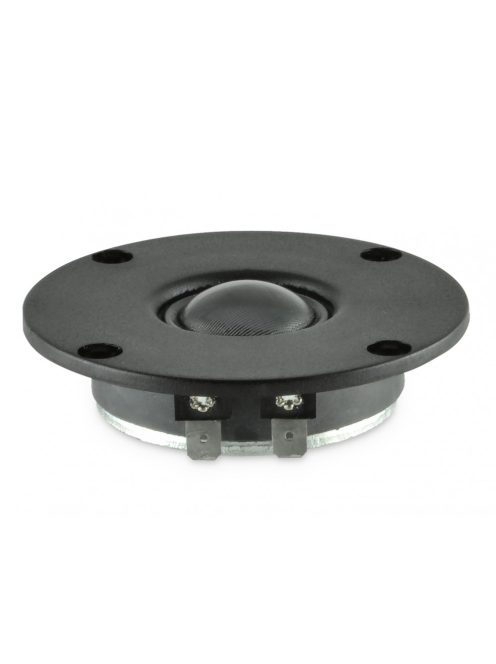

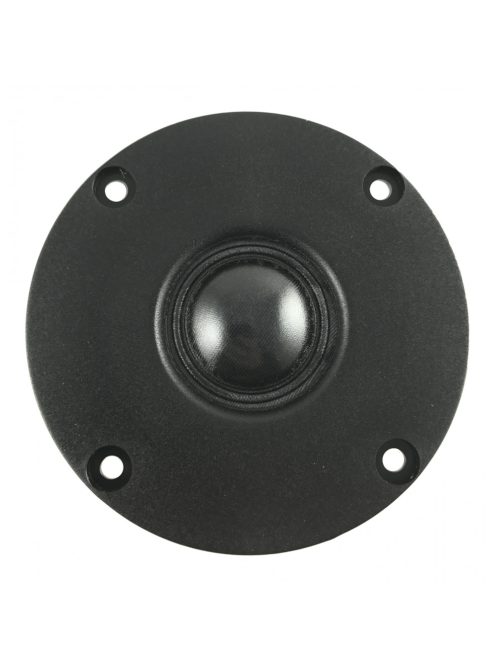

SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
22.96 € excl. VAT

SICA LP 85.25/95 TW Dome Tweeter 8Ω

SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
SICA LP 85.25/95 TW Dome Tweeter 8Ω
Manufacturer
Sica
Further data
In stock
22.96 € excl. VAT
Details
General Specifications
TW Nominal Diameter

85 mm
Nominal Impedance

8 Ω
Rated Power AES

20 W
Continuos Program Power

40 W
Rated Noise Power

80 W
Sensitivity @ 1W/1m

89.8 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

1.8 mm
Magnetic Gap Depth

3.0 mm
Flux Density

1.06 T
DC Resistance

6.3 Ω
Resonance Frequency

1.10 kHz
Magnet Weight

95 g
Net Weight

0.26 Kg
Recommended Crossover Frequency

2.5 Khz
Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Copper
Voice Coil Former Material

Aluminium
Ferrofluid in Air Gap

Yes
Diaphragm

Treated Silk
Flange

ABS
Spare Part Code

–

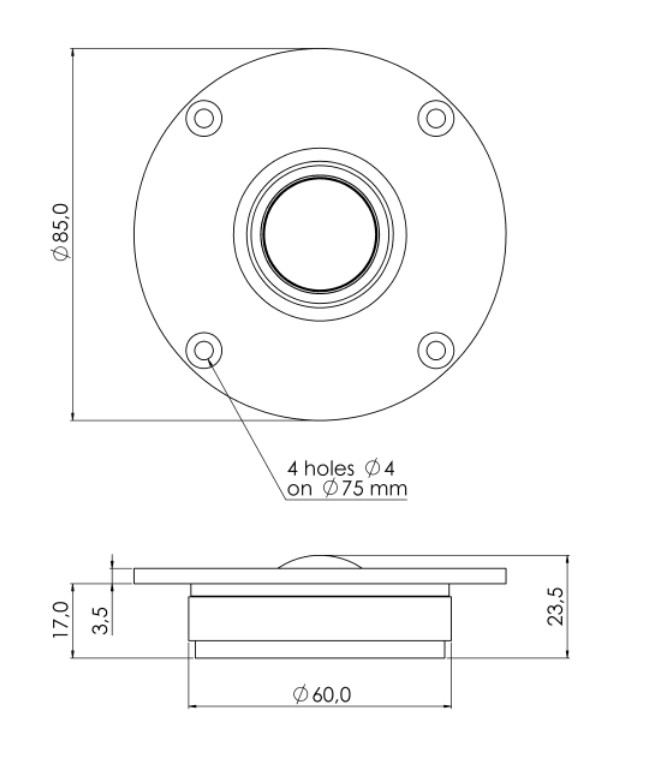

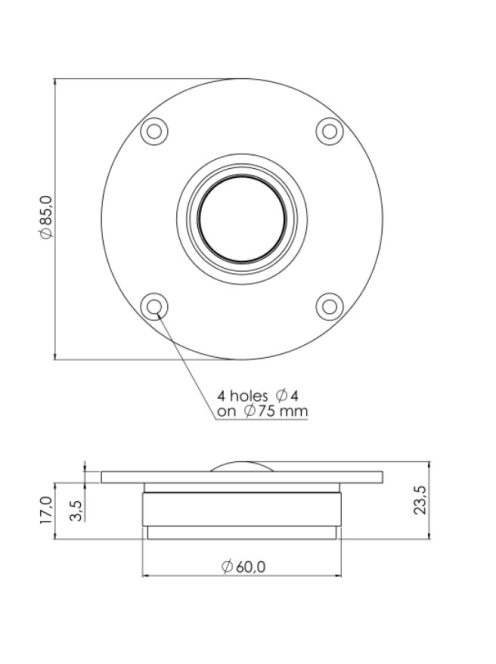

Mounting Information
Overall Diameter

85 mm
Baffle Cutout Diameter

62 mm
Mounting Holes

4 holes Ø4on Ø752 mm
Total Depth

23.5 mm
Info
Impedance, Z
8
Article No.
SIC-Z009040C
Weight
260 g/db
