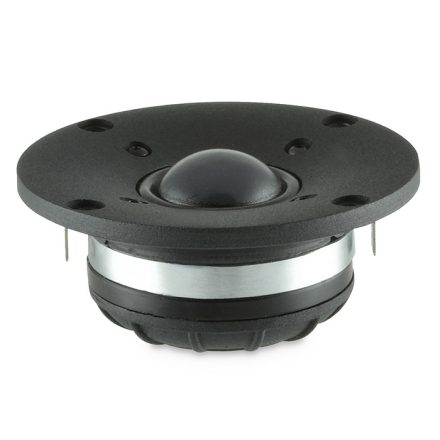

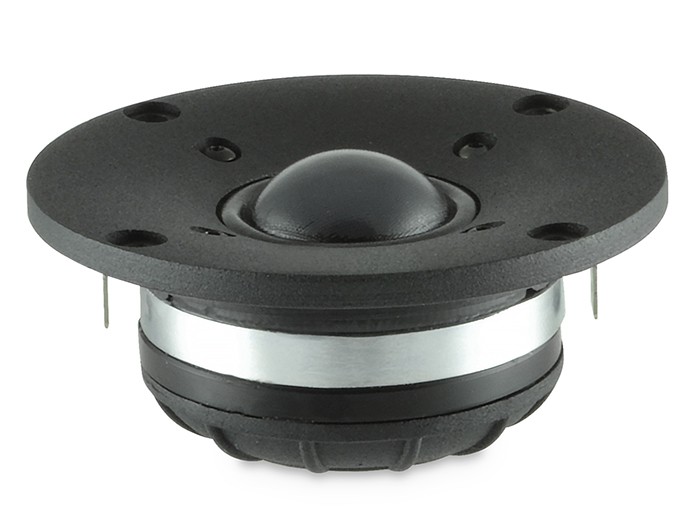

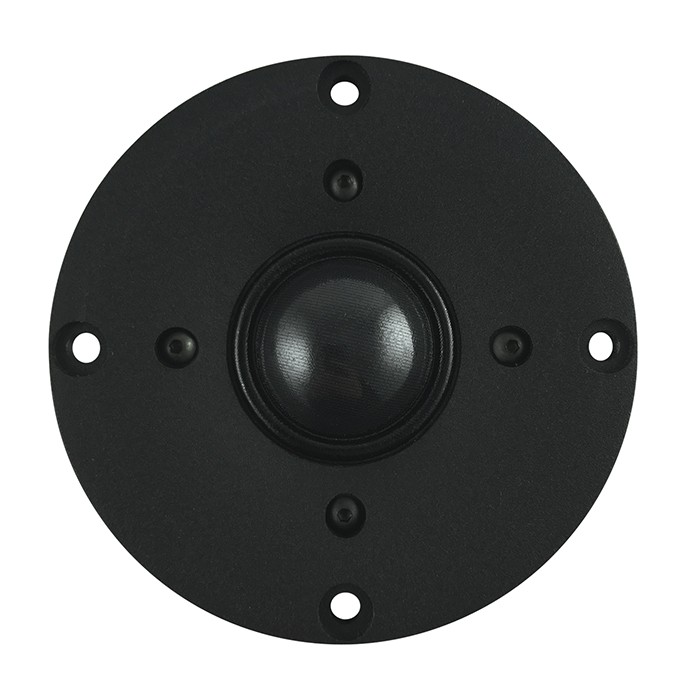

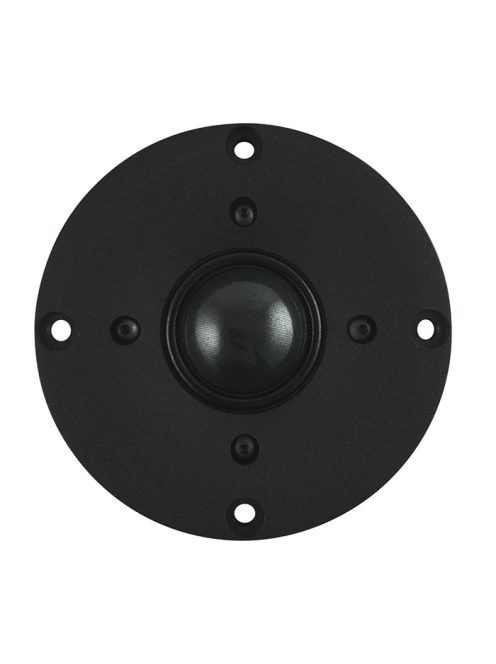

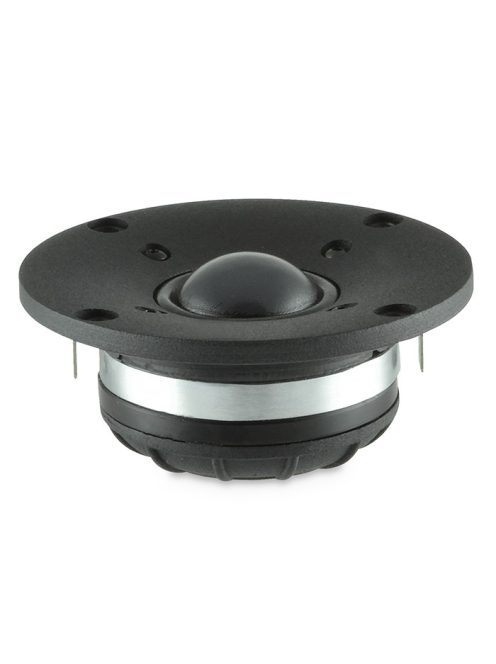

SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
80.36 € excl. VAT

SICA LP 90.28/N92 TW Dome Tweeter 8Ω

SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
SICA LP 90.28/N92 TW Dome Tweeter 8Ω
Manufacturer
Sica
Further data
In stock
80.36 € excl. VAT
Details
HIGHLIGHTS
Dome Tweeter
Nominal Diameter 90 mm
Nominal voice coil diameter 1.1"
Magnet material Neodymium
Sensitivity 94.4 dB
Power

120 W
GENERAL SPECIFICATIONS
Nominal Diameter 90 mm
Nominal Impedence 8 Ω
Rated Power AES (1) 25 W
Continuous Program Power (2) 50 W
Rated Noise Power 120 W
Sensitivity @ 1W/1m (3) 94.4 dB
Voice Coil Diameter 28 mm / 1.1 in
Voice Coil Winding Depth 2.7 mm
Magnetic Gap Depth 3.0 mm
Flux Density 1.80 T
DC Resistance 6.0 Ω
Resonance Frequency 0.6 kHz
Magnet Weight 92 g
Net Weight 0.41 kg
Recommended Crossover Frequency 1.5 kHz
CONSTRUCTIVE CHARACTERISTICS
Magnet Neodymium
Voice Coil Winding Material Aluminium Flat Wire
Voice Coil Former Material Aluminium
Ferrofluid in Air Gap No
Diaphragm Treated Silk
Flange Aluminium
Spare Part Code Z009405

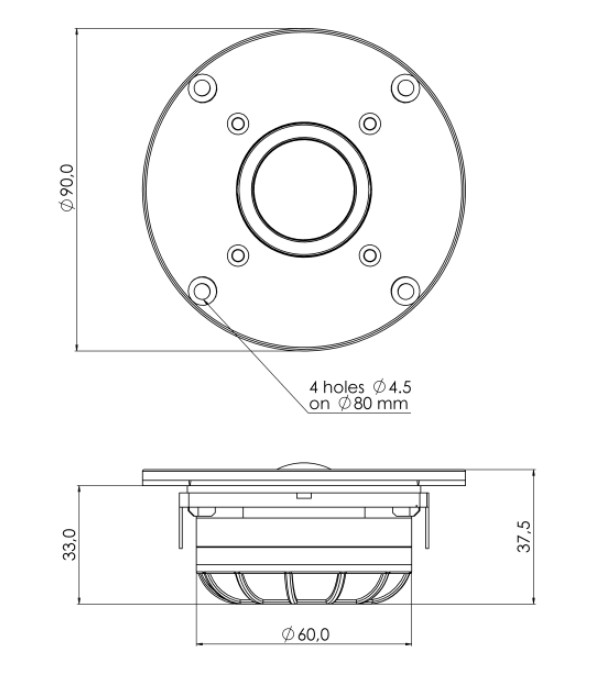

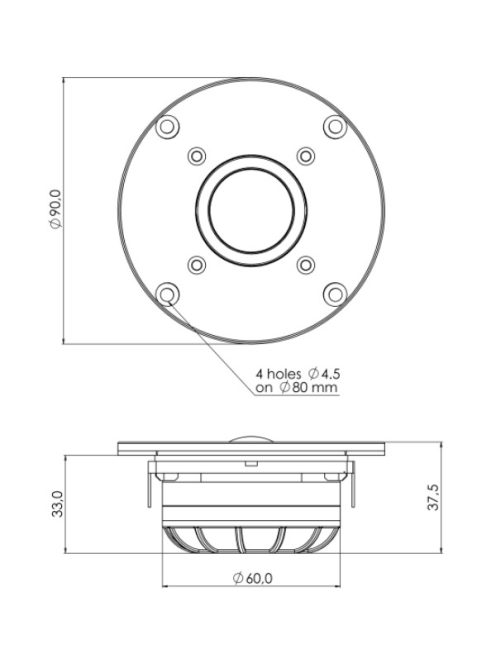

MOUNTING INFORMATION
Overall Diameter 90 mm
Baffle Cutout Diameter 67 mm
Mounting Holes 4 holes Ø4.5 mm on Ø80 mm
Total Depth 37.5 mm
Info
Impedance, Z
8
Article No.
SIC-Z009160C
Weight
410 g/db
