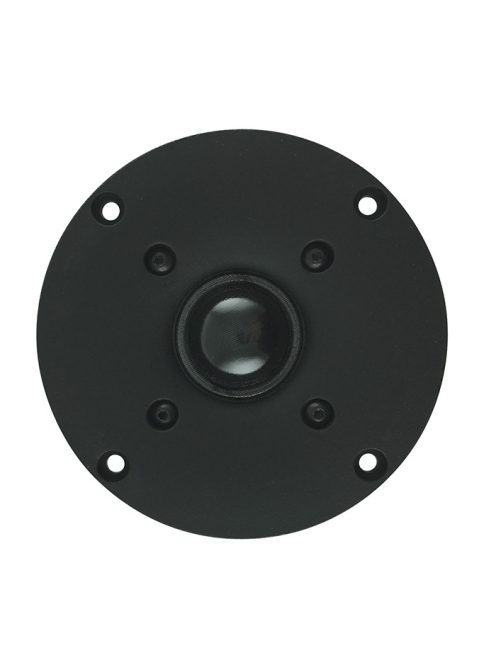

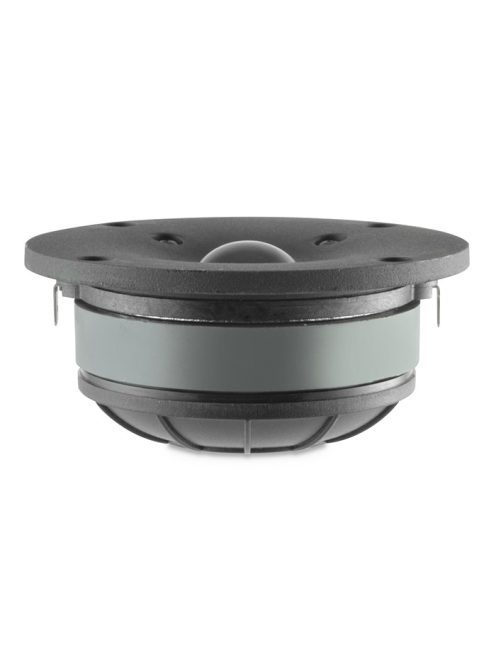

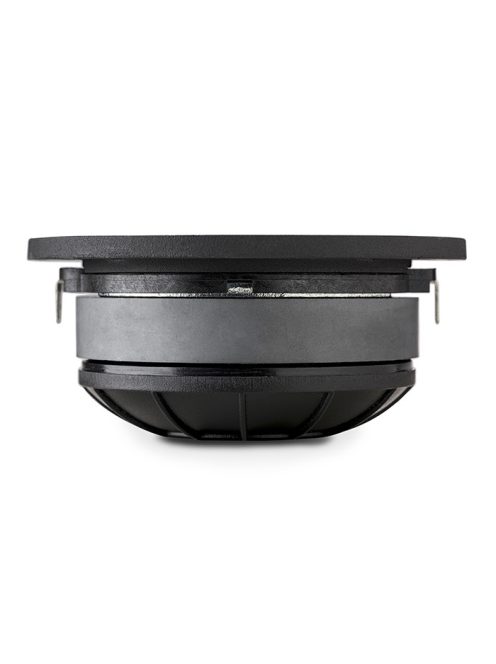

SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
56.64 € excl. VAT

SICA LP 110.28/380 TW Dome Tweeter 8Ω

SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
SICA LP 110.28/380 TW Dome Tweeter 8Ω
Manufacturer
Sica
Further data
In stock
56.64 € excl. VAT
Details

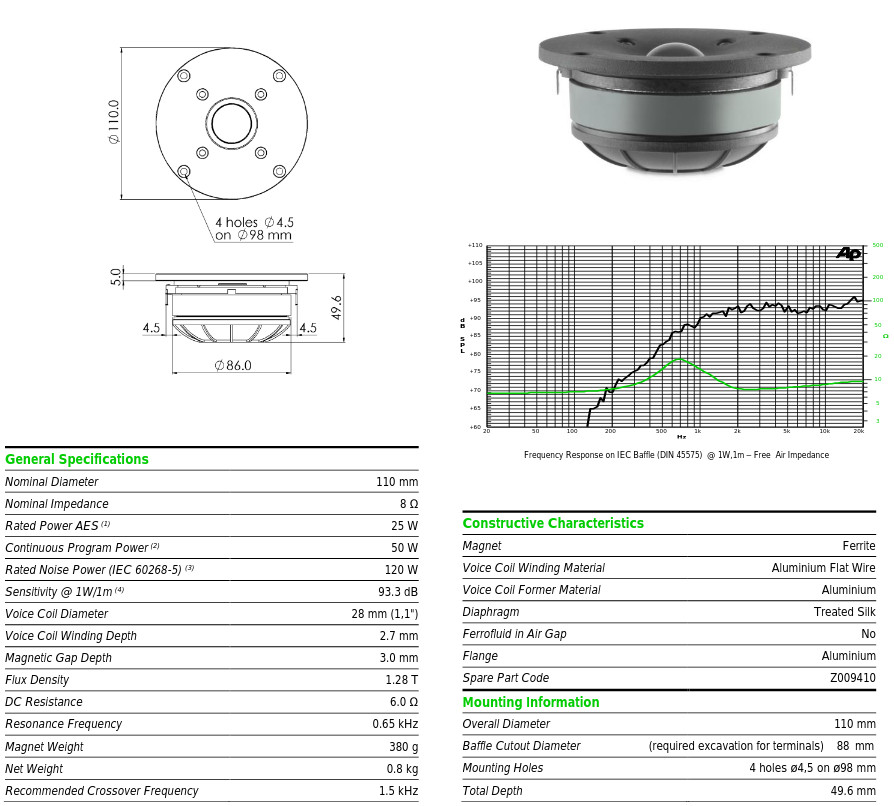

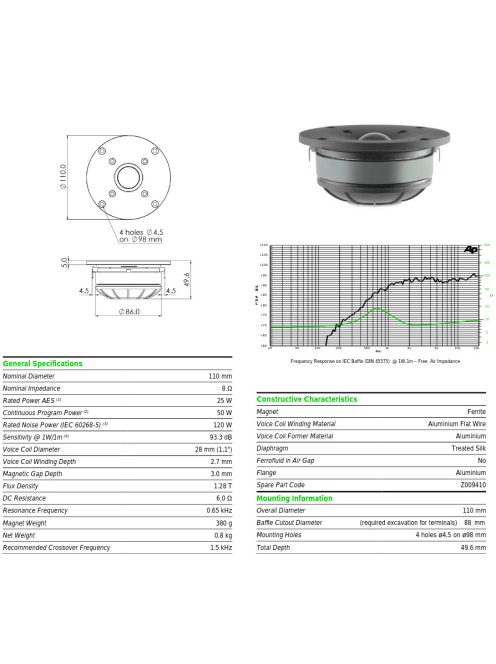

General Specifications
TW Nominal Diameter

110 mm
Nominal Impedance

8 Ω
Rated Power AES

25 W
Continuos Program Power

50 W
Rated Noise Power

120 W
Sensitivity @ 1W/1m

93.3 dB
Voice Coil Diameter

28 mm (1.1")
Voice Coil Winding Depth

2.7 mm
Magnetic Gap Depth

3.0 mm
Flux Density

1.28 T
DC Resistance

6.0 Ω
Resonance Frequency

0.65 KHz
Magnet Weight

380 g
Net Weight

0.8 Kg
Recommended Crossover Frequency

1.5 KHz
Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Aluminium
Ferrofluid in Air Gap

No
Diaphragm

Treated Silk
Flange

Aluminium
Spare Part Code

Z009410

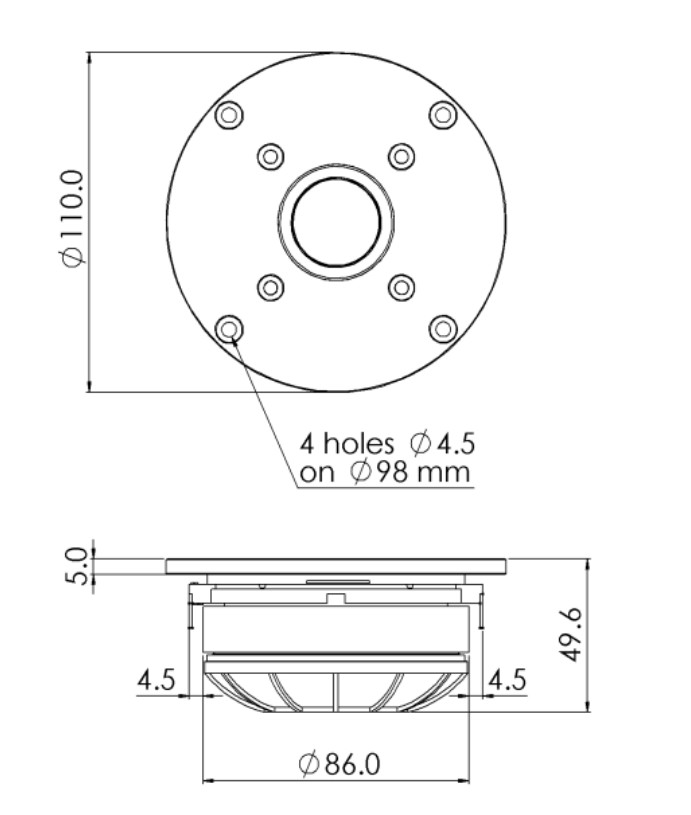

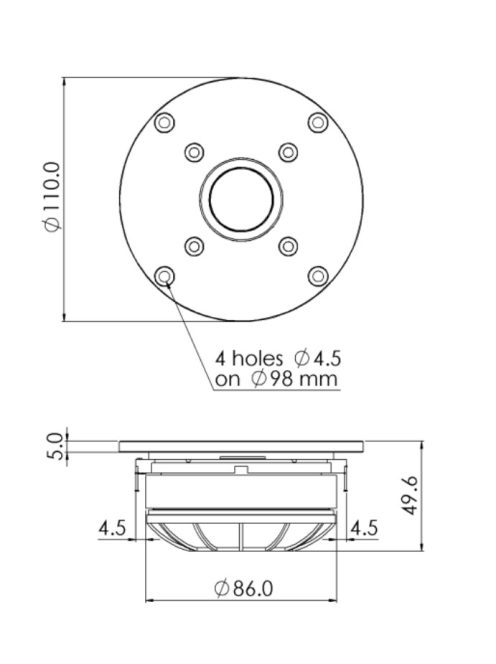

Mounting Information
Overall Diameter

110 mm
Baffle Cutout Diameter

88 mm
Mounting Holes

4 holes Ø4.5 on Ø98 mm
Total Depth

49.6 mm
Info
Impedance, Z
8
Article No.
SIC-Z009240C
Weight
800 g/db
