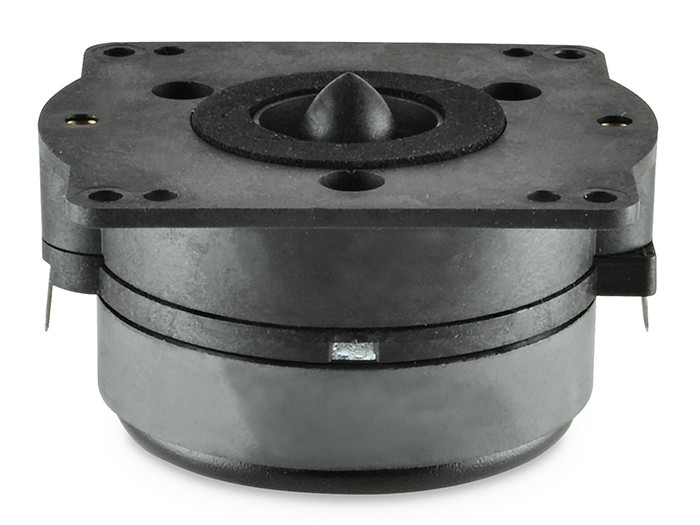

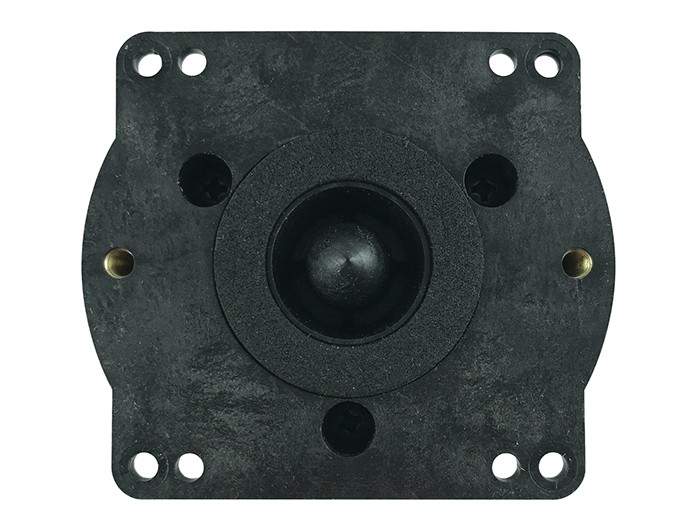

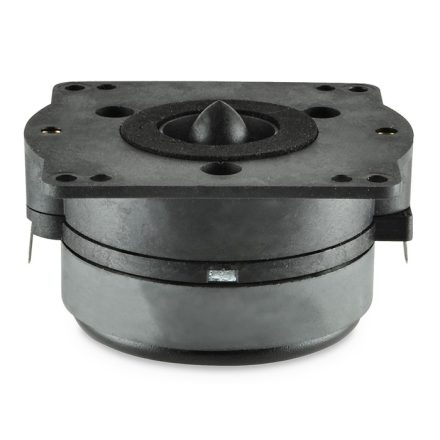

SICA CD 78.26/245 Compression Driver 8Ω

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

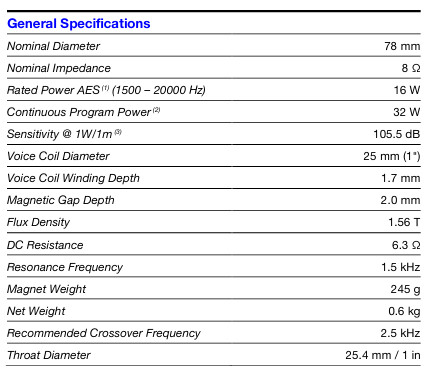

General Specifications

CD Nominal Diameter	78 mm
Nominal Impedance	8 Ω
CD Rated Power AES	16 W
CD Continuous Program Power	32 W
Sensitivity @ 1W/1m	105.5 dB
Voice Coil Diameter	25 mm (1")
Voice Coil Winding Depth	1.7 mm
Magnetic Gap Depth	2.0 mm
Flux Density	1.56 T
DC Resistance	6.3 Ω
Resonance Frequency	1.5 KHz
Magnet Weight	245 g
Net Weight	0.6 Kg
Recommended Crossover Frequency	2.5 Khz
Throat Diameter	25.4 mm (1")

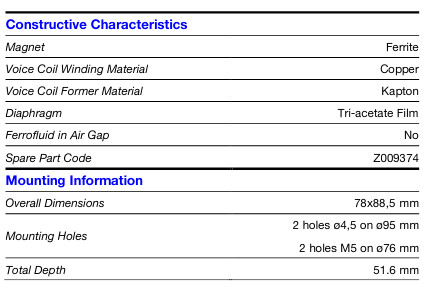

Constructive Characteristics

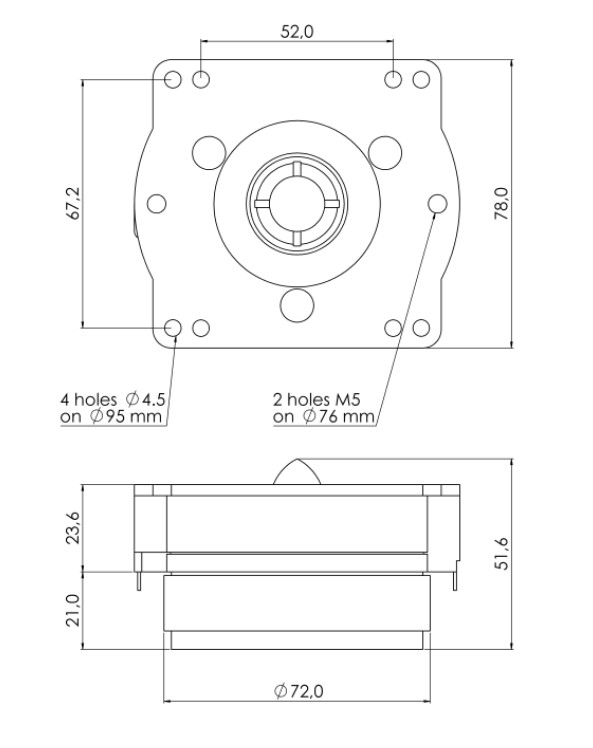

Mounting Information

Info

Impedance, Z

Article No.

SIC-Z009442C

Weight

600 g/db

Letöltések

Z009442.pdf
