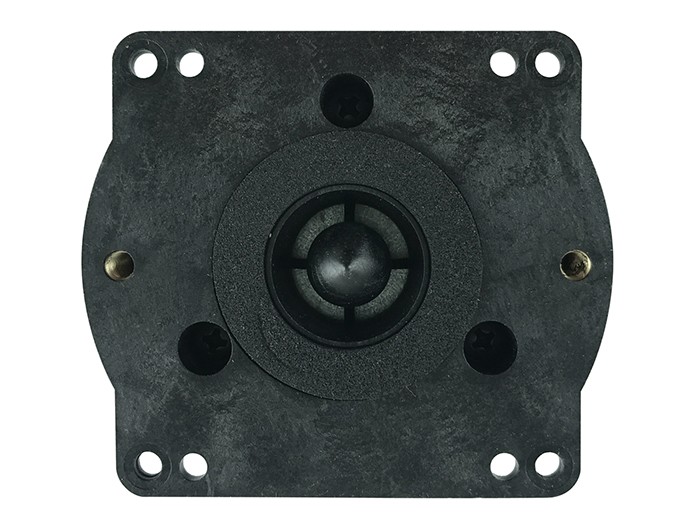

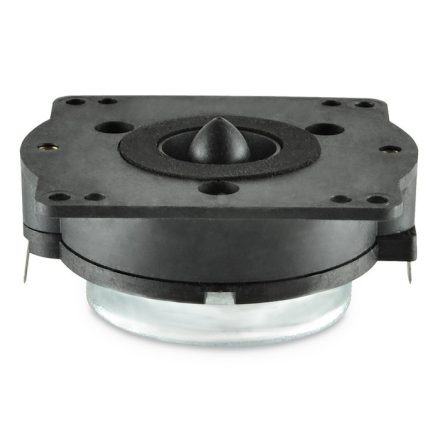

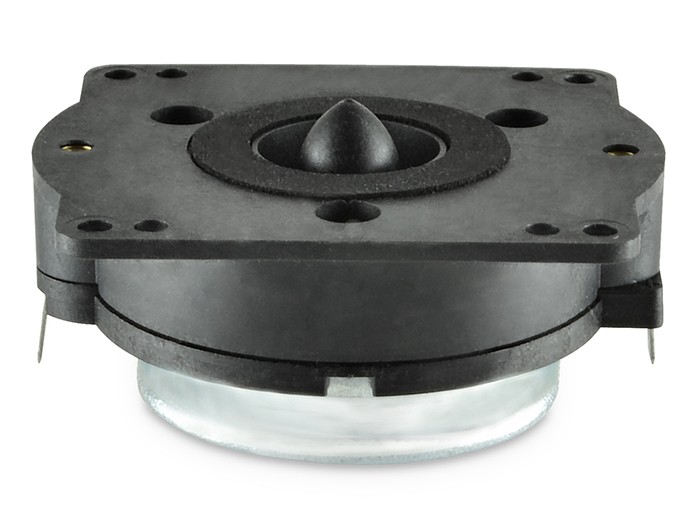

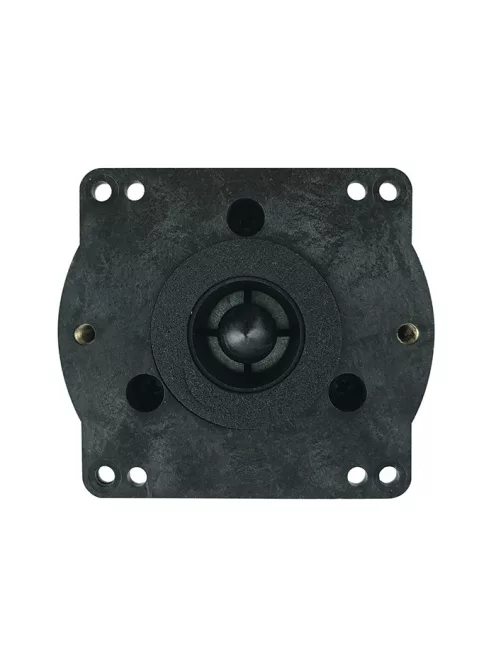

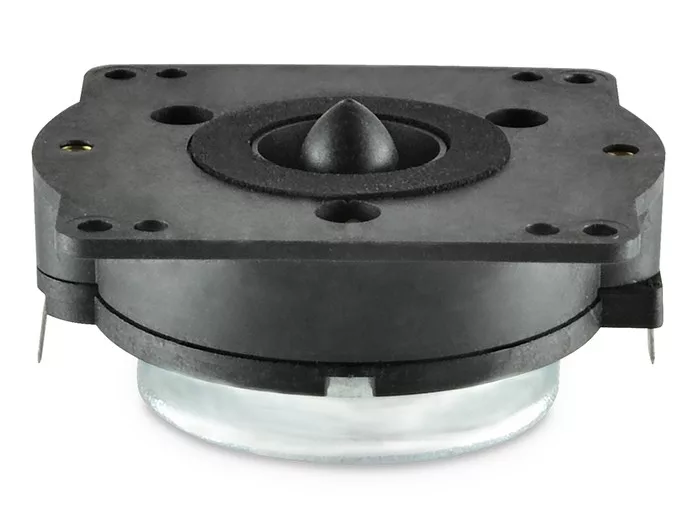

SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
71.18 € excl. VAT

SICA CD 78.26/N92, 8 Ohm Compression Driver

SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
SICA CD 78.26/N92, 8 Ohm Compression Driver
Manufacturer
Sica
Further data
In stock
71.18 € excl. VAT
Details

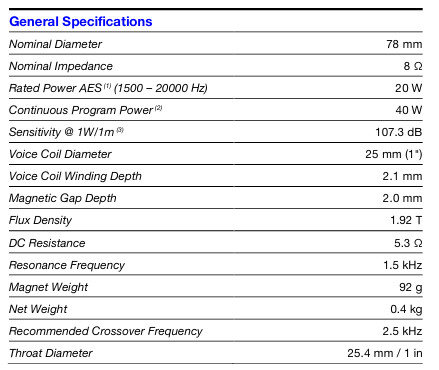

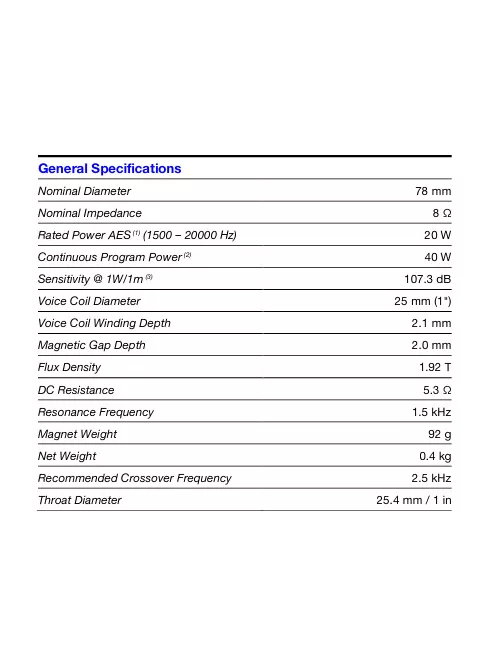

General Specifications
CD Nominal Diameter

78 mm
Nominal Impedance

8 Ω
CD Rated Power AES

20 W
CD Continuous Program Power

40 W
Sensitivity @ 1W/1m

107.3 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

2.1 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.92 T
DC Resistance

5.3 Ω
Resonance Frequency

1.5 KHz
Magnet Weight

92 g
Net Weight

0.4 Kg
Recommended Crossover Frequency

2.5 Khz
Throat Diameter

25.4 mm (1")

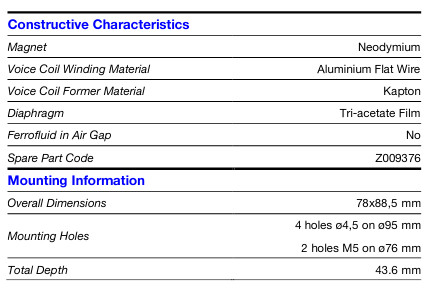

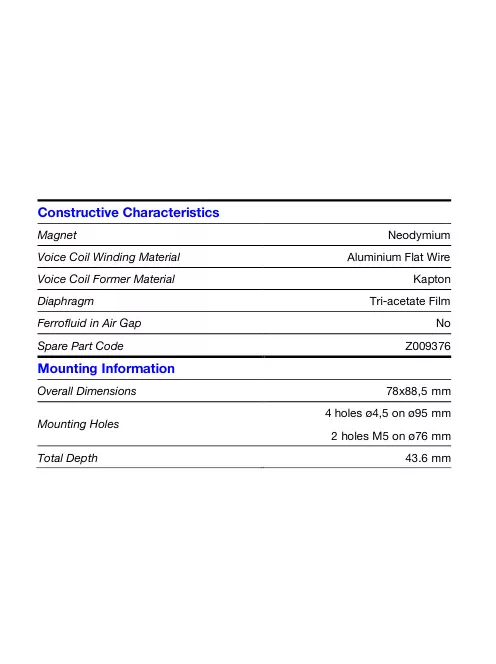

Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

Tri-acetate film
Ferrofluid in Air Gap

No
Spare Part Code

Z009376

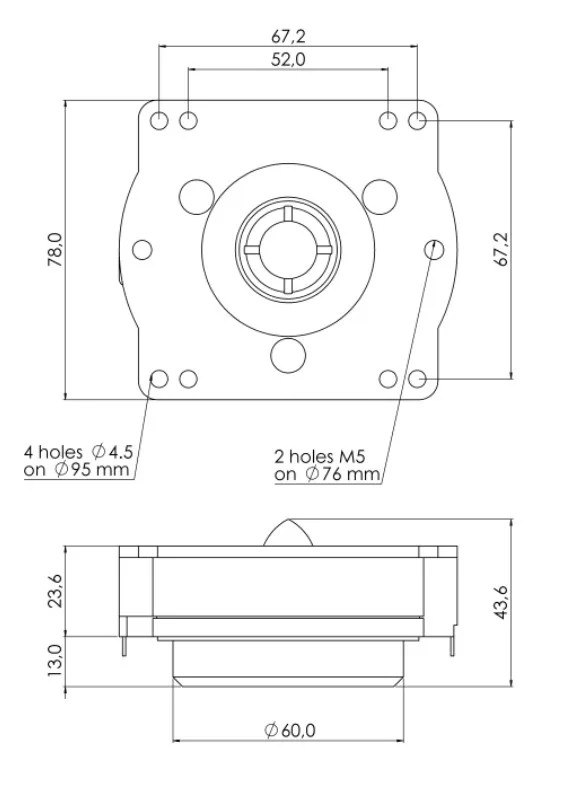

Mounting Information
Overall Diameter

78×88,5 mm
Mounting Holes

4 holes Ø4.5 on Ø95 mm
Mounting Holes 2

2 holes M5 on Ø76 mm
Total Depth

43.6 mm
Info
Impedance, Z
8
Article No.
SIC-Z009450C
Weight
400 g/db
Letöltések
Z009450.pdf
