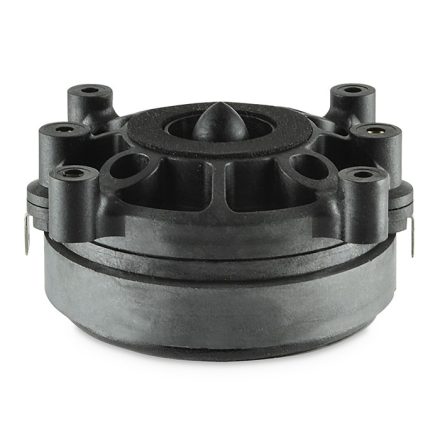

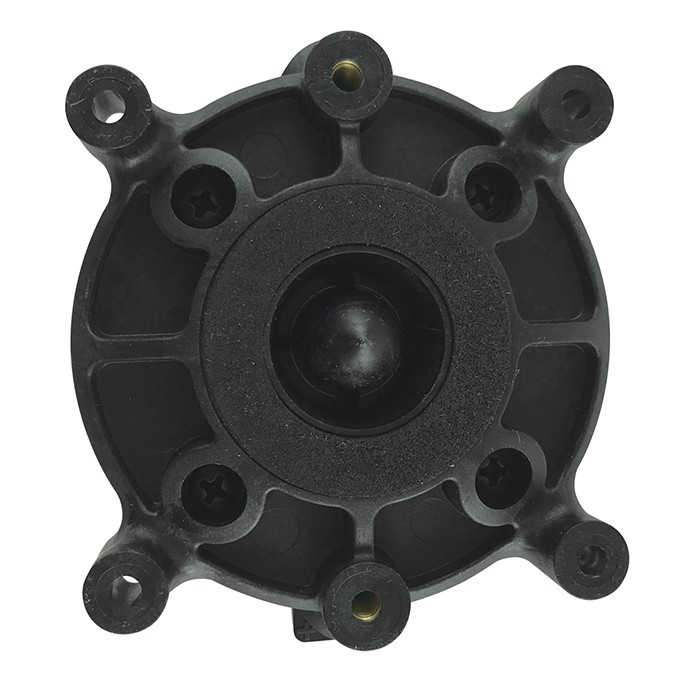

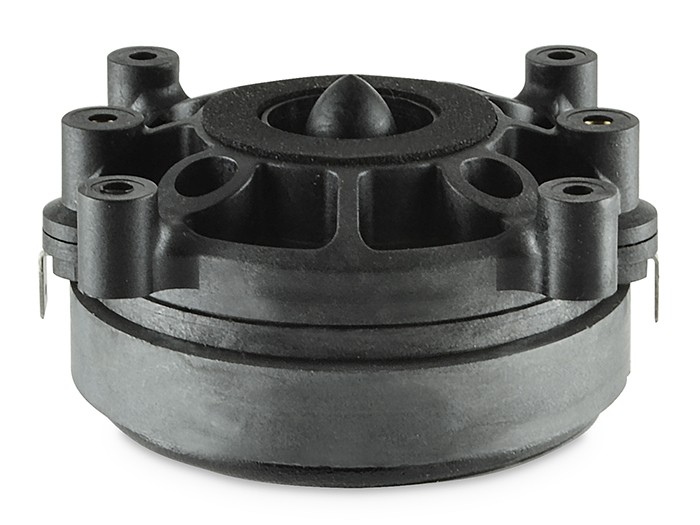

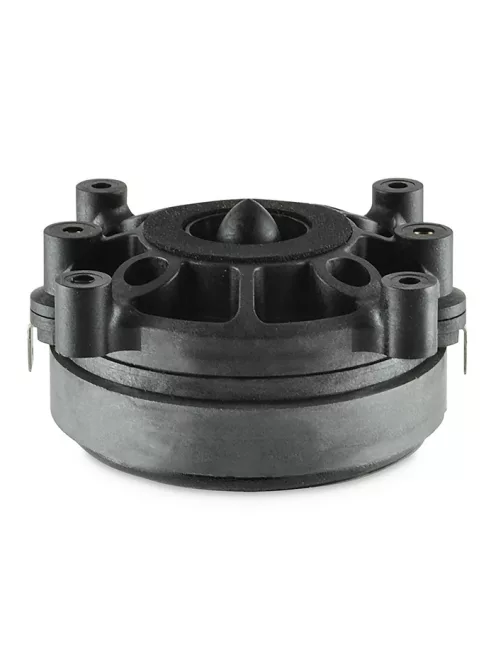

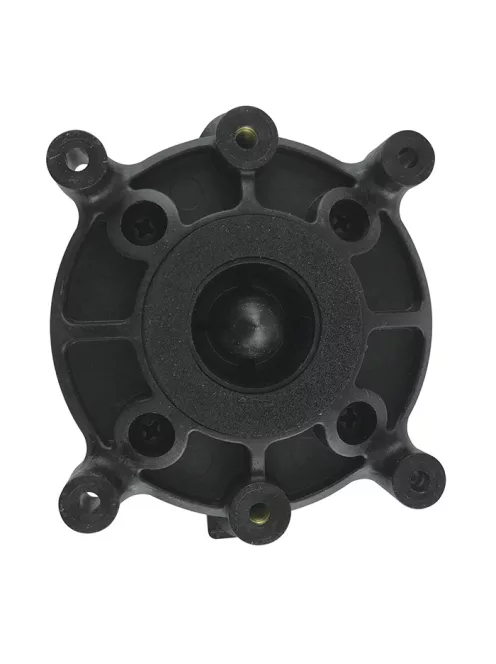

SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
47.89 € excl. VAT

SICA CD 83.26/380 Compression Driver 8Ω

SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
SICA CD 83.26/380 Compression Driver 8Ω
Manufacturer
Sica
Further data
In stock
47.89 € excl. VAT
Details

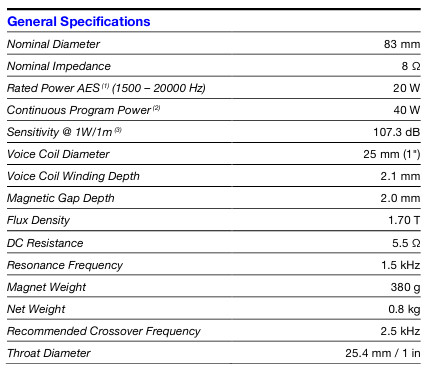

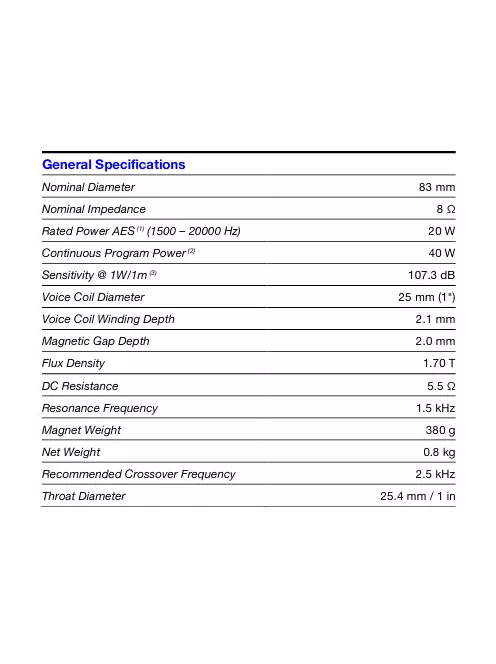

General Specifications
CD Nominal Diameter

83 mm
Nominal Impedance

8 Ω
CD Rated Power AES

20 W
CD Continuous Program Power

40 W
Sensitivity @ 1W/1m

107.3 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

2.1 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.70 T
DC Resistance

5.5 Ω
Resonance Frequency

1.5 KHz
Magnet Weight

380 g
Net Weight

0.8 Kg
Recommended Crossover Frequency

2.5 Khz
Throat Diameter

25.4 mm (1")

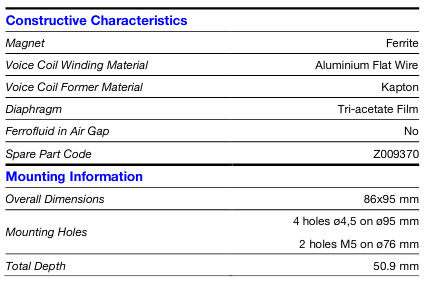

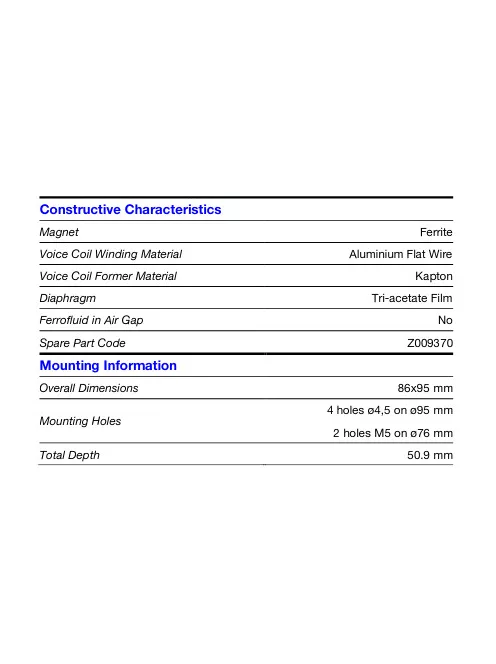

Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

Tri-acetate film
Ferrofluid in Air Gap

No
Spare Part Code

Z009370

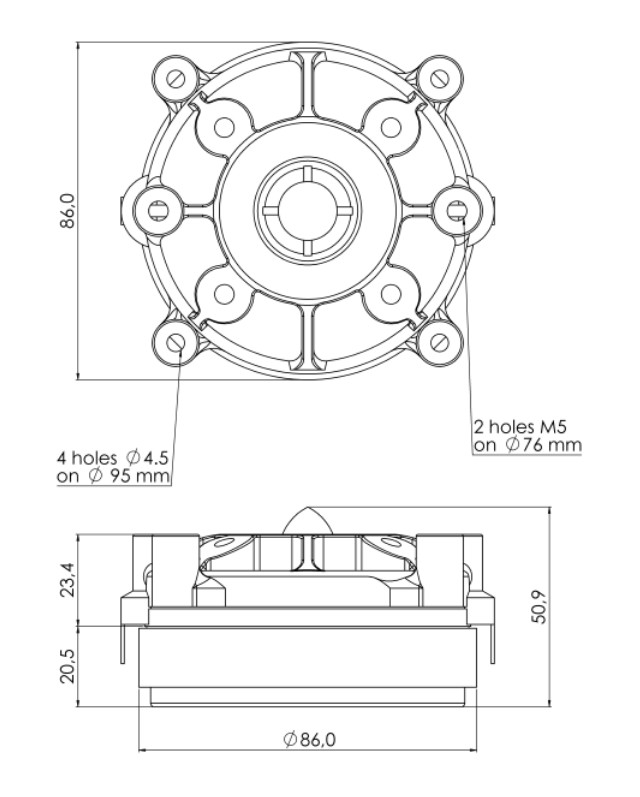

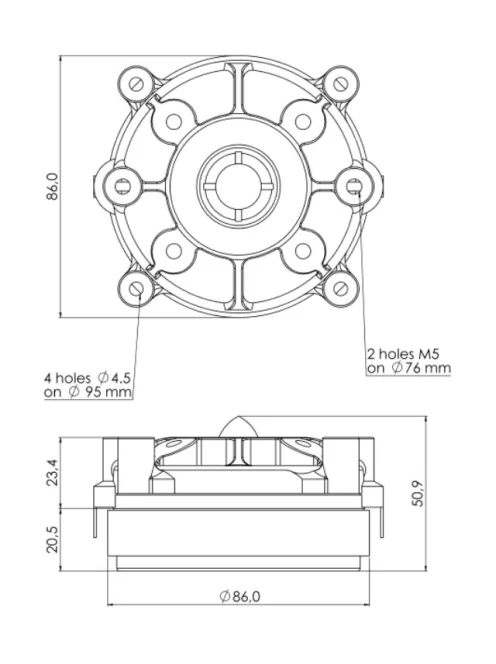

Mounting Information
Overall Diameter

86×95 mm
Mounting Holes

4 holes Ø4.5 on Ø95 mm
Mounting Holes 2

2 holes M5 on Ø76 mm
Total Depth

50.9 mm
Info
Impedance, Z
8
Article No.
SIC-Z009470C
Weight
800 g/db
