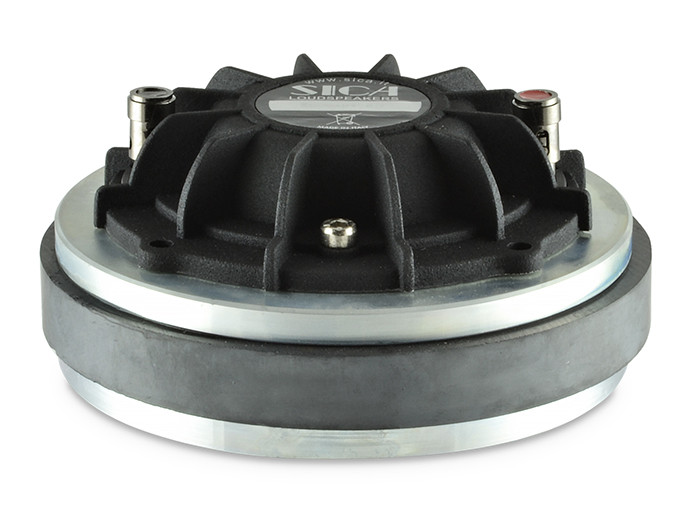

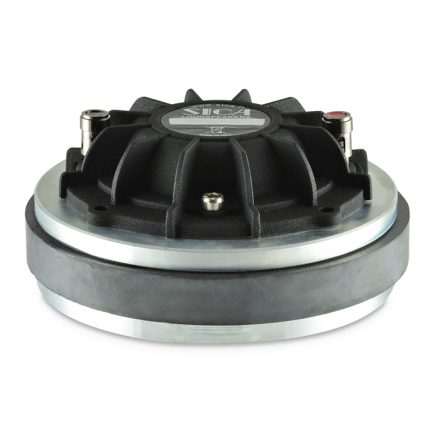

SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
103.33 € excl. VAT

SICA CD 120.44/640 T, 8 Ohm Compression Driver

SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
SICA CD 120.44/640 T, 8 Ohm Compression Driver
Manufacturer
Sica
Further data
In stock
103.33 € excl. VAT
Details

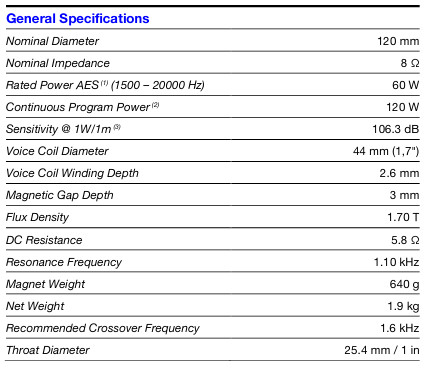

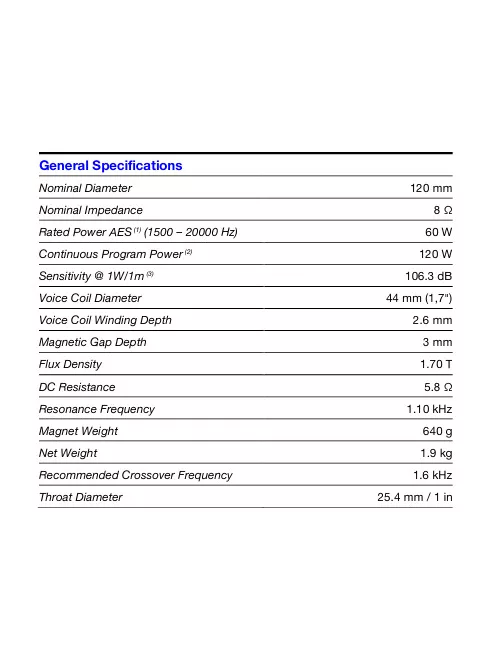

General Specifications
CD Nominal Diameter

120 mm
Nominal Impedance

8 Ω
CD Rated Power AES

60 W
CD Continuous Program Power

120 W
Sensitivity @ 1W/1m

106.3 dB
Voice Coil Diameter

44 mm (1.7")
Voice Coil Winding Depth

2.6 mm
Magnetic Gap Depth

3.0 mm
Flux Density

1.70 T
DC Resistance

5.8 Ω
Resonance Frequency

1.10 kHz
Magnet Weight

640 g
Net Weight

1.9 Kg
Recommended Crossover Frequency

1.6 kHz
Throat Diameter

25.4 mm (1")

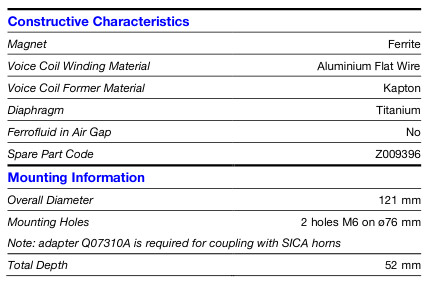

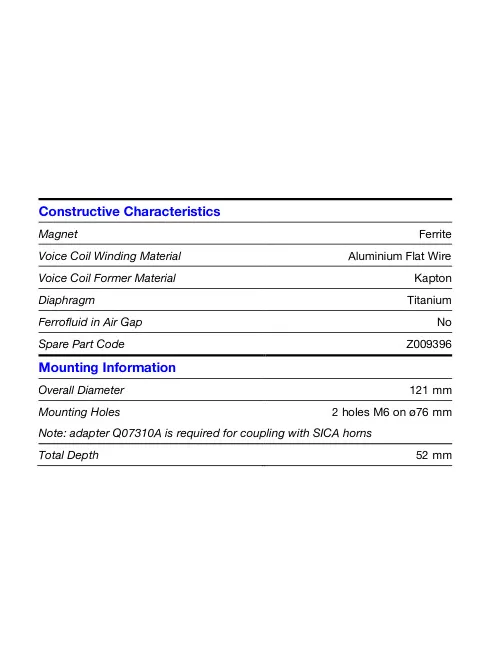

Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

Titanium
Ferrofluid in Air Gap

No
Spare Part Code

Z009396

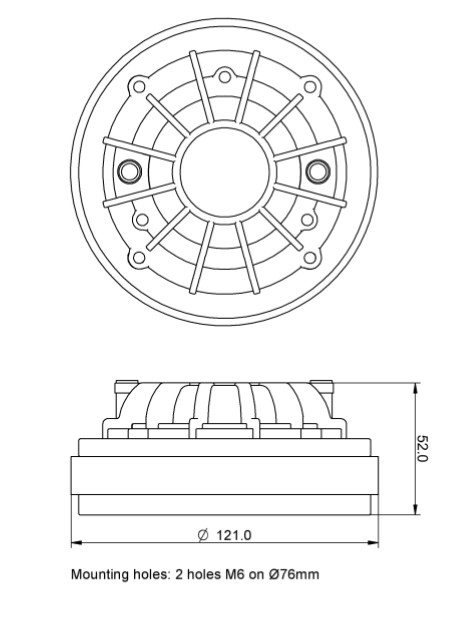

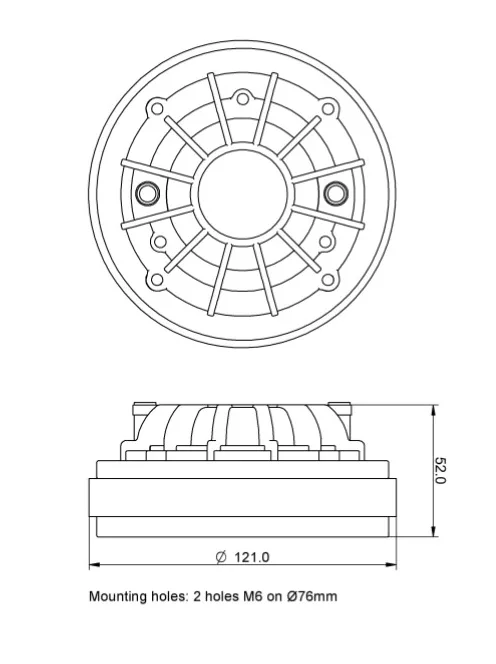

Mounting Information
Overall Diameter

121 mm
Mounting Holes

2 holes M6 on Ø76 mm
Note

adapter Q07320A is required for coupling with Sica Horns
Total Depth

52 mm
Info
Impedance, Z
8
Article No.
SIC-Z009491C
Weight
1.9 kg/db
