SICA CD 95.44/N240 T, 8 Ohm Compression Driver

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Orderable

Details

General Specifications

CD Nominal Diameter	95 mm
Nominal Impedance	8 Ω
CD Rated Power AES	60 W
CD Continuous Program Power	120 W
Sensitivity @ 1W/1m	106.3 dB
Voice Coil Diameter	44 mm (1.7")
Voice Coil Winding Depth	2.6 mm
Magnetic Gap Depth	3.0 mm
Flux Density	2.10 T
DC Resistance	5.8 Ω
Resonance Frequency	0.8 KHz
Magnet Weight	235 g
Net Weight	1.1 kg
Recommended Crossover Frequency	1.6 kHz
Throat Diameter	25.4 mm (1")

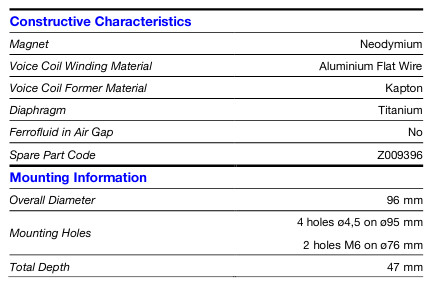

Constructive Characteristics

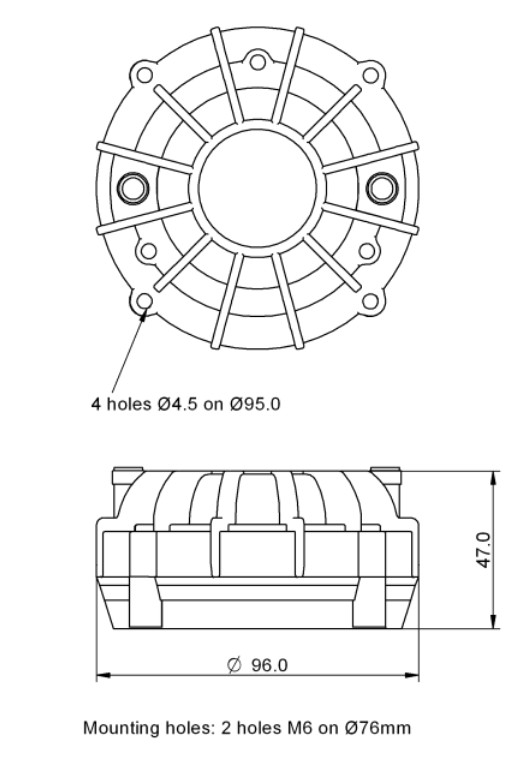

Mounting Information

Info

Impedance, Z

Article No.

SIC-Z009493C

Weight

1.1 kg/db
