SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
224.58 € excl. VAT

SICA CD 105.65/N220 Compression Driver

SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
SICA CD 105.65/N220 Compression Driver
Manufacturer
Sica
Further data
In stock
224.58 € excl. VAT
Details

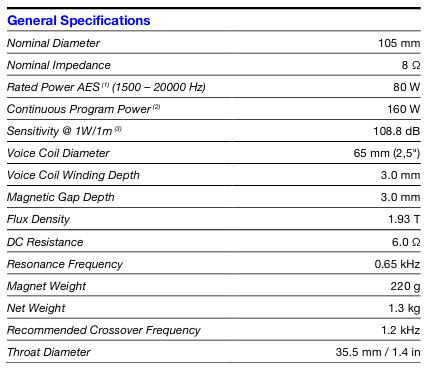

General Specifications
CD Nominal Diameter

105 mm
Nominal Impedance

8 Ω
CD Rated Power AES

80 W

CD Continuous Program Power

160 W
Sensitivity @ 1W/1m

108.8 dB
Voice Coil Diameter

65 mm (2.5")

Voice Coil Winding Depth

3.0 mm
Magnetic Gap Depth

3.0 mm
Flux Density

1.93 T
DC Resistance

6.0 Ω
Resonance Frequency

0.65 KHz
Magnet Weight

220 g
Net Weight

1.3 kg
Recommended Crossover Frequency

1.2 kHz
Throat Diameter

35.5 mm / (1.4")

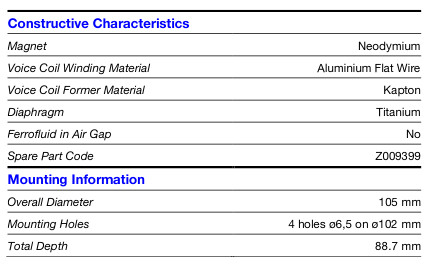

Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

Titanium
Ferrofluid in Air Gap

No
Spare Part Code

Z009399

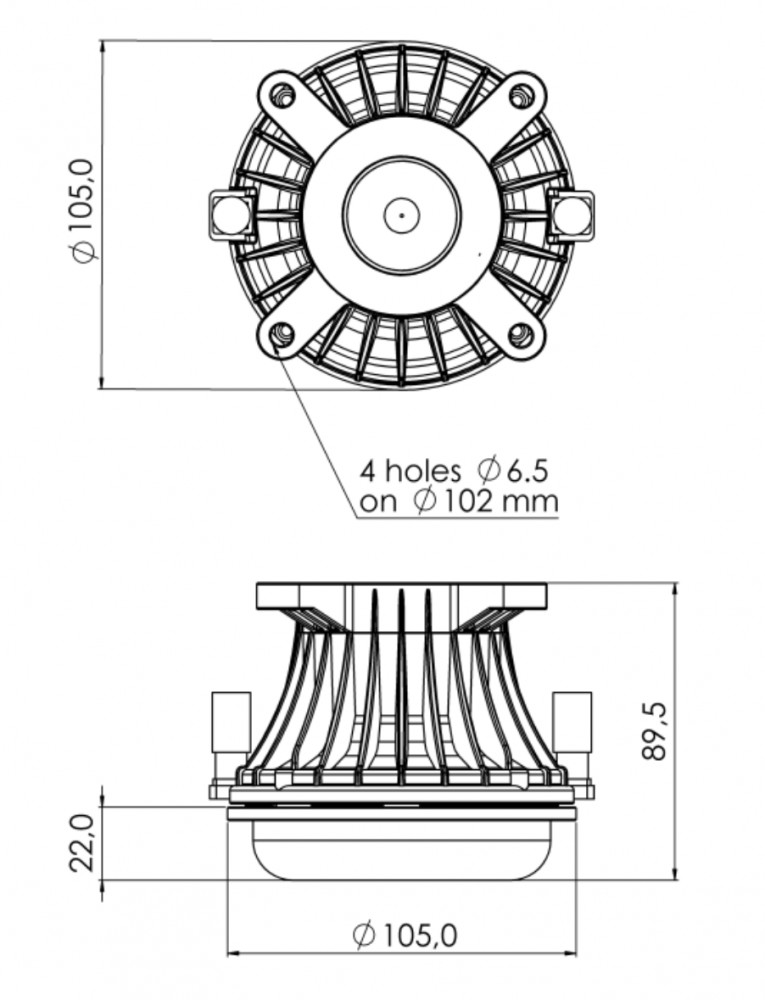

Mounting Information
Overall Diameter

105 mm
Mounting Holes

4 holes Ø6.5 on Ø102 mm
Total Depth

88.7 mm
Info
Impedance, Z
8
Article No.
SIC-Z009497C
Weight
1.3 kg/db
