Sanskrit 10th MKII Small desktop AK4493 Audio DAC

Product description

SMSL Sanskrit 10th anniversary edition, high-end DAC within a professional shape design that uses an anodized CNC aluminum alloy housing. This DAC is designed to take up minimal desktop space without compromising on performance. It supports the 'three display mode' through the built-in digital accelerometer so it automatically switches the orientation of the display.


Highlights

Anodized CNC aluminum alloy housing
Japan Electronics Association Hi-Res Audio certification
Full-featured remote control
Built-in digital accelerometer


Product details

SMSL Sanskrit 10th MKII Small desktop AK4493 Audio DAC



Ultra-tiny shape design and supports a variety of placement ways. The second-generation XMOS solution supports the sampling rate up to 32bit/384KHz and DSD256. The two pieces of Japanese ultra-low phase noise clocks, greatly reducing the system JITTER and the AKM's new AK4493 chip, and carefully adjusted it to an unprecedented 0.0002%. The built-in gravity sensor automatically switches the screen. Built-in high-performance power filtering system, so that it can achieve the best performance using only one USB interface for power supply.



Package Contents

1 x DAC Sanskrit 10th

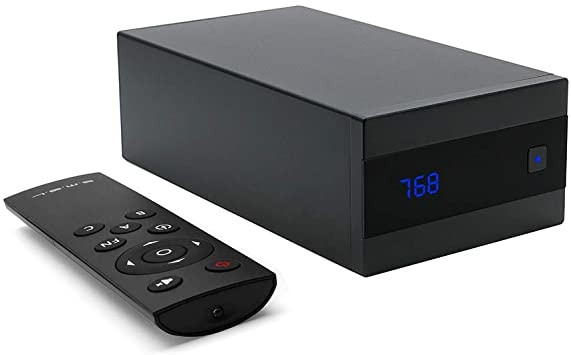

1 x Remote control
1 x USB-A to Micro-USB cable 1.1 m
8 x Silicone feet



Technical Specifications

DAC chip: AKM AK4493
THD + N: Unbalanced: 0.0002%
SNR: Unbalanced: 120dB
Dynamic range: Line: 118dB
Line output level: 2Vrms
Bit depth: USB 1 bit ~ 32 bit - Optical/coaxial 16 bit ~ 24 bit
Sampling rates: USB PCM 44.1 ~ 768 kHz / USB DSD 2.28224 ~ 11.2896 MHz / Optical/coaxial 32 kHz ~ 192 kHz

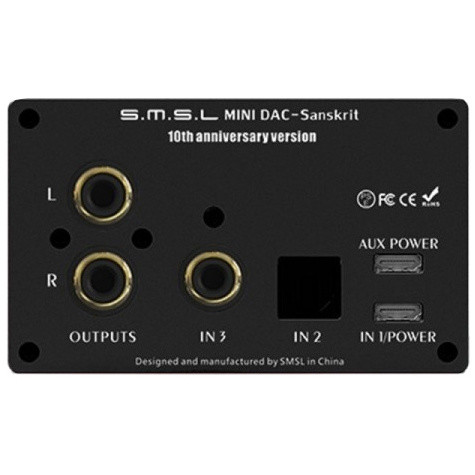

Inputs: USB, Optical, Coaxial
Outputs: RCA
Power consumption: 2 W
Standby power: <0.1 W
Weight: 320 g
Size: 75 x 45 x 144 (WxHxD)
Power supply: Micro-USB 5 VDC (not included)
