AA-AB32511 2x500W IRS2092 4 Ohm Class D Audio Amplifier Board

If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It employs IR's High Voltage, high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227. Two 55 to 65 VDC power supplies are required for operation. This amplifier board supports mono amplification by using one channel half bridge topology.

Highlights

• Self-oscillating half-bridge topology
• Capable of 2x500W RMS output @ 4 Ohm
• Requires 55 to 65 VDC power supply

Product details

Sure Electronics AA-AB32511 2x500W IRS2092 4 Ohm Class D Audio Amplifier Board

If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It employs IR's High Voltage, high performance class D audio amplifier driver IRS2092SPBF

and 200V Single N-Channel HEXFET Power MOSFET IRFB4227. Two 55 to 65 VDC power supplies are required for operation. This amplifier board supports mono amplification by using one channel half bridge topology.

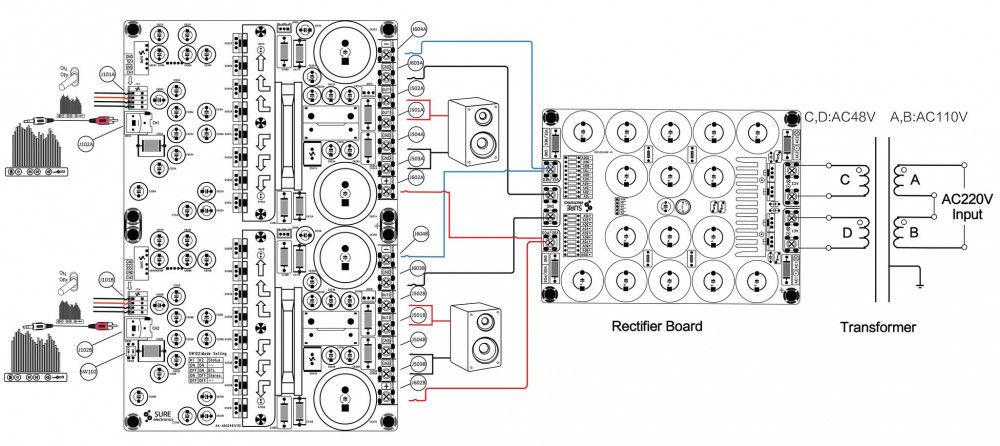

Two 55 to 65 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response. Hear your music like never before with 500 Watts per channel of audiophile-grade Tripath Class-T technology. Amp includes a quiet running fan to keep things cool.
