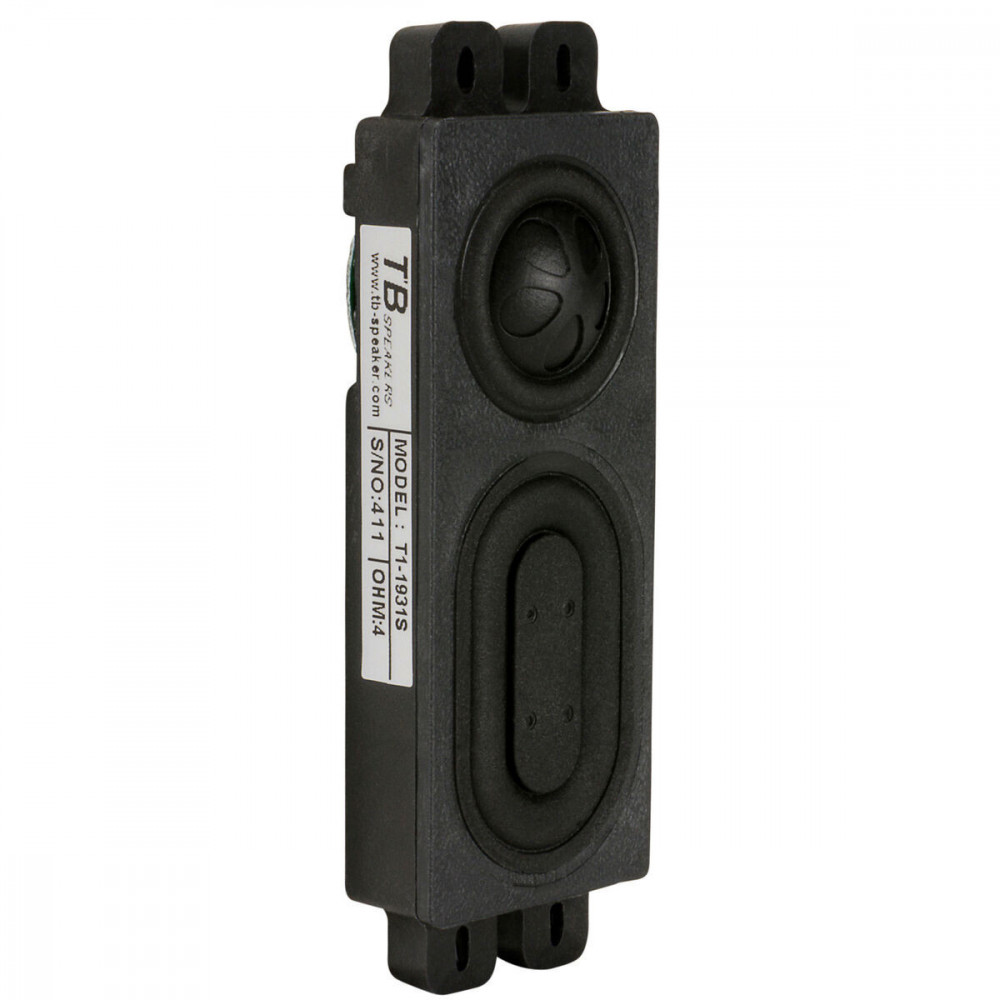

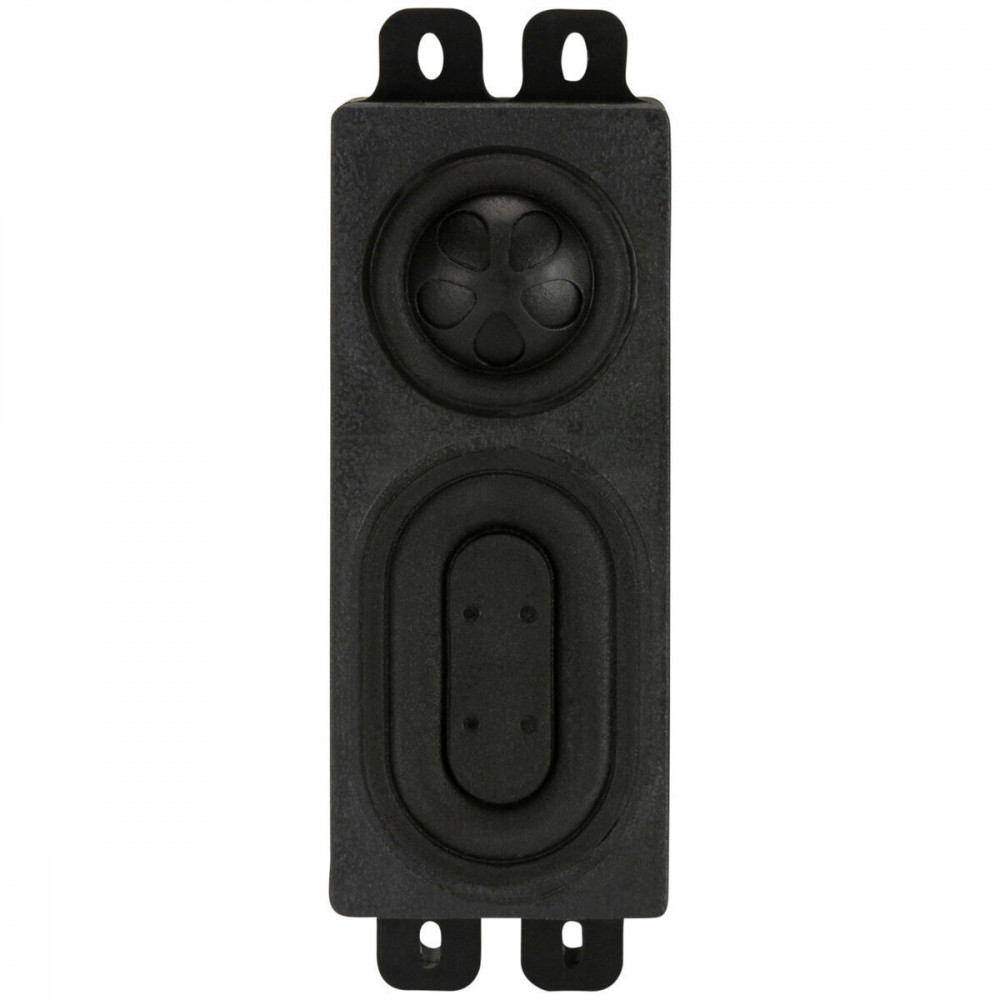

T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
26.77 € excl. VAT

T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module

T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module
TangBand
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
TangBand
Further data
Orderable
26.77 € excl. VAT
Details
Woofer TypePassive Radiator
Nominal Diameter: 3-1/2" x 1-7/16"
Power Handling (RMS): 2 Watts
Power Handling (max): 4 Watts
Impedance (Z): 4 Ohms
Sensitivity: 76dB 2.83V/1m

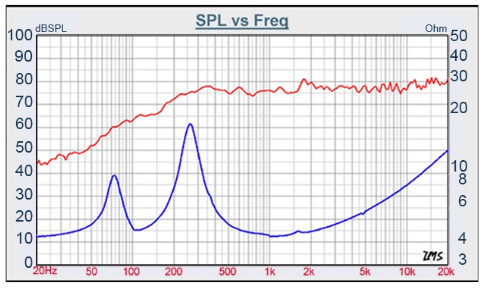

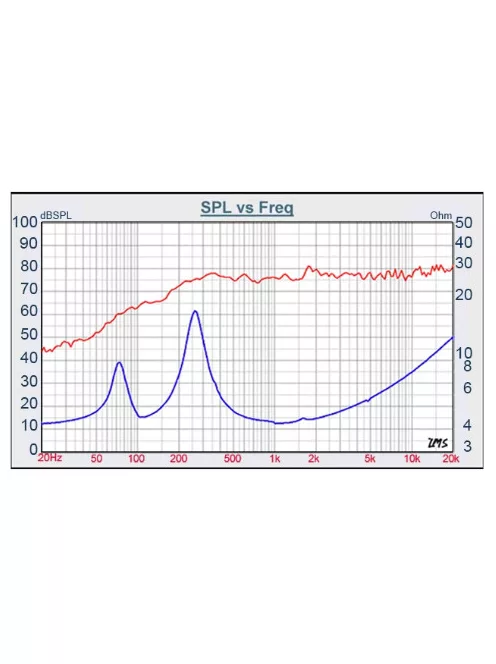

Frequency Response: 105 to 20,000Hz
Resonant Frequency (Fs): 105Hz
Cone / Diaphragm Material: Poly Composite
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

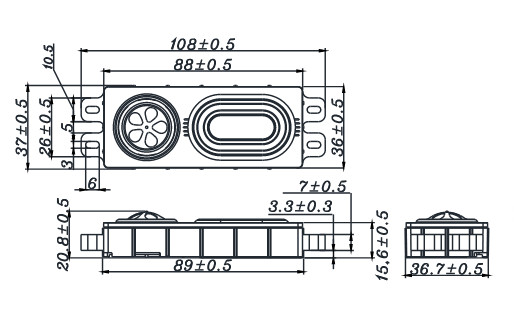

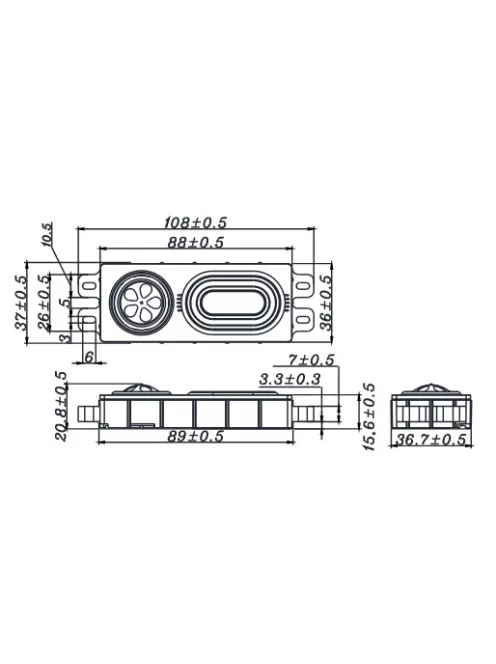

Overall Outside Diameter: 3.46" x 1.41"; With mounting tabs: 4.25"
Overall Depth: 0.76"
# Mounting Holes: 4
Info
Article No.
TAN-T1-1931S
