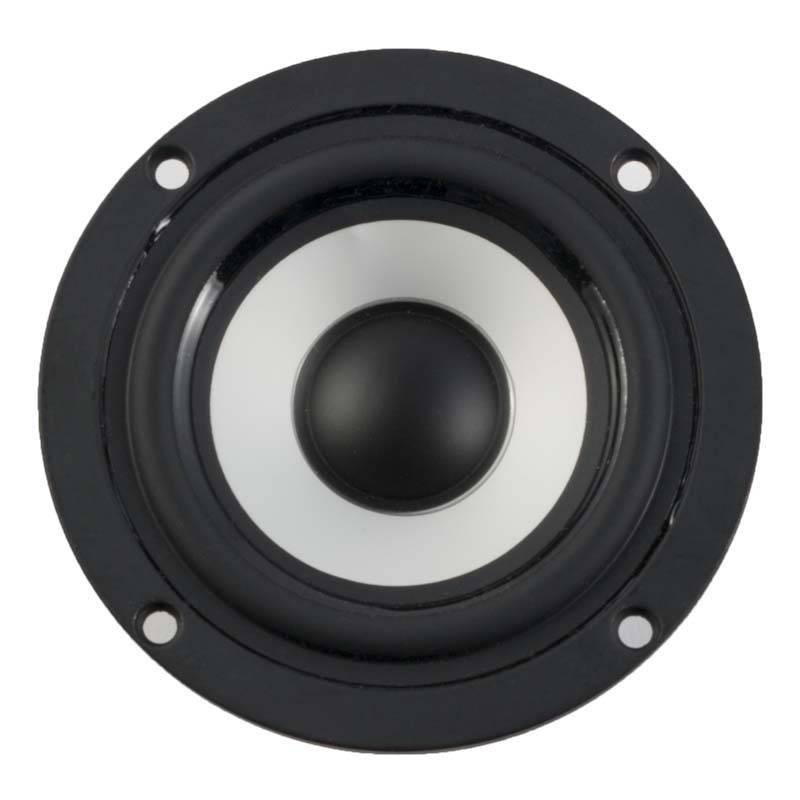

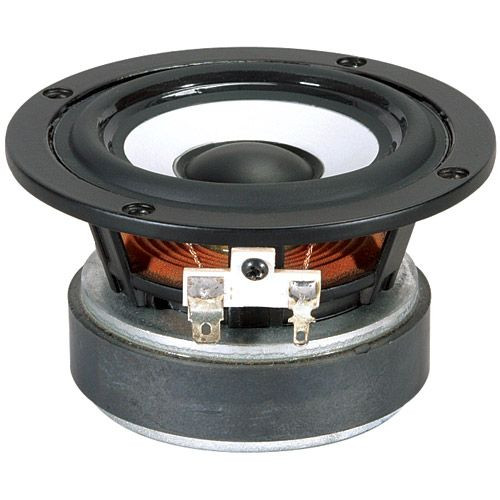

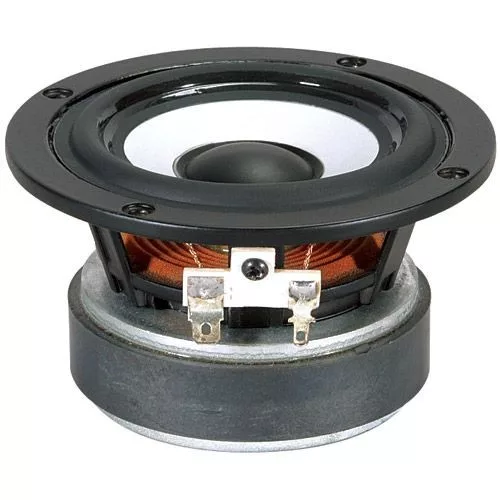

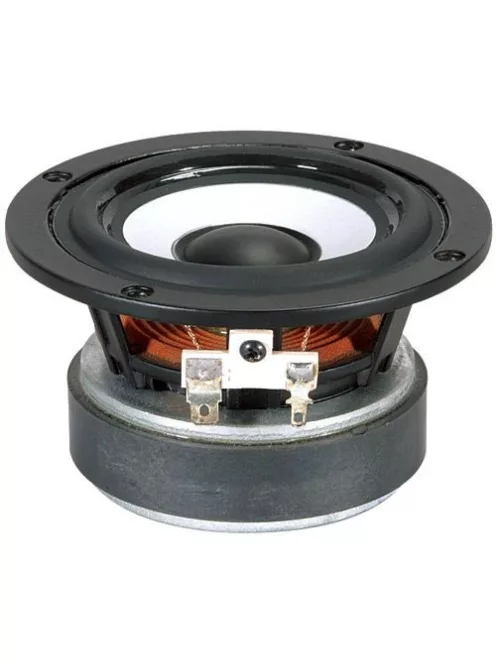

W3-315E 3" Aluminum/Magnesium Full Range Driver

37.30 € excl. VAT

W3-315E 3" Aluminum/Magnesium Full Range Driver

Name: W3-315E 3" Aluminum/Magnesium Full Range Driver
Brand: TangBand
SKU: TAN-W3-315E
Price: 47.37 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Orderable

37.30 € excl. VAT

Details

Woofer TypeFull-range

Nominal Diameter: 3"

Power Handling (RMS): 10 Watts

Power Handling (max): 20 Watts

Impedance (Z): 8 ohms

Sensitivity: 87 dB 1W/1m

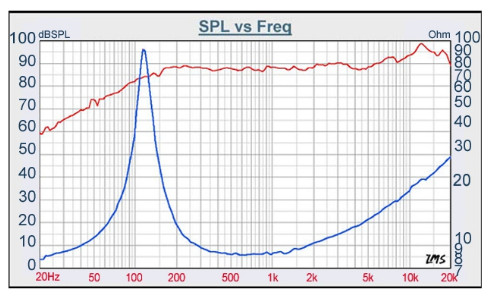

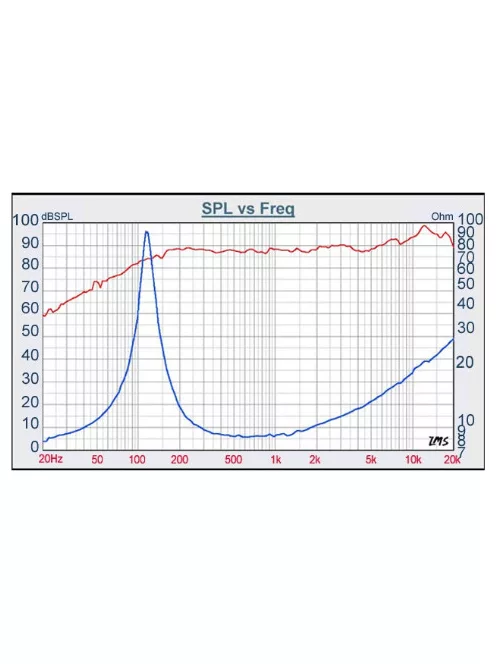

Frequency Response: 100 to 20,000 Hz

Voice Coil Diameter: 0.8"

DC Resistance (Re): 6.6 ohms

Voice Coil Inductance (Le): 0.2 mH

Resonant Frequency (Fs): 100 Hz

Mechanical Q (Qms): 5.51

Electromagnetic Q (Qes): 0.57

Total Q (Qts): 0.52

Diaphragm Mass Inc. Airload (Mms): 2g

Mechanical Compliance of Suspension (Cms): 1.15 mm/N

Surface Area of Cone (Sd): 32 cm²

BL Product (BL): 3.89 Tm

Compliance Equivalent Volume (Vas): 0.06 ft.³

Maximum Linear Excursion (Xmax): 1.25 mm

Cone / Diaphragm Material: Aluminum / Magnesium

Surround Material: Santoprene®

Voice Coil Wire MaterialCCA

Voice Coil FormerKapton® / Polyimide

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite

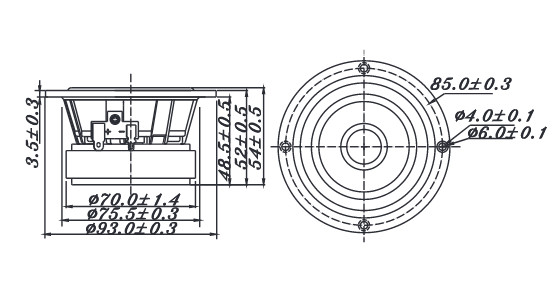

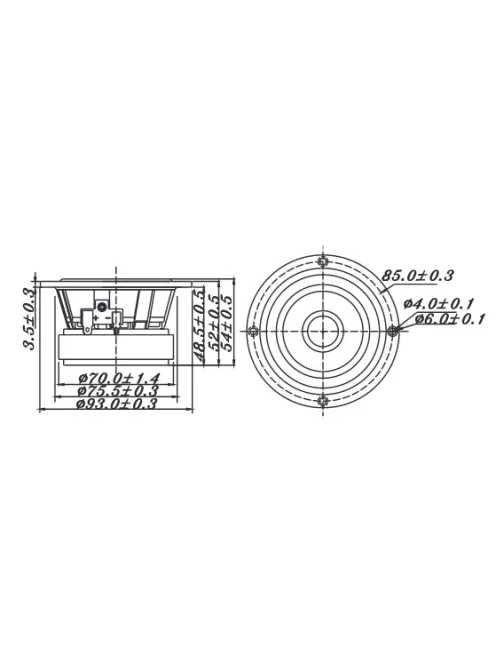

Overall Outside Diameter: 3.66"

Overall Depth: 2.13"

Baffle Cutout Diameter: 2.98"

# Mounting Holes: 4
