W4-1320SJ 4" Bamboo Cone Driver

Name: W4-1320SJ 4" Bamboo Cone Driver
Brand: TangBand
SKU: TAN-W4-1320SJ
Price: 129.29 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Orderable

101.80 € excl. VAT

Details

Woofer TypeFull-range

Nominal Diameter: 4"

Power Handling (RMS): 25 Watts

Power Handling (max): 50 Watts

Impedance (Z): 8 ohms

Sensitivity: 89 dB 1W/1m

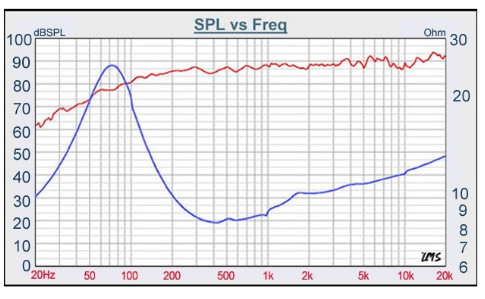

Frequency Response: 75 to 20,000 Hz

Voice Coil Diameter: 1"

DC Resistance (Re): 6.8 ohms

Voice Coil Inductance (Le): 0.01 mH

Resonant Frequency (Fs): 75 Hz

Mechanical Q (Qms): 1.29

Electromagnetic Q (Qes): 0.49

Total Q (Qts): 0.35

Diaphragm Mass Inc. Airload (Mms): 3.49g

BL Product (BL): 4.7 Tm

Compliance Equivalent Volume (Vas): 0.21 ft.³

Maximum Linear Excursion (Xmax): 3 mm

Cone / Diaphragm Material: Bamboo Fiber / Paper

Surround Material: Rubber

Basket / Frame Material: Cast Aluminum

Magnet Material: Neodymium

Shielded: Yes

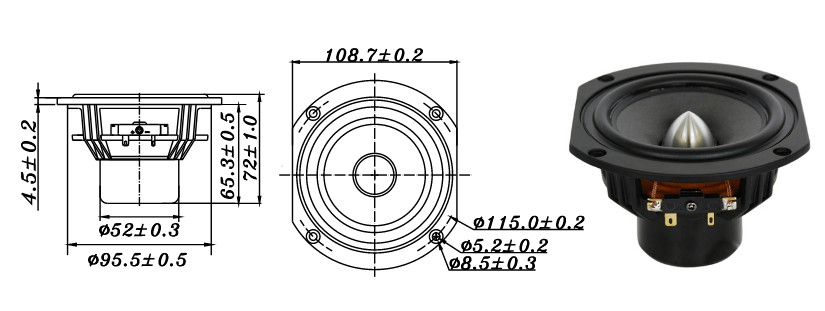

Overall Outside Diameter: 4.28"

Overall Depth: 2.63"

Baffle Cutout Diameter: 3.7"

# Mounting Holes: 4

Info

Article No.

TAN-W4-1320SJ
