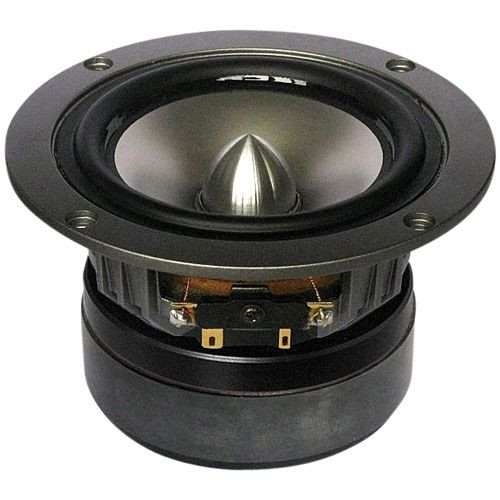

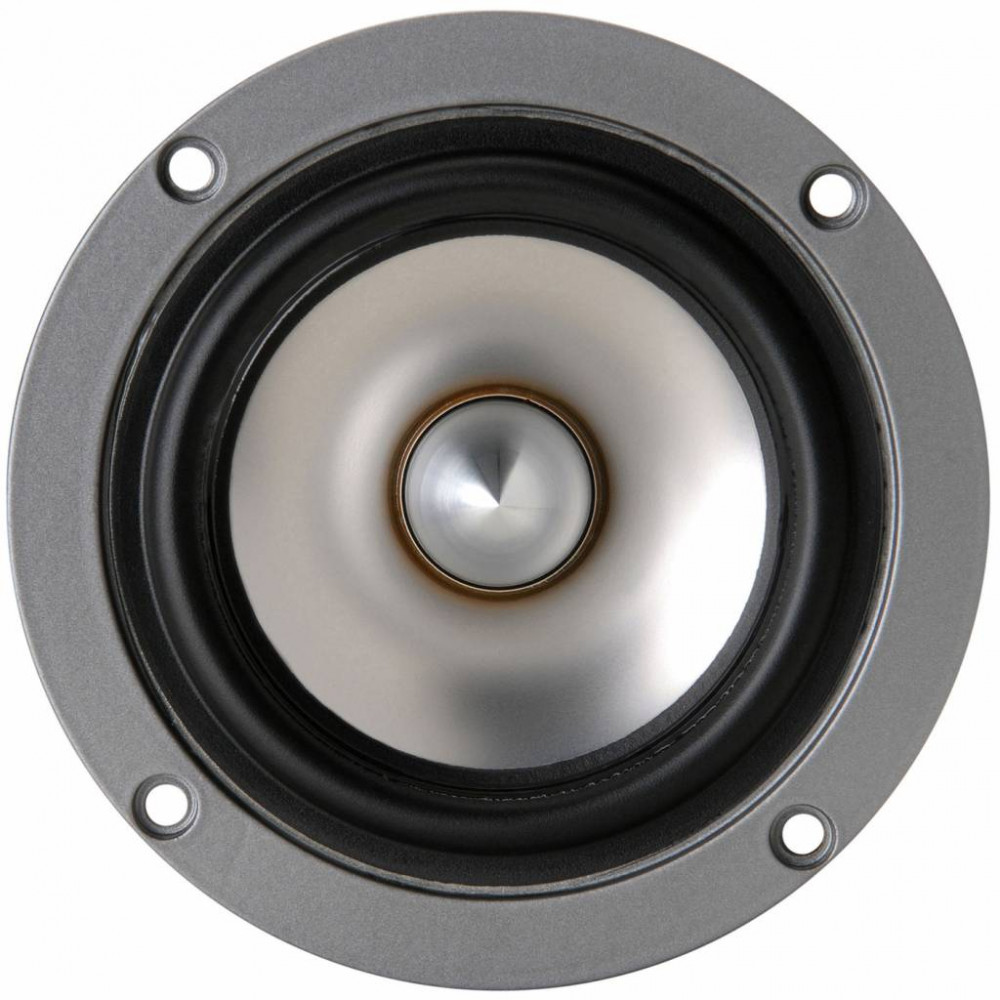

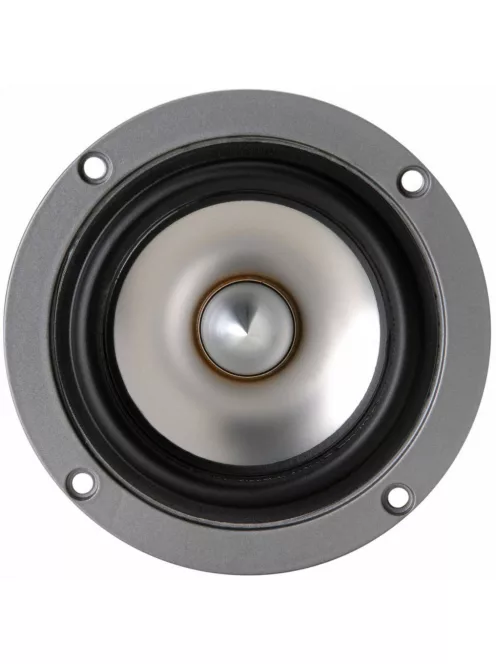

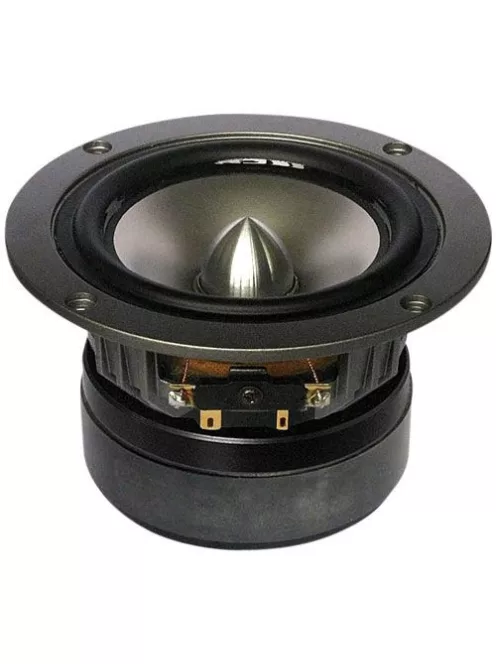

W4-1337SDF 4" Titanium Full Range Speaker

75.23 € excl. VAT

W4-1337SDF 4" Titanium Full Range Speaker

Name: W4-1337SDF 4" Titanium Full Range Speaker
Brand: TangBand
SKU: TAN-W4-1337SDF
Price: 95.55 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Orderable

75.23 € excl. VAT

Details

Woofer TypeFull-range

Nominal Diameter: 4"

Power Handling (RMS): 25 Watts

Power Handling (max): 50 Watts

Impedance (Z): 8 ohms

Sensitivity: 89 dB 1W/1m

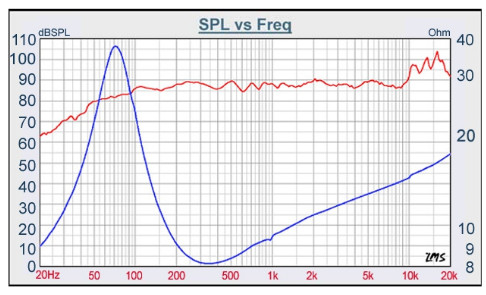

Frequency Response: 70 to 20,000 Hz

Voice Coil Diameter: 1"

Magnet Weight18.6 oz.

DC Resistance (Re): 6.3 ohms

Voice Coil Inductance (Le): 0.03 mH

Resonant Frequency (Fs): 70 Hz

Mechanical Q (Qms): 2.04

Electromagnetic Q (Qes): 0.4

Total Q (Qts): 0.34

Diaphragm Mass Inc. Airload (Mms): 3.99g

Mechanical Compliance of Suspension (Cms): 1.21 mm/N

Surface Area of Cone (Sd): 57 cm²

BL Product (BL): 5.32 Tm

Compliance Equivalent Volume (Vas): 0.2 ft.³

Maximum Linear Excursion (Xmax): 2.5 mm

Cone / Diaphragm Material: Titanium

Surround Material: Santoprene®

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite

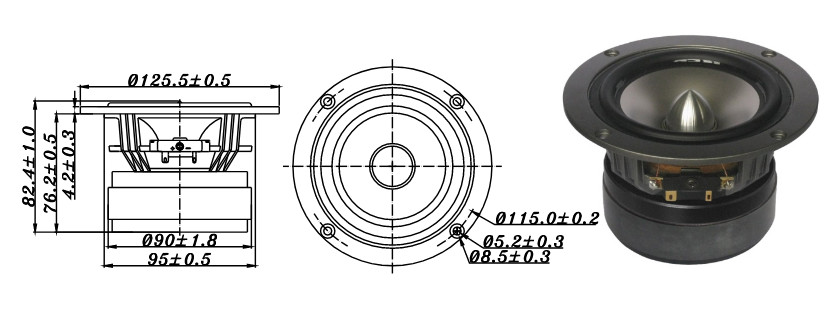

Overall Outside Diameter: 4.94"

Overall Depth: 3.24"

Baffle Cutout Diameter: 3.74"

# Mounting Holes: 4
