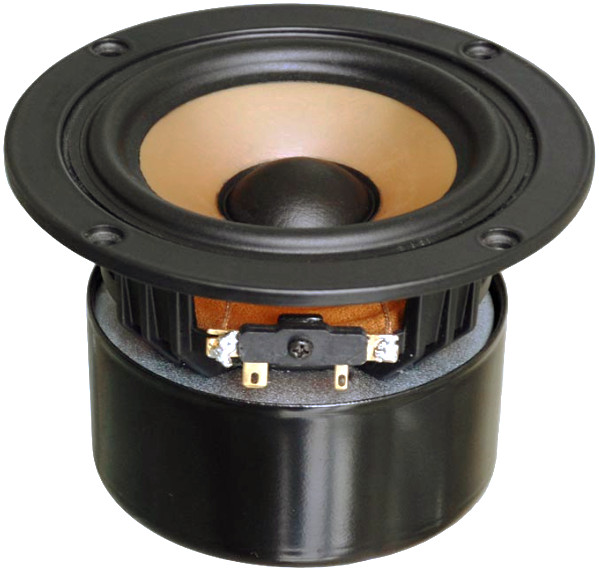

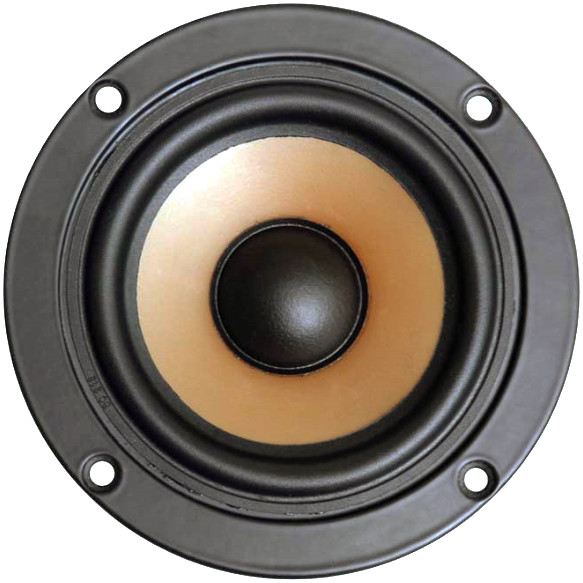

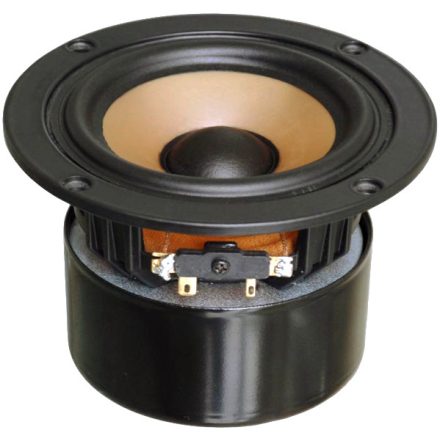

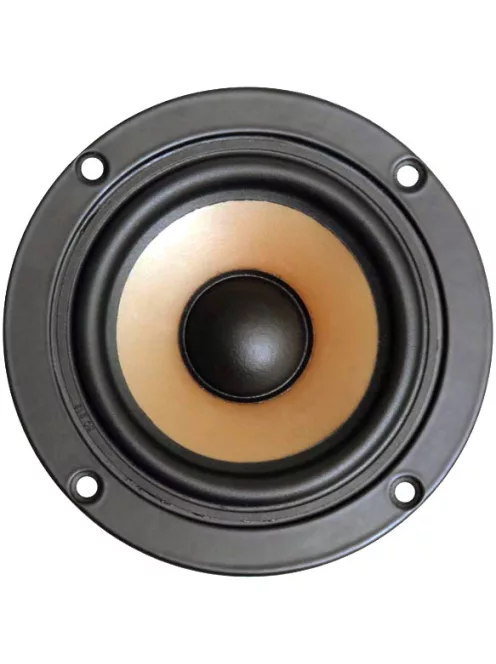

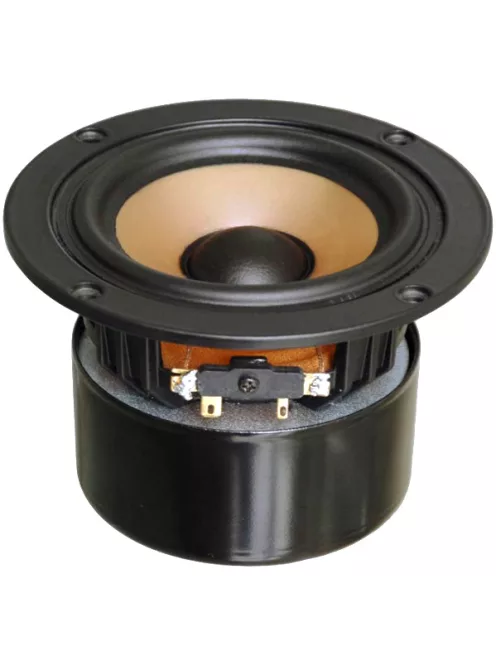

W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
58.15 € excl. VAT

W4-656SC 4" Shielded Driver

W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
W4-656SC 4" Shielded Driver
TangBand
Details
Shipping within (if available from supplier)
4-5 working days
Manufacturer
TangBand
Further data
Orderable
58.15 € excl. VAT
Details
Resonant frequency fS 65 Hz
Electrical Q QES 0.39
Mechanical Q QMS 2.21
Total Q factor QTS 0.33
Suspension equivalent air volume VAS 6.32 litres
DC resistance RE 6 Ω
Maximum impedance Zmax 40.0 Ω
Voice coil inductance LE 0.126 mH
Force factor B·l 5.24 T·m
Suspension mechanical resistance RMS 0.8 N·s/m
Suspension mechanical compliance CMS 1370 µm/N
Moving mass MMD 4 g
Moving mass (including airload) MMS 4.36 g
Surface of the diaphragm SD 57 cm²
Effective diaphragm diameter Ø 8.5 cm
Maximum linear excursion Xmax ± 3.4 mm
Displacement volume at Xmax VD 19.4 cm³
Efficiency η₀ 0.43 %
Efficiency bandwidth product EBP 166
Info
Article No.
TAN-W4-656SC
