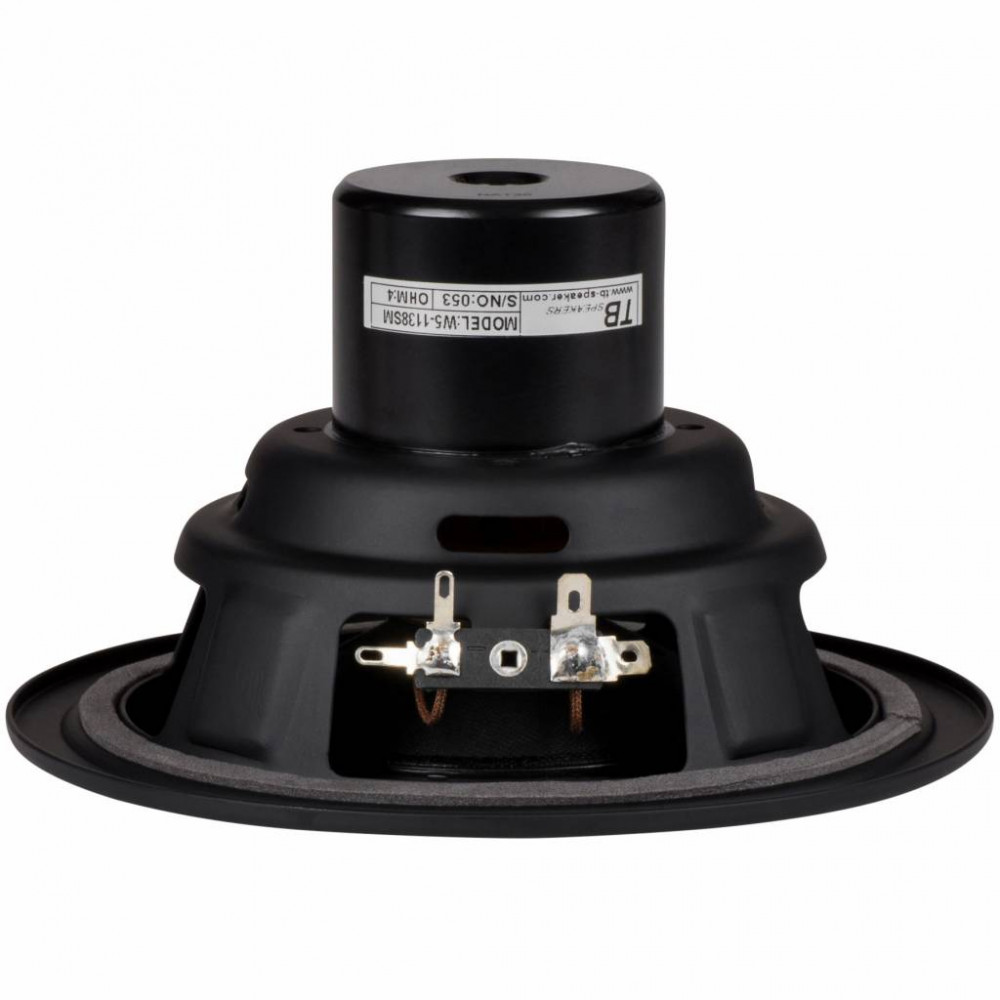

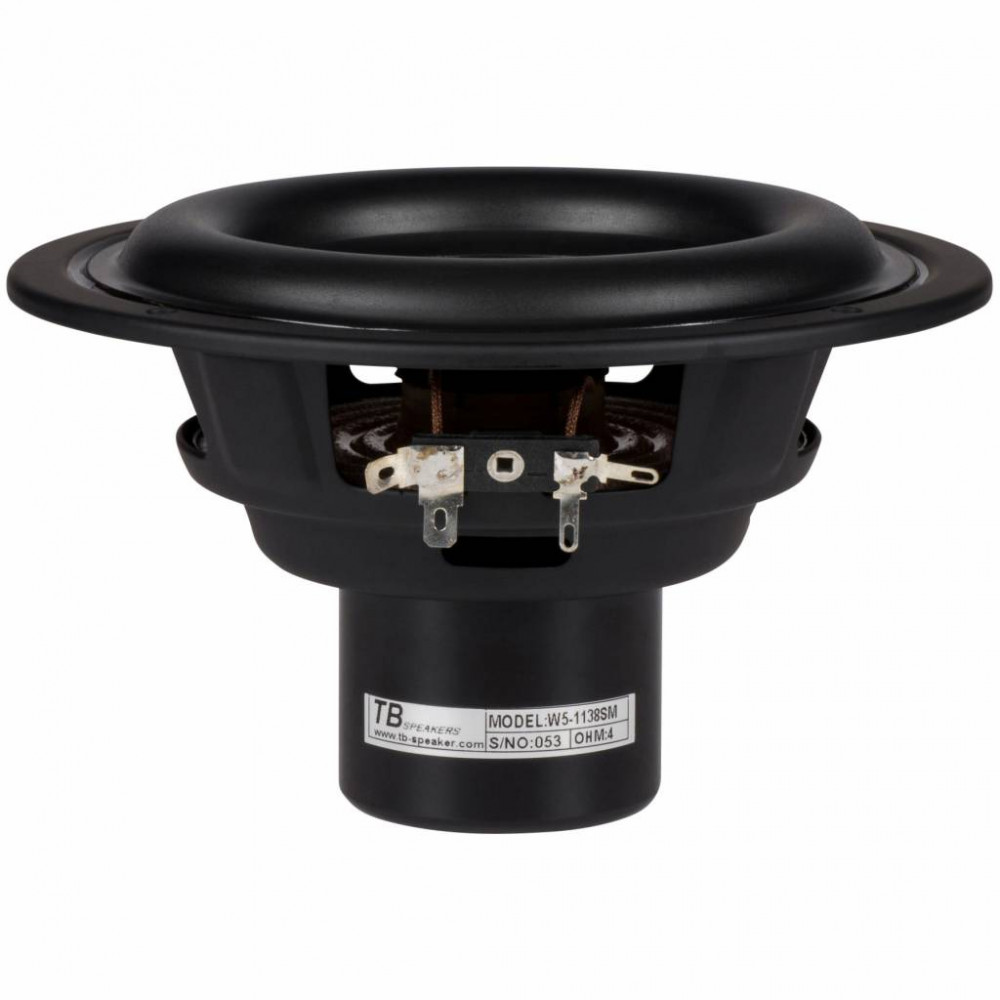

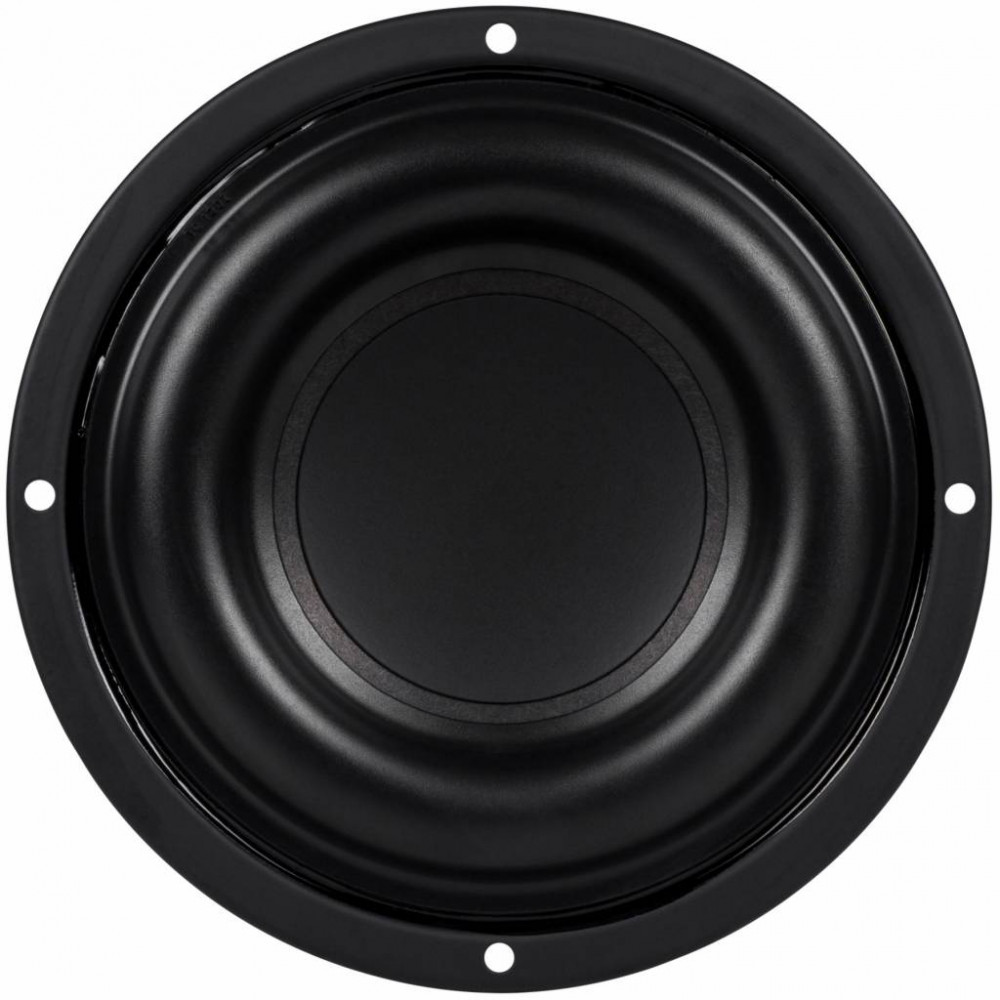

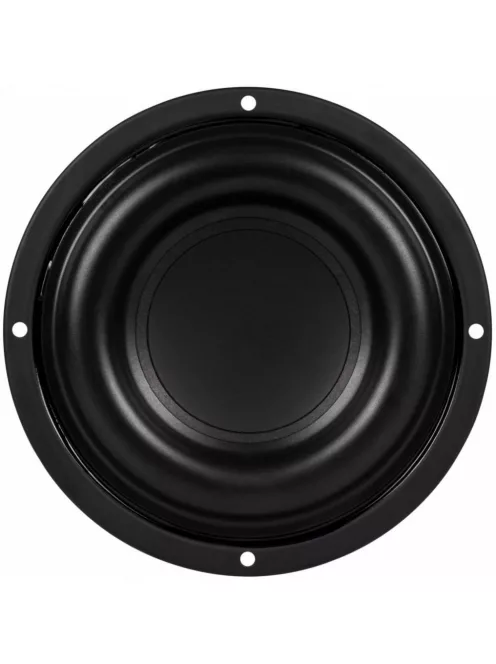

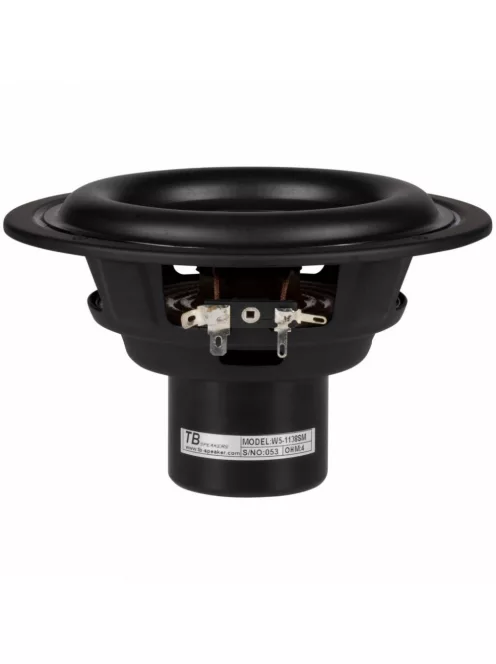

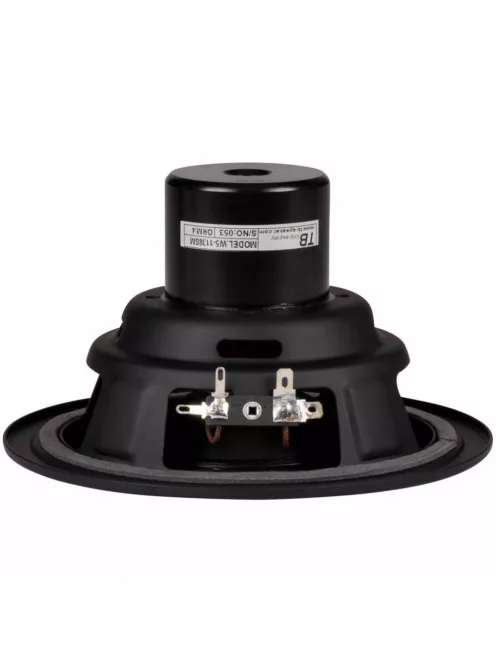

W5-1138SM 5-1/4" Neodymium Subwoofer

126.47 € excl. VAT

W5-1138SM 5-1/4" Neodymium Subwoofer

Name: W5-1138SM 5-1/4" Neodymium Subwoofer
Brand: TangBand
SKU: TAN-W5-1138SM
Price: 160.62 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Orderable

126.47 € excl. VAT

Details

Woofer TypeSubwoofer

Nominal Diameter: 5-1/4"

Power Handling (RMS): 40 Watts

Power Handling (max): 80 Watts

Impedance (Z): 4 ohms

Sensitivity: 82 dB 1W/1m

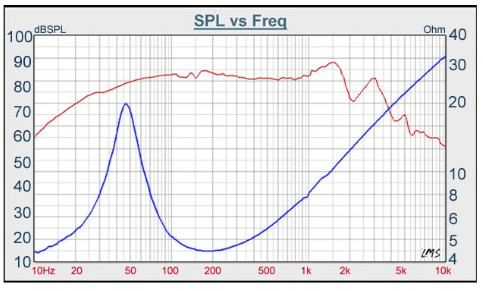

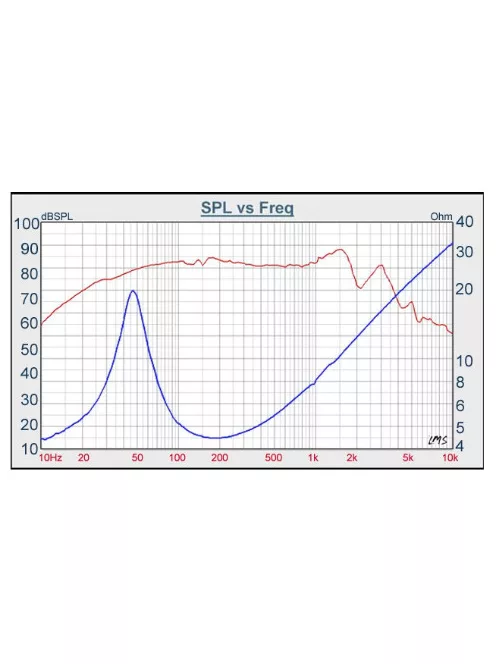

Frequency Response: 45 to 1,500 Hz

Voice Coil Diameter: 1.26"

DC Resistance (Re): 3.4 ohms

Voice Coil Inductance (Le): 1.15 mH

Resonant Frequency (Fs): 45 Hz

Mechanical Q (Qms): 2.83

Electromagnetic Q (Qes): 0.58

Total Q (Qts): 0.48

Diaphragm Mass Inc. Airload (Mms): 24.95g

Mechanical Compliance of Suspension (Cms): 0.49 mm/N

Surface Area of Cone (Sd): 94 cm²

BL Product (BL): 6.51 Tm

Compliance Equivalent Volume (Vas): 0.21 ft.³

Maximum Linear Excursion (Xmax): 9.25 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Voice Coil Wire MaterialCopper

Voice Coil FormerAluminum

Basket / Frame Material: Steel

Magnet Material: Neodymium

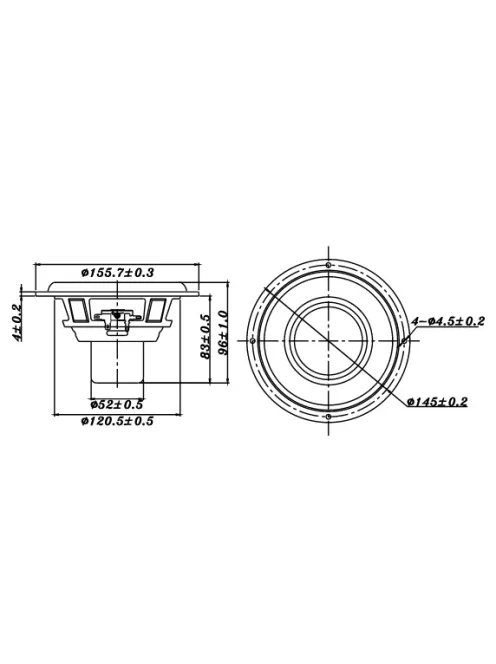

Overall Outside Diameter: 6.13"

Overall Depth: 3.78"

Baffle Cutout Diameter: 4.74"

Bolt Circle Diameter5.7"

# Mounting Holes: 4
